Solar Hybrid Heat Pump Water Heater

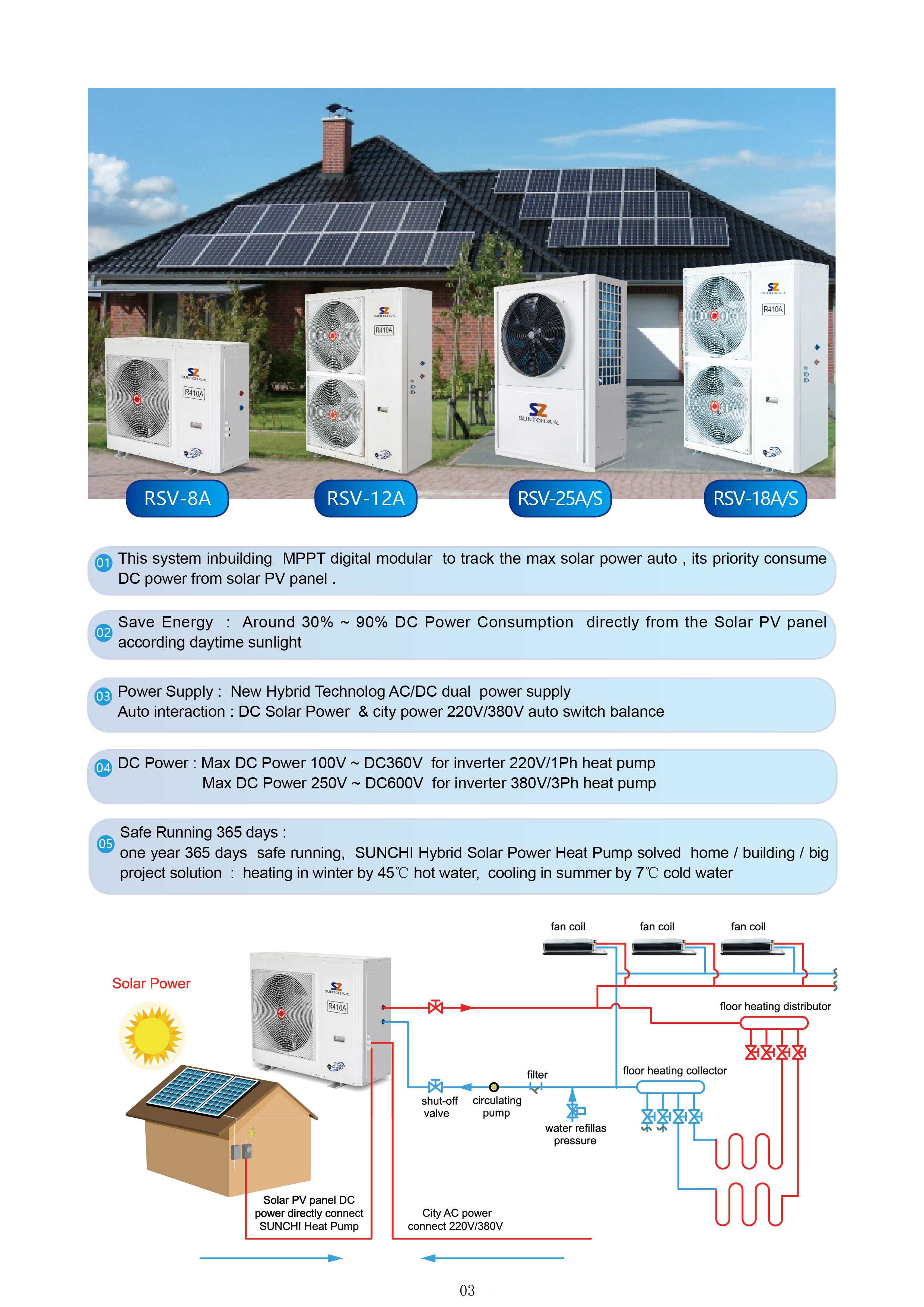

This hybrid water heater uses solar power and a DC inverter heat pump to heat or cool rooms. It maximizes solar power as the primary heating source by integrating a solar PV panel system.
Technical Specifications
Overview
Solar Hybrid Heat Pump Technology
This hybrid DC inverter heat pump system utilizes advanced MPPT digital technology to prioritize solar PV energy, significantly reducing dependency on grid power. It provides a versatile solution for year-round climate control, capable of delivering heating in winter and cooling in summer. Designed for durability and efficiency, the system offers high COP performance and integrates seamlessly with existing home energy setups.
Performance
Key Performance Metrics
7 ratio
COP (Standard Condition)
45 °C
Heating Output Temperature
7 °C
Cooling Output Temperature
Technical Specifications
Power Compatibility
- AC/DC dual power supply
- 1-Phase 220V/50-60Hz
- 3-Phase 380V
- 100V-360V DC input (for 1Ph models)
- 250V-600V DC input (for 3Ph models)
Model Capacity Data
| Model | Heating Capacity (kW) | Rated Power Consumption (W) |
|---|---|---|
| RSV-8A | 9.3 | 2,200 |
| RSV-12A | 14.5 | 3,400 |
Features
- Key Advantages
- MPPT solar trackingAuto city power balanceFood-grade stainless liner10+ year service lifeEnergy saving (30-80%)
Applications
Installation Sites
- Residential Villas
- Beauty Salons
- Commercial Units
- Balconies
- Roofs
- Bathrooms/Kitchens
