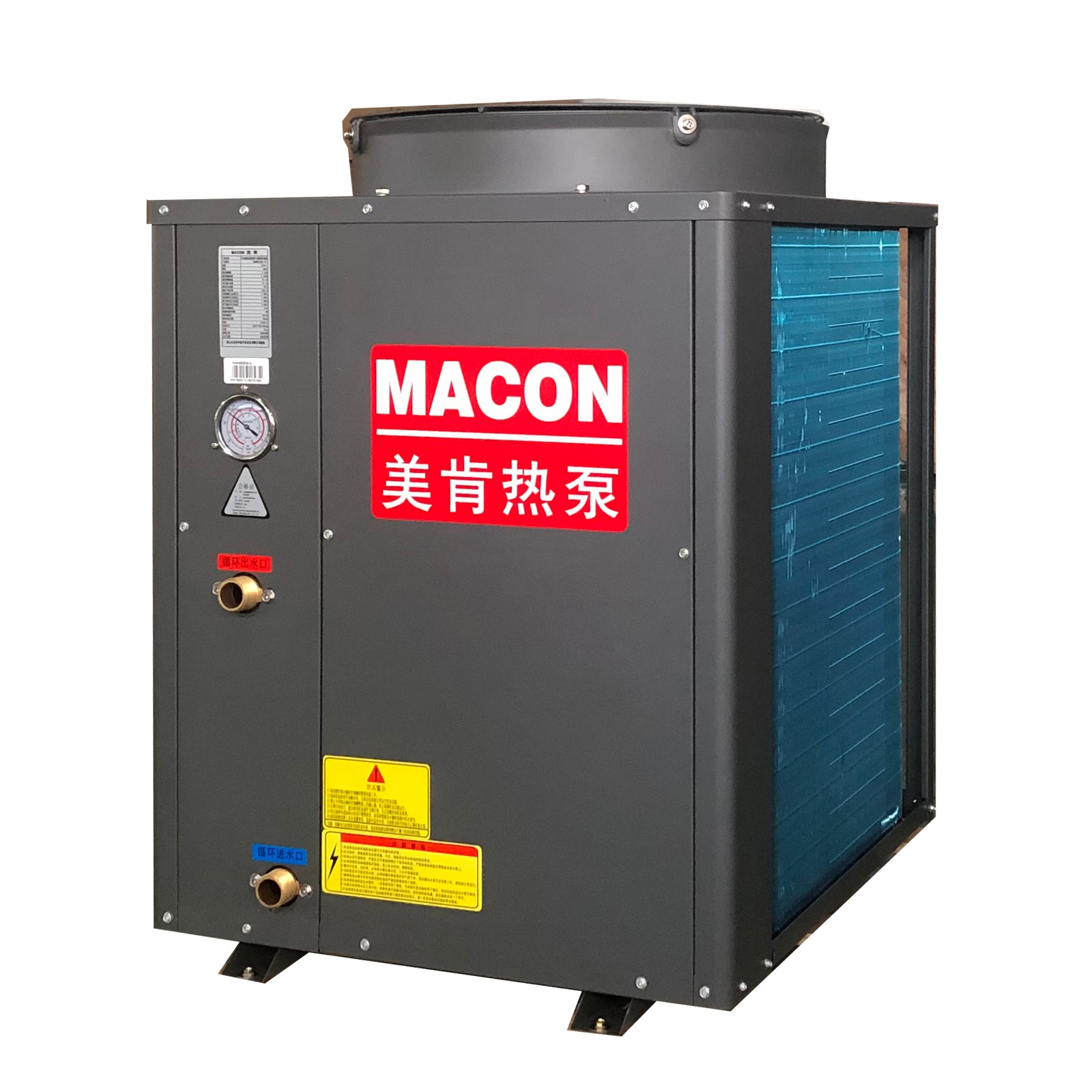

Air to Water Heat Pump for Domestic Hot Water
This air-to-water heat pump provides efficient heating and hot water for homes. It offers up to 80% energy savings compared to electric heating.
Technical Specifications
Product Overview
High-Efficiency Domestic Hot Water Solution
This air-to-water heat pump provides an integrated solution for domestic heating and hot water needs, offering up to 80% energy savings compared to traditional electric heating. Designed for durability and performance in ambient temperatures ranging from -7°C to 43°C, the unit features a high-efficiency double-wall heat exchanger and corrosion-resistant cabinet. It is an eco-friendly choice that provides reliable, consistent hot water with minimal maintenance requirements.
Performance Metrics
Energy Performance
4.65 W/W
Peak COP
80 %
Energy Savings
60 °C
Max Water Temp
Technical Specifications
Safety Systems
- Water flow protection
- Compressor temperature protection
- High/Low pressure protection
- Over-current protection
- Phase loss/dislocation protection
- Winter anti-freeze protection
- Key Operational Capabilities

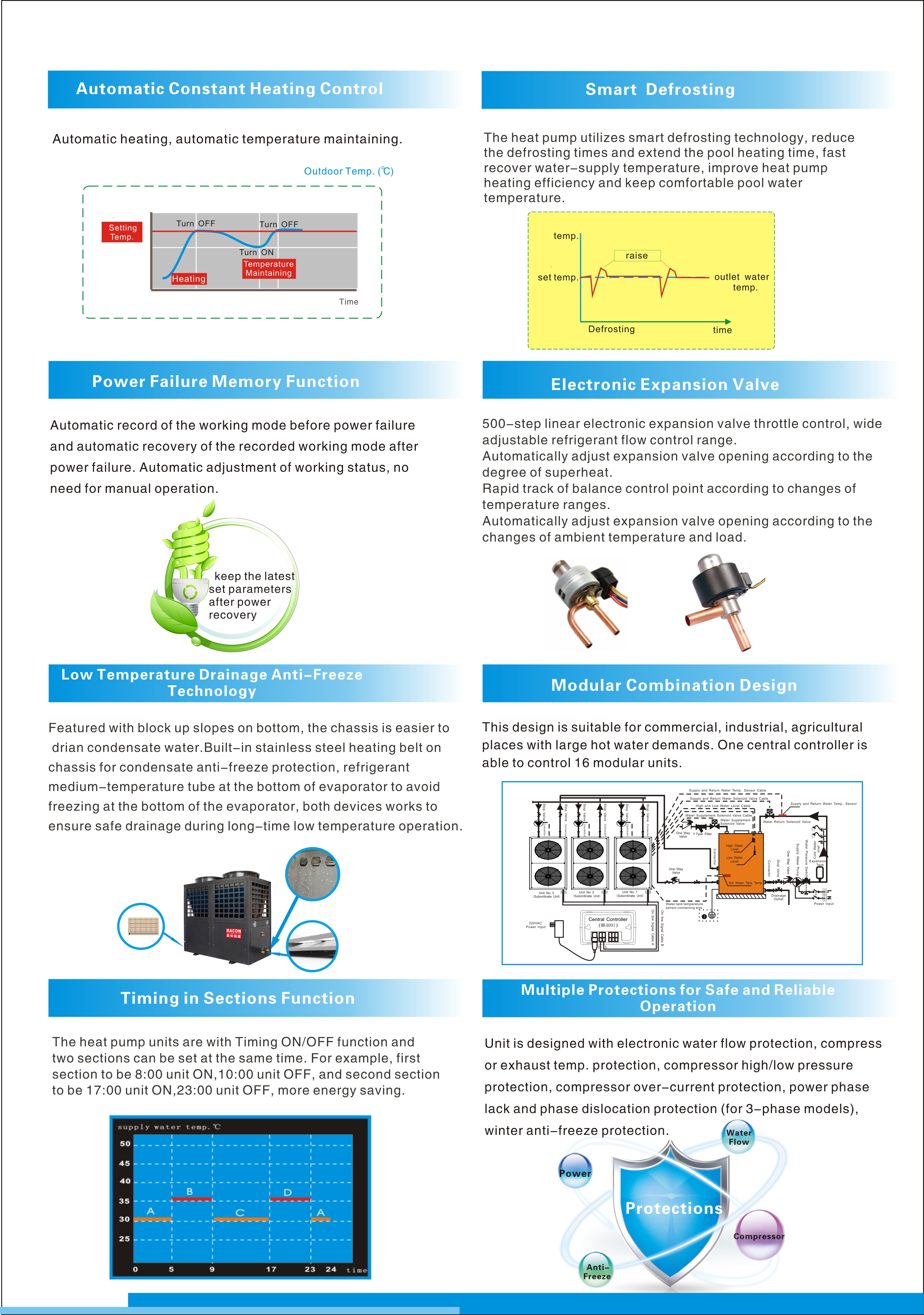

- Smart DefrostingPower Failure MemoryLow-Temperature Anti-FreezeModular Combination DesignAutomatic Water Level Control
Technical Data
Standard Model Specifications
| Model Series | Output Water (L/H) | Heating Capacity (KW) | Noise Level (dB(A)) |
|---|---|---|---|
| 3P/5P | 225 | 10.5 | 52 |
| 10P/12P | 375 | 17.5 | 54 |
| 15P | 750 | 35 | 57 |
| 20P/25P | 900 | 42 | 58 |
| 50P | 1,125 | 52.5 | 58 |
| 500ZB/S | 900 | 175 | 65 |
