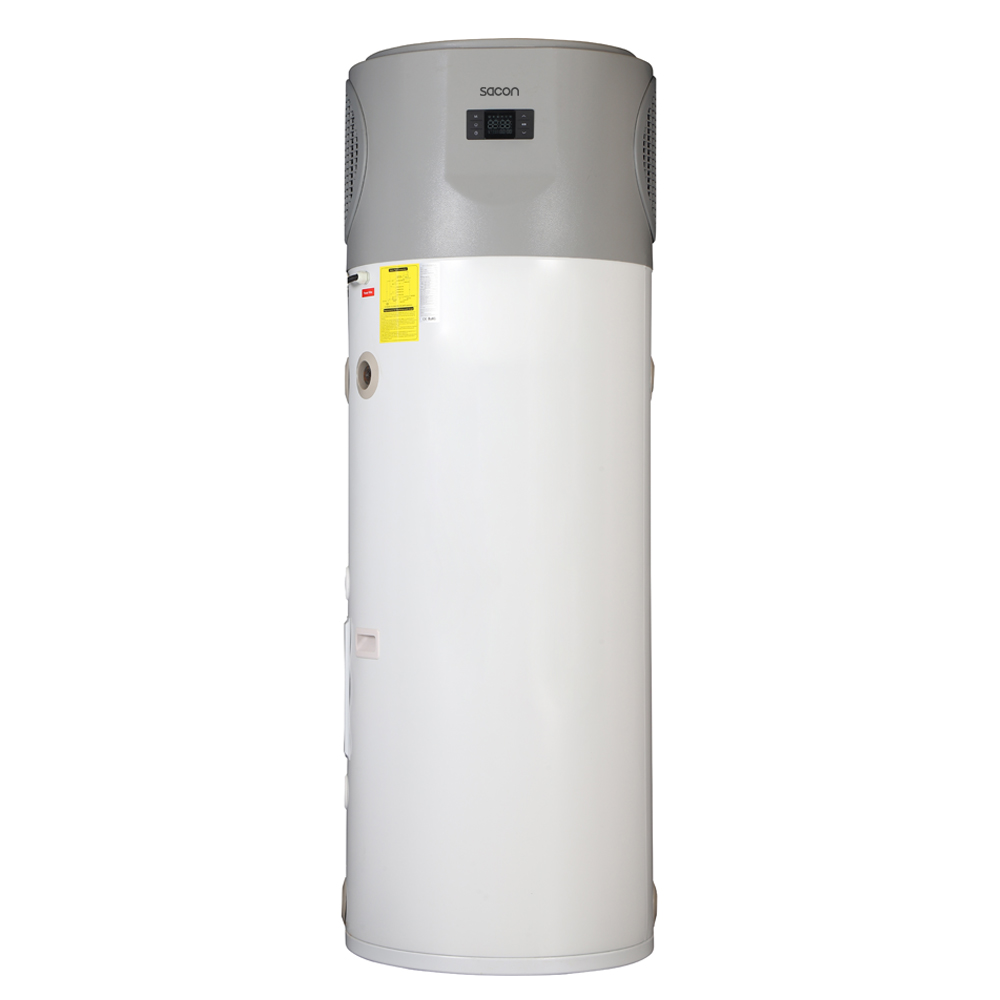

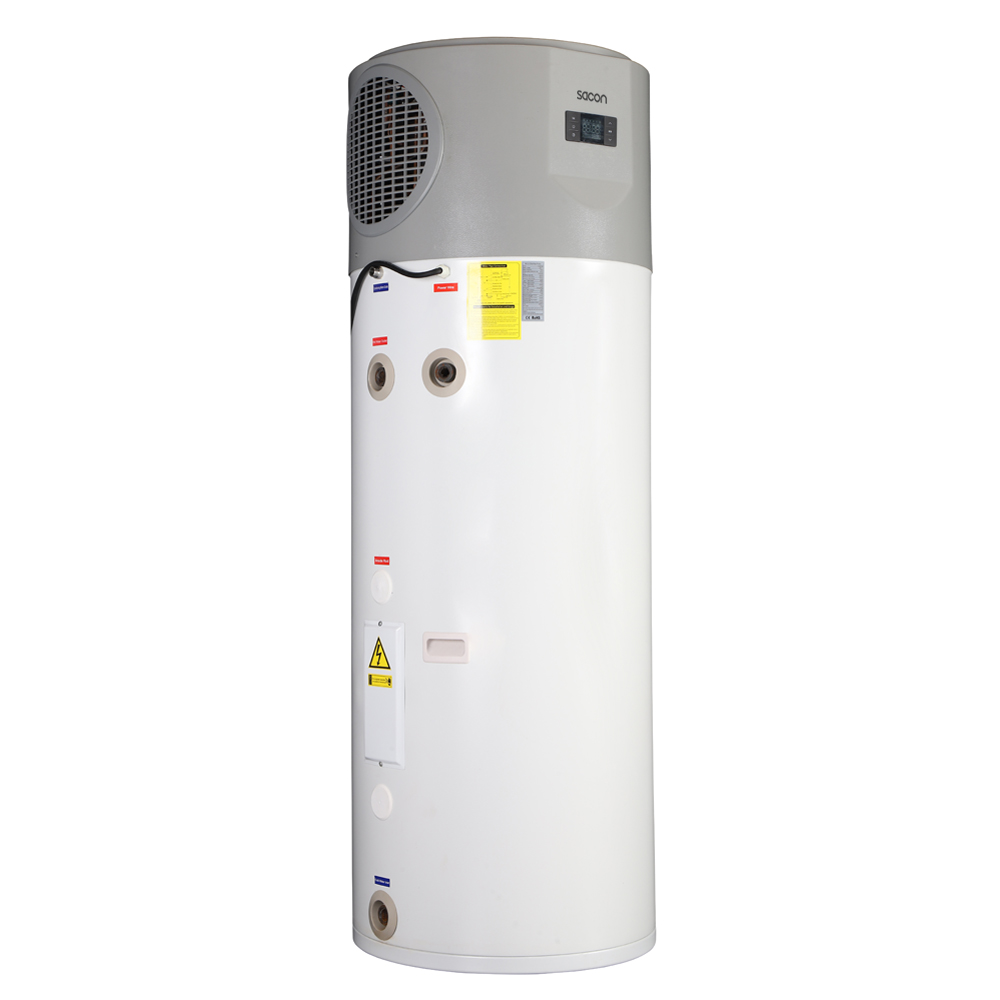

Heat Pump Water Heater with External Condenser
This heat pump water heater uses R134A refrigerant for environmentally friendly operation. Its external condenser coil ensures safer and more reliable performance.
Technical Specifications
Overview
High-Efficiency Heat Pump Water Heater
This advanced heat pump water heater utilizes R134A refrigerant to provide an environmentally friendly and energy-efficient solution for domestic hot water needs. Featuring an external condenser coil for enhanced safety and reliability, the unit supports high water temperature outputs up to 75°C. The system is designed for fully automatic operation, including defrosting, sterilization, and MODBUS communication capabilities, making it a robust choice for residential applications.
Performance Metrics
Core Performance
2.5 kW
Heating Capacity
3.9
COP
48 dB
Noise Level

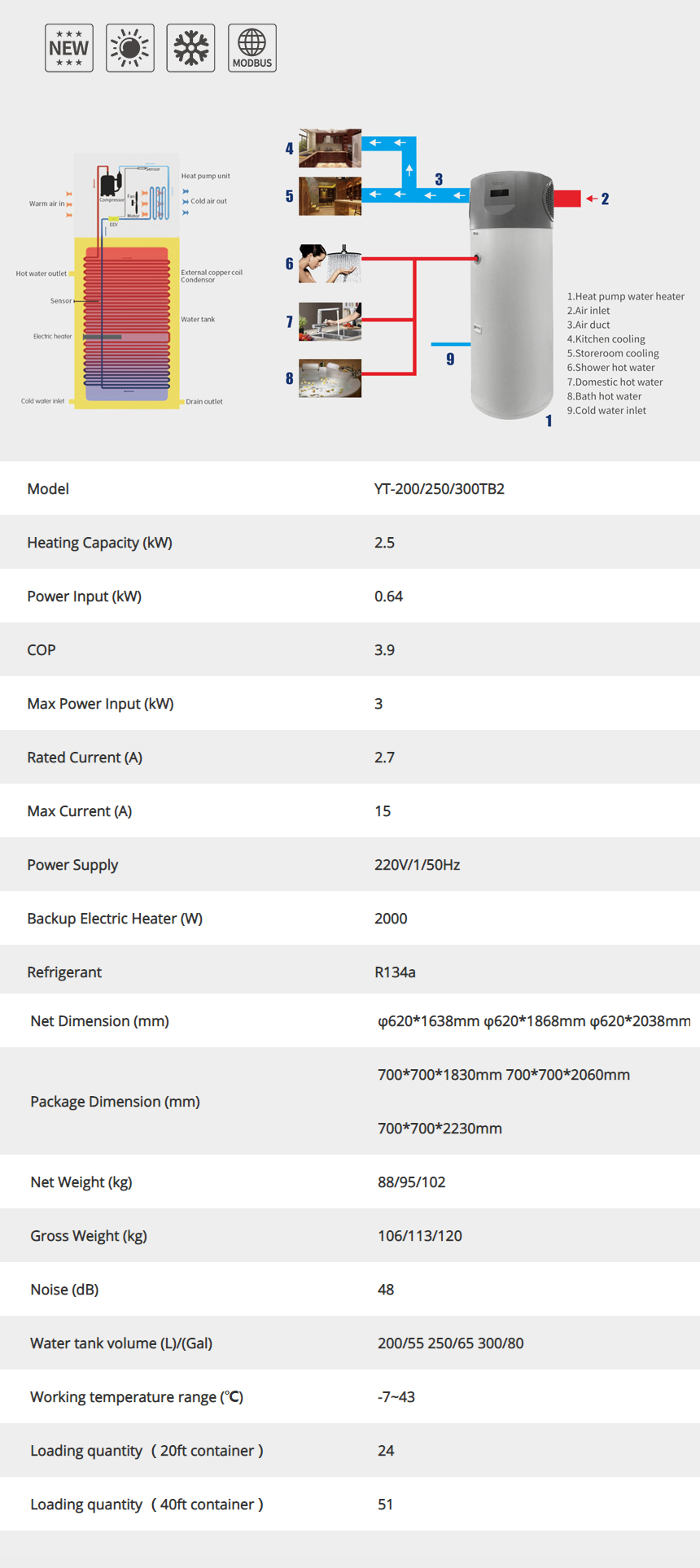

Technical Specifications
Power Requirements
| Parameter | Value |
|---|---|
| Power Supply | 220V/1/50Hz |
| Power Input | 0.64 kW |
| Max Power Input | 3 kW |
| Backup Electric Heater | 2000 W |
| Rated Current | 2.7 A |
| Max Current | 15 A |
Operating Conditions
- Refrigerant: R134a
- Working Temperature Range: -7°C to 43°C
- Max Water Temperature Output: 75°C
Model Variants
Model Dimensions & Weight
| Volume | Net Dimensions (mm) | Net Weight (kg) |
|---|---|---|
| 200L (55 Gal) | φ620*1638 | 88 |
| 250L (65 Gal) | φ620*1868 | 95 |
| 300L (80 Gal) | φ620*2038 | 102 |
Features
- Key Features
- External Condenser CoilEnamel Inner TankAutomatic DefrostSterilization FunctionMODBUS CommunicationHigh Pressure ProtectionAuxiliary Electric Heater
