Soft Rock Hammer Crusher
This machine directly crushes materials with a maximum granularity of 600-180 mm down to 25 mm or below. It is suitable for medium and fine crushing of medium-hard materials in industries like cement, chemistry, power, and metallurgy.
Technical Specifications
Product Overview
High-Efficiency Hammer Crusher
This single-stage crushing machine is designed for the medium and fine crushing of medium-hard materials. By utilizing high-speed rotating hammers that impact, cut, and split material, it efficiently processes feed sizes of up to 600mm down to 25mm or less. The system is ideal for industrial applications in sectors such as cement, chemistry, power, and metallurgy.
Application

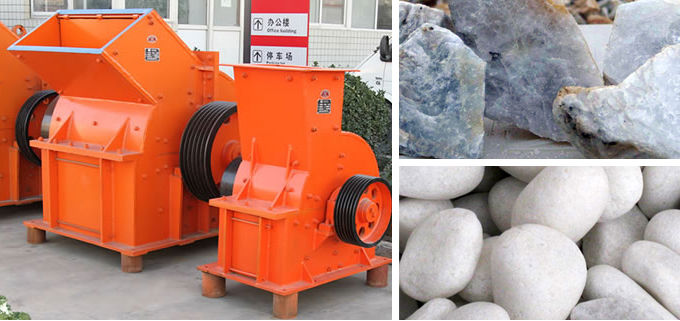

Typical Materials
- Coal
- Gypsum
- Salt
- Limestone
- Shale
- Suitable Industries
- CementChemistryPower PlantMetallurgyMiningAggregate Production
Technical Specifications
Crusher Technical Data
| Model | Feed Size (mm) | Capacity (m³/h) | Motor Power (kW) | Weight (t) |
|---|---|---|---|---|
| PCΦ400×300 | ≤200 | 5-10 | 11 | 0.8 |
| PCΦ600×400 | ≤250 | 10-22 | 22 | 2.26 |
| PCΦ800×600 | ≤250 | 18-40 | 55 | 4.8 |
| PCΦ1000×800 | ≤350 | 25-50 | 75 | 5.9 |
| PCΦ1000×1000 | ≤350 | 30-55 | 90 | 8 |
| PCΦ1250×1250 | ≤350 | 35-65 | 132 | 14 |
| PCΦ1400×1400 | ≤350 | 50-100 | 280 | 32 |
| PCΦ1600×1600 | ≤350 | 100-150 | 480 | 37.5 |

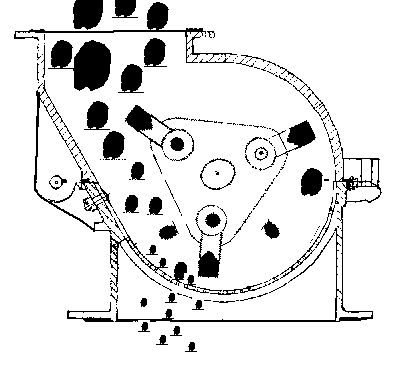

Mechanism
Impact-Based Crushing
The machine operates through a high-speed rotating rotor equipped with hammers. Materials enter the chamber and are subjected to impact, cutting, and splitting. Gravity assists the process, guiding material against baffle and grate bars until it reaches the required granularity to pass through the screen.
