Technical Specifications
Product Overview
Professional Thermal Screening Solution

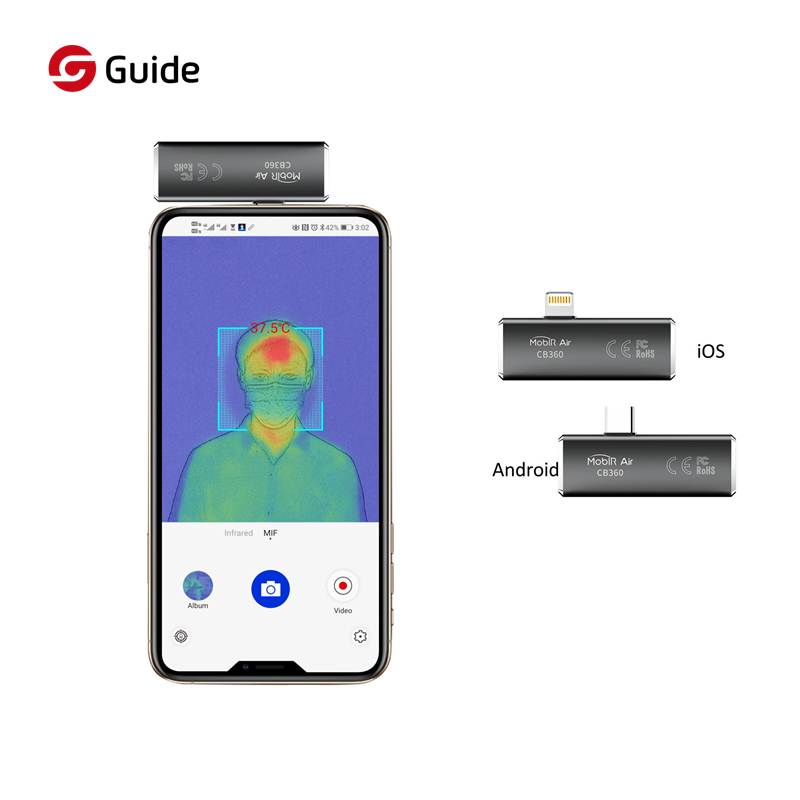

This compact thermal imaging camera transforms your smartphone into an efficient, non-contact temperature detector. Designed for safety and ease of use, it allows for instant temperature screening from up to 1.2 meters away, helping to maintain social distancing while ensuring accurate results. With its plug-and-play functionality and advanced multi-spectral imaging fusion, it is an ideal tool for public health monitoring, facility management, and rapid thermal analysis.

Performance & Imaging
- IR Resolution
- 120x90 @17μm WLP
- Frame Rate
- 25 Hz
- Field of View
- 50°±1°
- Spectral Range
- 8~14μm
Measurement & Functionality
- Accuracy
- ≤ ± 0.5 ℃
- Target Temperature Range
- 28 ℃ ~ 40 ℃
- Focus
- Focus-free
- Key Features
- Multi-spectral Imaging FusionAutomatic AlarmRadiometric JPEG CapturePlug-and-Play
Hardware & Interface
Compatible Interfaces
Power Consumption
- Device Dimensions
- 51mm x 18mm x 15.6mm
- Net Weight
- 20 g
Compliance & Packaging
Standard Accessories
- Fever Scanner
- Quick Start Guide
- Warranty Card

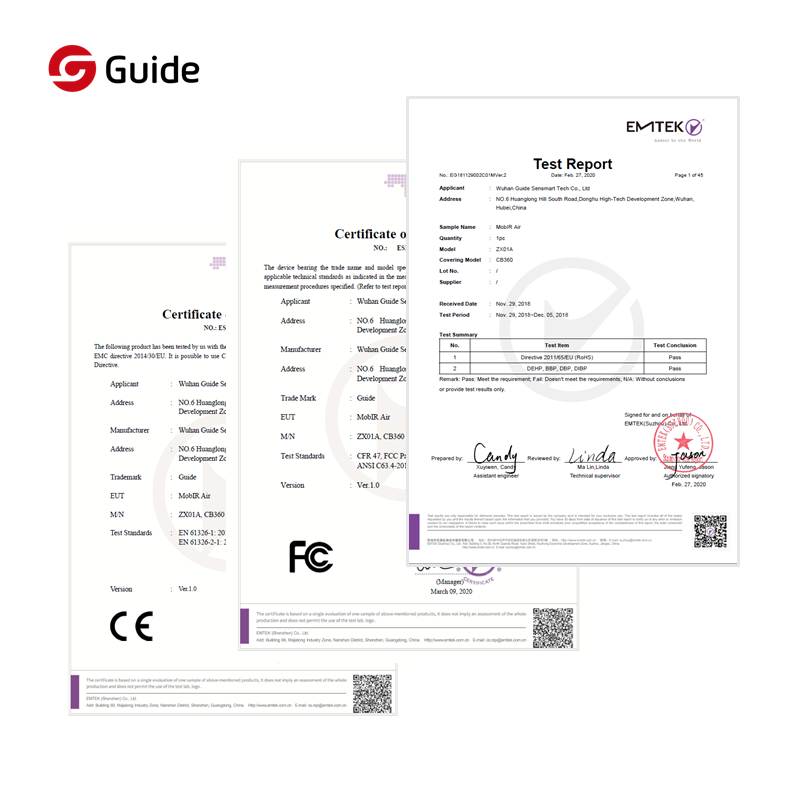

- Certifications
- RoHSCEFCC
