Smart Passive Door Lock with Fingerprint Access

This smart passive lock appears similar to a mechanical lock but has a standard smart lock cylinder embedded. It is a high-security lock featuring information task management.

Request a Quote Download PDFPDF

Technical Specifications

Overview

Smart Passive Locking Solution

This smart passive lock combines the familiar form factor of a mechanical lock with an embedded high-security smart cylinder for advanced information management. Designed for professional B2B applications, it requires no internal wiring or batteries, drawing power through a single contact point from the electronic key. The system provides comprehensive tracking, scheduling, and monitoring capabilities, ensuring that every access event is recorded and traceable.

Key Features

Core Functionalities

Authorized Unlocking
One key unlocks multiple locks
No wiring or maintenance required
Hierarchical management support
Real-time record of unlock information
Responsibility tracing and tracking
Protection against technical opening

Technical Specifications

Dimensions (Model WM-2000C-L40)

Feature	Measurement (mm)
Body Width	40
Body Height	46
Body Depth	20
Shackle Diameter	6.5
Shackle Height	27
Shackle Width	21

Dimensions (Model WM-2000C-L35)

Feature	Measurement (mm)
Body Width	35
Body Height	45
Body Depth	20
Shackle Diameter	5
Shackle Height	20

Security & Protection: IP67 Water ResistanceAES128 EncryptionStainless Steel MaterialCorrosion ResistantWireless Communication

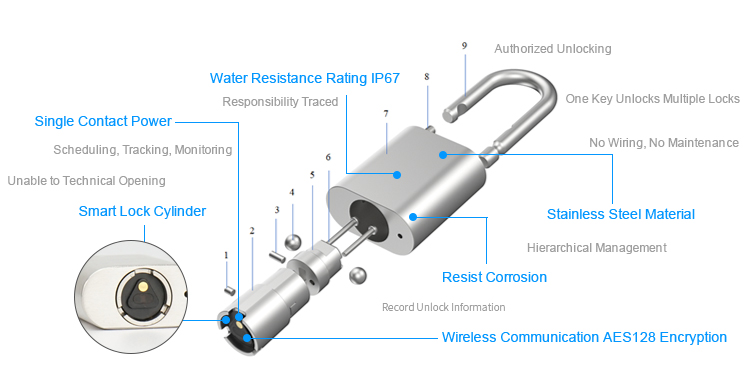

Smart lock cylinder features diagram — The smart cylinder features IP67 water resistance and stainless steel construction for high durability.

Applications

Industrial Applications

Logistics supervision and transport vehicles
Customs smart card systems
Airport and railway container management
Power and communication network cabinets
Industrial and outdoor distribution cabinets
Vending machines and ATM machines
Warehouse and office security
Emergency exits and factory access

Application scenarios for smart locks — Versatile application across logistics, transport, and industrial facilities.

Cabinet and enclosure applications — Ideal for securing power cabinets, ATMs, and communication network enclosures.

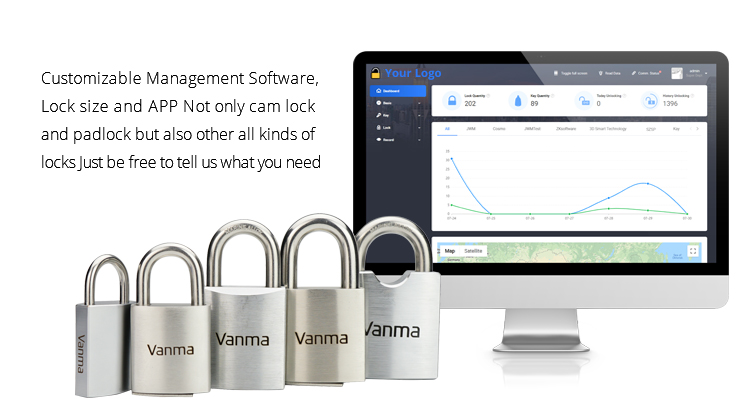

Management System

Customizable Control

The system includes customizable management software that supports various lock types including cam locks and padlocks. It features a map-based interface for location tracking and provides detailed analytics on lock quantity, key quantity, and historical unlocking data.
