Technical Specifications
Product Overview

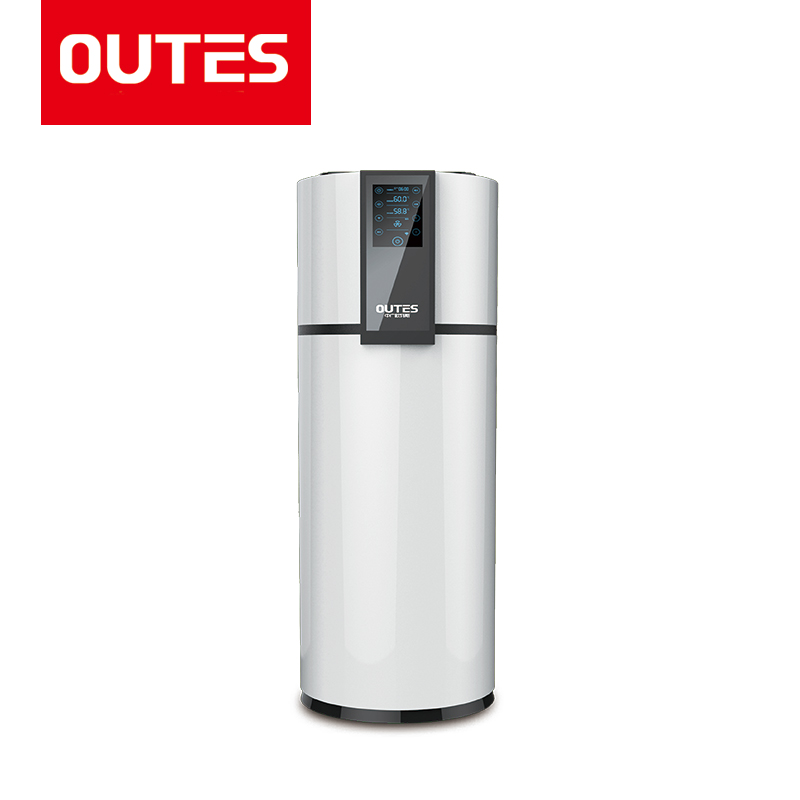

Smart Integrated Heat Pump Water Heater
This smart integrated heat pump water heater offers a highly efficient, energy-saving solution for both residential and commercial hot water needs. Featuring advanced R134a technology and a durable enamel tank with micro-channel external coils, it ensures long-lasting performance and reliable heating. With intelligent operation modes and multi-layer safety protections, this system is designed for flexible installation in various indoor and outdoor environments.
Performance Metrics
Operating Water Temperature
55 ℃
Default Outlet
75 ℃
Max Outlet
- Ambient Operating Range
- -25℃ to 46℃ (with Electrical Heater)
Technical Specifications
Safety Protections
- TOC & TOD backup heater protection
- PT Valve and Safety Valve
- High/Low Pressure Protection
- Electric protection wall
- Child Lock
Refrigerant
R134a
- Operating Modes
- AUTOECOFASTMULT
Installation & Efficiency
Air Outlet Ducting
| Pressure | Max Length |
|---|---|
| 10 Pa | 5 meters |
| 30 Pa | 10 meters |
- Compatible Installation Sites
- BalconyBathroomBasementGarden
