Small-Bore Compass Inclinometer

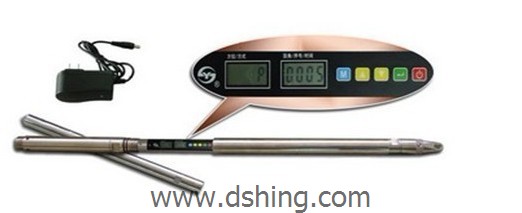

This small-bore compass inclinometer is designed for measuring borehole inclination and azimuth. It features a digital display for accurate readings and a compact, portable design.
Technical Specifications
Product Overview
Precision Borehole Analysis
This small-bore compass inclinometer is engineered for precise determination of dip and azimuth angles within boreholes. Designed for non-magnetic environments with diameters exceeding 46 mm, it offers a reliable, self-contained solution that requires no external power or cabling. Its robust construction ensures durability under high pressure, making it an essential tool for accurate geological and geophysical surveying.
Physical Specifications
- Outer Diameter
- 40 mm
- Total Length
- 1230 mm
- Total Weight
- 6 kg
Performance Metrics
Key Performance Metrics
80 ℃
Max Working Temp
100 kg/cm²
Max Water Pressure
120 min
Max Working Time
Measurement Capabilities
| Parameter | Range | Accuracy/Error |
|---|---|---|
| Azimuth Angle | 4° – 356° | ±4° (Dip ≥4°) |
| Dip Angle | 0° – 50° | ≤±1° (0-30°); ≤±2° (>30°) |
Operational Details
- Deployment
- Wire rope operationNo external power requiredNo cabling required
- Working Time Range
- 20 min to 120 min
