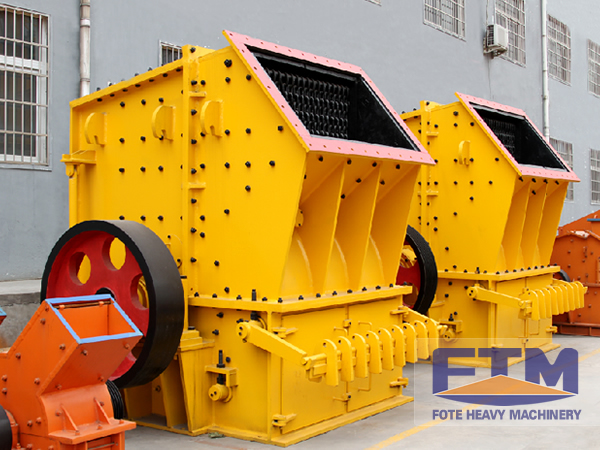

Single-Stage Hammer Crusher
This single-stage crusher efficiently reduces large-sized mined ores to an average granularity of 5mm in a single pass. It is an ideal replacement for traditional two-stage and three-stage crushing methods.
Technical Specifications
Product Overview
Efficient Single-Stage Crushing
The Single-Stage Hammer Crusher is designed to efficiently reduce large-sized ores to an average granularity of 5mm in a single pass. By replacing traditional two-stage and three-stage crushing methods, this machine simplifies the production process, effectively lowering infrastructure investment and overall production costs. It is an ideal solution for mining and road modification projects requiring high throughput and reliable performance.
Technical Specifications
Performance Parameters
| Model | Rotor Diameter (mm) | Feeding Size (mm) | Product Size (mm) | Capacity (t/h) | Power (kW) |
|---|---|---|---|---|---|
| DPC140 | 1,400 | ≤800 | <3-8 | 100-140 | 160-220 |
| DPC160 | 1,600 | ≤1000 | <3-8 | 150-240 | 280-355 |
| DPC200 | 2,000 | ≤1250 | <3-8 | 330-420 | 500-630 |

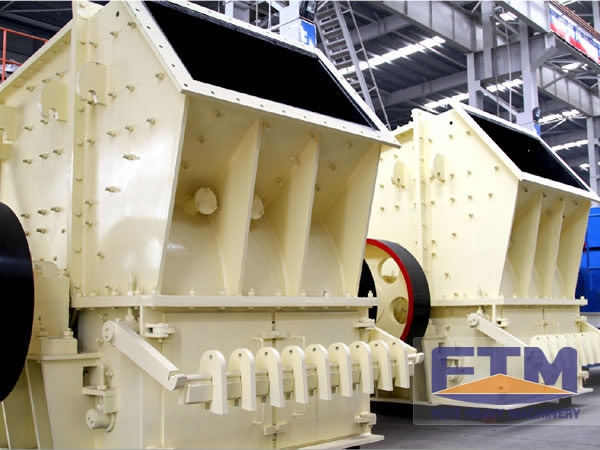

Design & Construction
Key Components
- Rotor
- Bearing assembly
- Discharge grate
- Main body
- Drive section
- Rotor Configuration
- Single Rotor
