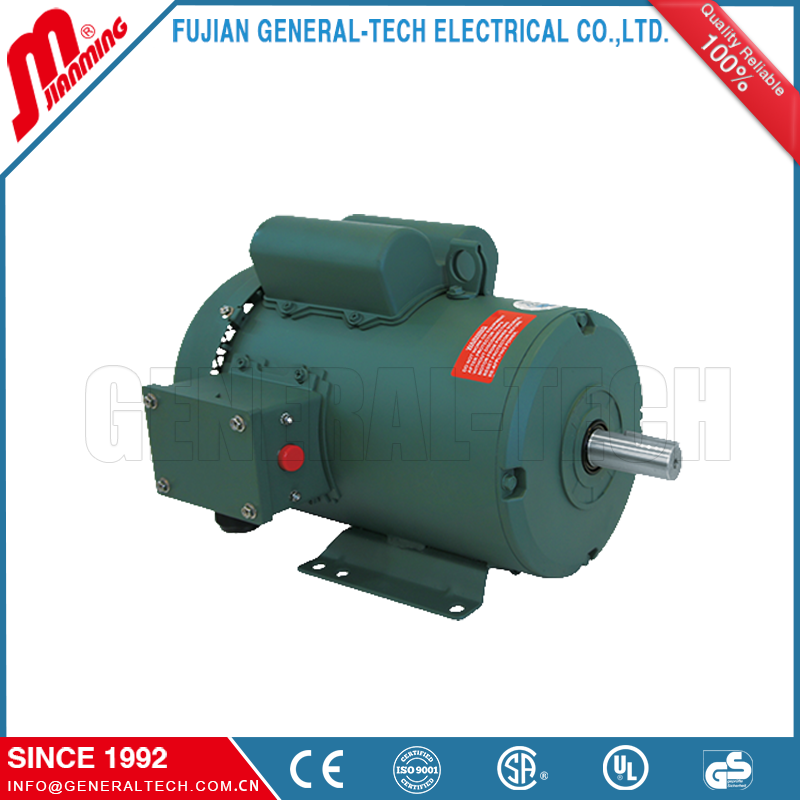

Single Phase Rolled Steel Electric Motor
This single-phase electric motor features a totally enclosed fan cooled (TEFC) design. The rolled steel frame provides enhanced durability and protection in various environments.
Technical Specifications
Product Overview
High-Efficiency Single-Phase Electric Motor
This single-phase, totally enclosed fan-cooled (TEFC) motor is designed for reliable performance in diverse industrial and commercial environments. Built with a robust frame, it complies with IEC standards to ensure consistent power delivery and operational safety. Suitable for continuous duty, this motor offers flexible mounting options and is available in a wide power range to meet demanding technical requirements.
Performance Metrics
Output Power Range
0.18 kW
Minimum Power
18.5 kW
Maximum Power
Technical Specifications
Electrical Input
| Parameter | Value |
|---|---|
| Voltage | 380V |
| Frequency | 50Hz / 60Hz |
| Poles | 2, 4, 6, 8, 10 |
Insulation and Protection
- Insulation Class: B/F
- Protection Class: IP44/IP54/IP55
- Cooling Method: IC0141
- Standards and Ratings
- IEC StandardIE2 EfficiencyTEFC DesignContinuous Duty S1
Operational Environment
Operating Conditions
- Ambient temperature: -15°C to 40°C
- Altitude: Up to 1000 Meters
- Relative humidity: Not higher than 85%
Certifications
Quality Compliance
CECCCISO 9001
