Single Blade Labyrinth Drip Irrigation Tape

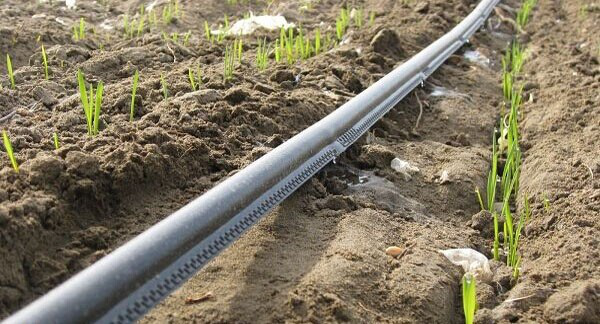

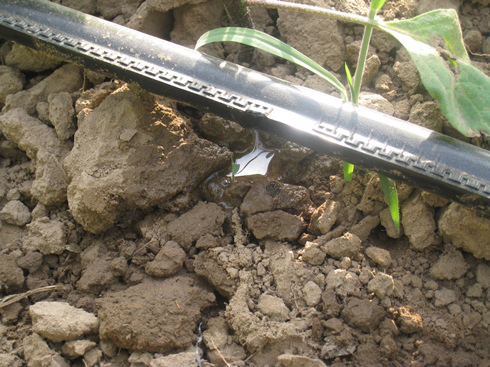

This labyrinth drip irrigation tape uses plastic pipe to deliver water to plant roots through small drip holes. Water slowly drips into the soil near the root of the crop for local irrigation.
![[copy]Single blade labyrinth drip irrigation tape - Image 1](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fcopysingle-blade-labyrinth-drip-irrigation-tape%2F2.jpg&w=1536&q=75)
![[copy]Single blade labyrinth drip irrigation tape - Image 2](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fcopysingle-blade-labyrinth-drip-irrigation-tape%2F1.png&w=1536&q=75)
![[copy]Single blade labyrinth drip irrigation tape - Image 3](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fcopysingle-blade-labyrinth-drip-irrigation-tape%2F0.jpg&w=1536&q=75)
Technical Specifications
Overview
Efficient Labyrinth Drip Irrigation

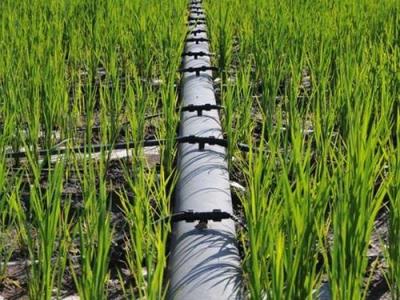

The Single Blade Labyrinth Drip Irrigation Tape is a highly efficient water-saving solution designed for arid regions, achieving a water utilization rate of up to 95%. It features a precision-engineered labyrinth runner that ensures uniform and slow water delivery directly to the crop roots, minimizing waste. This versatile tubing is suitable for greenhouse vegetables, ornamental fruits, and large-scale field crops, offering a cost-effective method for integrated water and fertilizer management.
Key Performance Metrics
Performance Highlights
95 %
Water Utilization
1 bar
Working Pressure
80 m
Max Paving Length
Technical Specifications
Technical Parameters
| Parameter | Range/Value |
|---|---|
| Available Diameters | 12mm, 16mm (common), 20mm |
| Wall Thickness | 0.18mm - 0.22mm |
| Flow Rate | 1 - 6 L/H |
| Outlet Spacing | 100mm, 150mm, 200mm, 250mm, 300mm |

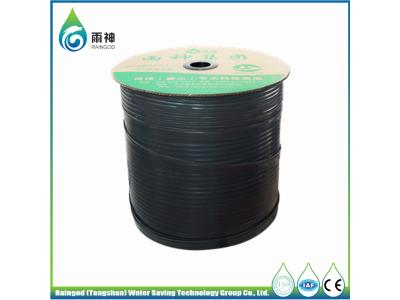

| Roll Length | 2000 Meters |
Design Features
Product Features

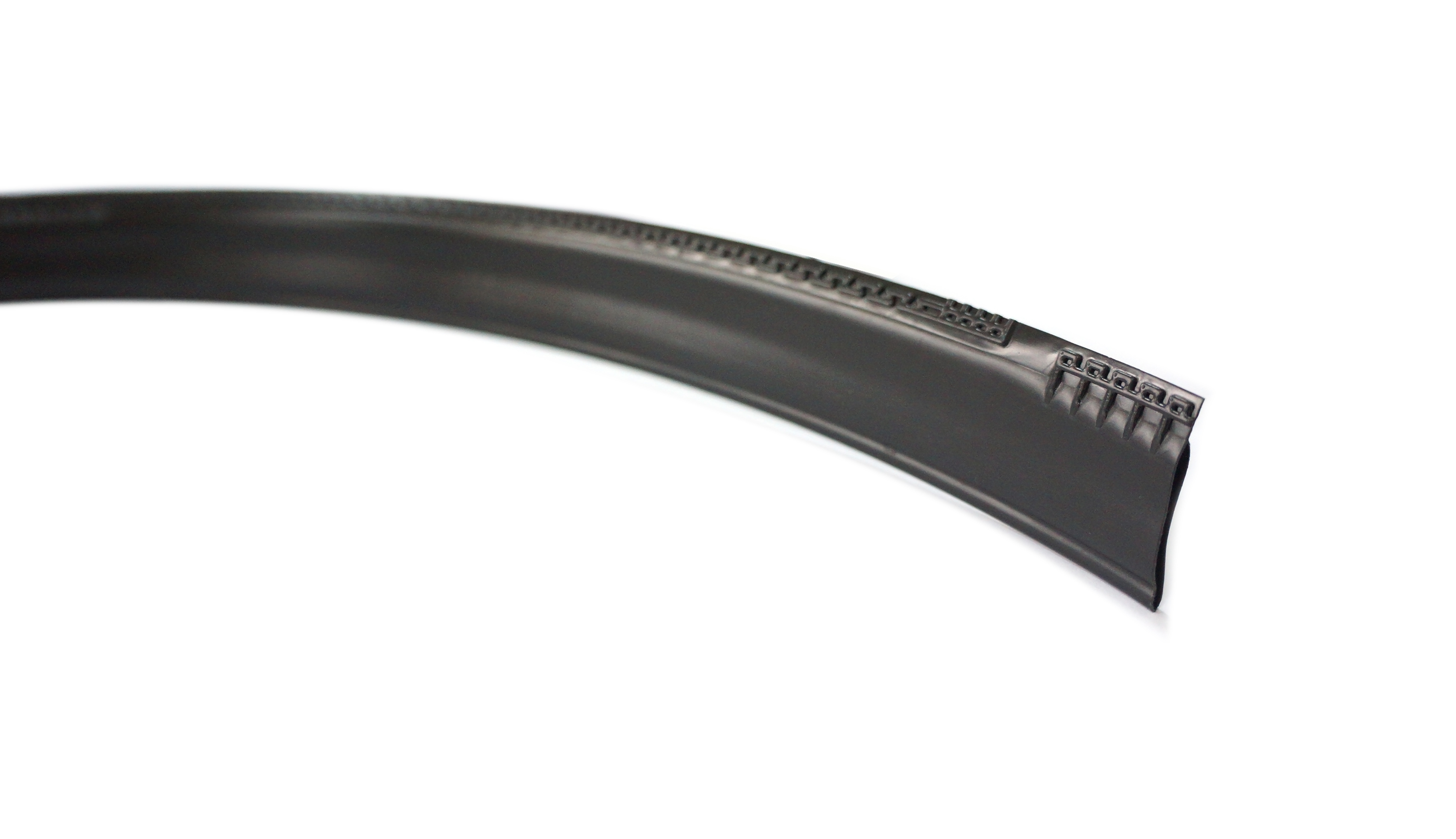

- Single-blade labyrinth runner for turbulent flow and high anti-blocking performance
- Thin wall construction with integrated dripping holes finished in one process

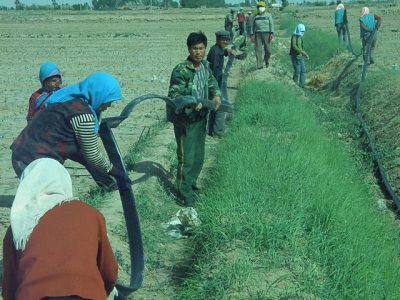

- Excellent tensile properties suitable for mechanical paving
- Lightweight design for easy handling and operation
- High-quality polyethylene material with UV and corrosion resistance
- Flexible adjustment of head spacing to meet specific crop needs
Applications
- Suitable Applications
- Greenhouse IrrigationVegetable CropsOrchardsVineyardsField CropsArid Region Irrigation
Certifications & Compliance
Compliance
CEIAF
Commercial Terms
Ordering Information
| Requirement | Details |
|---|---|
| Minimum Order Quantity (MOQ) | 10,000 meters |
| Standard Delivery Lead Time | 5 working days |
