Overview

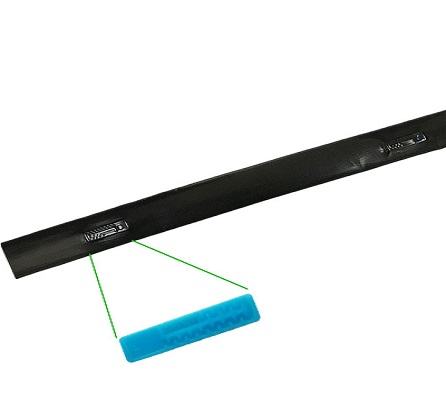

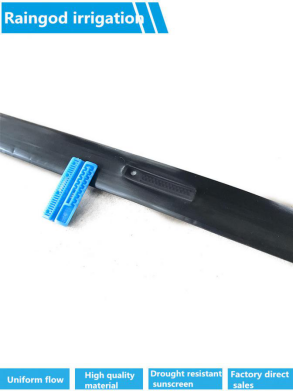

High-Efficiency Inline Flat Drip Tape

This flat emitter drip tape is an ideal solution for efficient irrigation in field crops, orchards, and greenhouses. It features an integrated flat dripper design with self-filtering windows and a turbulent flow path to ensure excellent anti-clogging performance. Designed for durability and uniform water distribution, it helps professional growers maximize water use efficiency while promoting healthy root zone development.

Technical Specifications

Tape Dimensions

Parameter	Range/Value
Diameter Options	12mm, 16mm, 20mm
Thickness Range	0.15mm - 0.7mm
Emitter Spacing	100mm - 1000mm
Flow Rate	1 - 4 L/H

Working Pressure

1 BAR

Operating Pressure

0.1 Mpa

Flow Test Pressure

Key Features

Performance Features

Self-filtering dripper windows for anti-clogging
Turbulent flow design for uniform distribution
Large section outlet chamber
Customizable emitter spacing
Factory-installed emitters for reduced labor
Extended paving length capability

Applications

Suitable Environments

Field CropsOrchardsGreenhousesVegetable GardensRow Crops

Quality Control

Quality Inspection Standards

Visual inspection for spots, pits, or scratches
Dripper adhesion and tape thickness verification
Internal surface smoothness check
Diameter and spacing precision measurement
Dripper hole depth and scrap absorption check
Roll weight verification
Water flow rate testing at 0.1Mpa

Packaging & Logistics

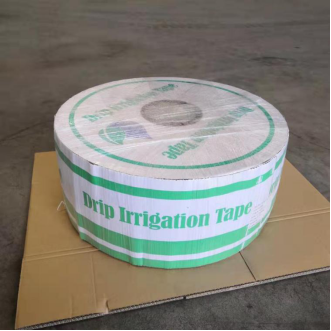

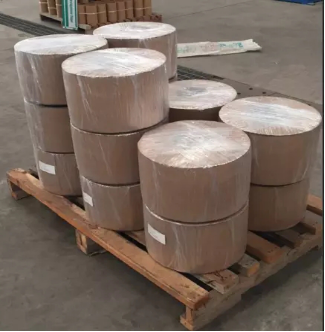

Packaging Details

Type	Description
Standard Length	2000 Meters per roll
Custom Length	Available (e.g., 1000 Meters/roll)
Materials	Carton box with outer plastic film
Marking	Product information marks included
OEM	Custom packaging available on request
