Technical Specifications
Product Overview
High-Efficiency Cone Crushing Solution
The PSG series cone crusher is engineered for secondary and tertiary crushing of medium to high hardness ores and rocks. It features a robust, multi-cylinder hydraulic cavity cleaning system that significantly reduces downtime and labor intensity. Designed for industries such as metallurgy, mining, and road construction, this equipment delivers a high crushing ratio, consistent product gradation, and low energy consumption.
Key Features
- Operational Advantages
- Multi-cylinder Hydraulic SystemHigh Crushing ForceAdjustable Cavity TypesOverload ProtectionWear-Resistant ComponentsUniform Product Size

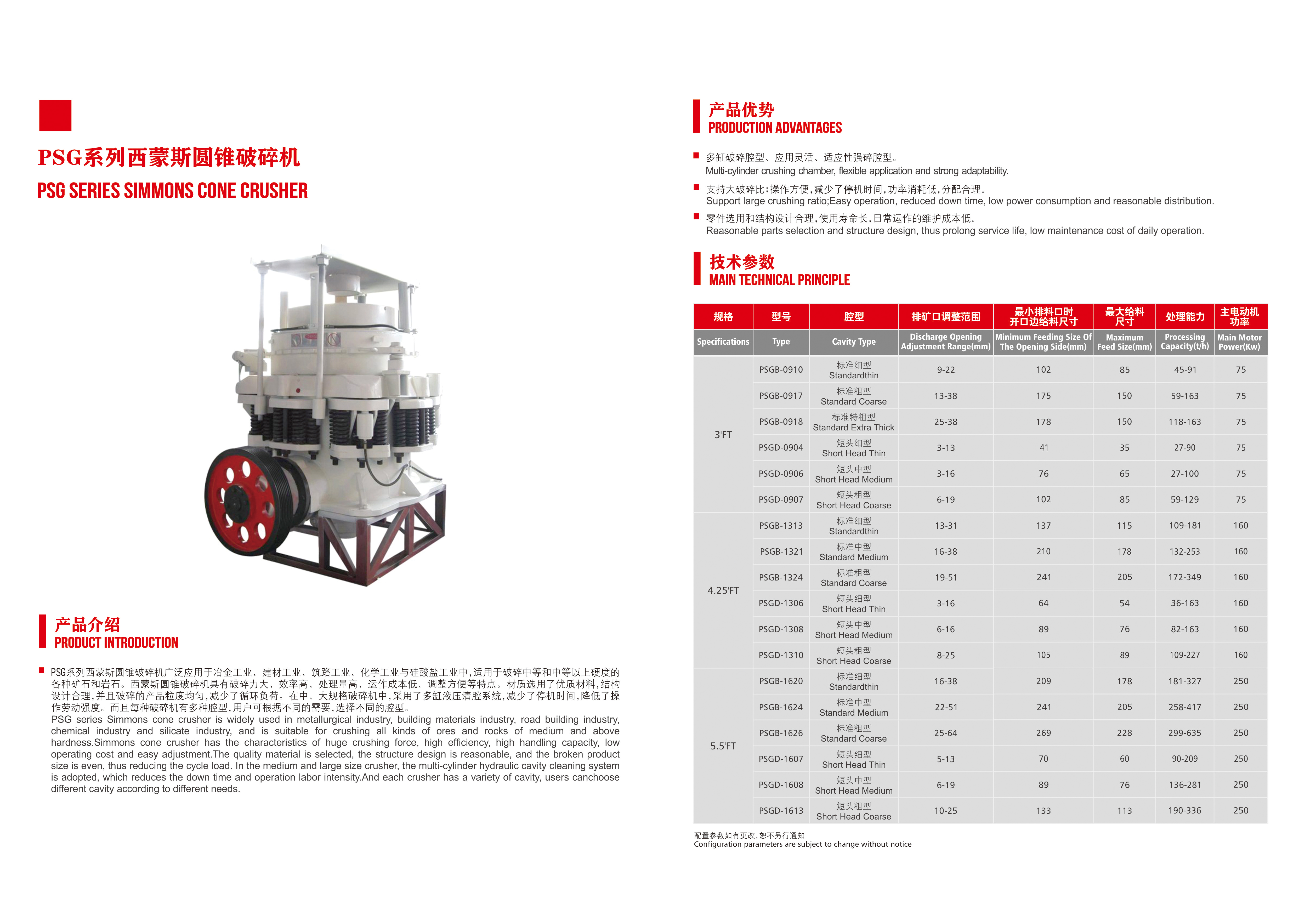

Technical Specifications
Performance Matrix
| Model | Min Discharge (mm) | Max Feed (mm) | Power (Kw) |
|---|---|---|---|
| PSGB-0910 | 9 | 102 | 75 |
| PSGB-0917 | 13 | 175 | 75 |
| PSGB-0918 | 25 | 178 | 75 |
| PSGD-0904 | 3 | 41 | 75 |
| PSGD-0906 | 3 | 76 | 75 |
| PSGD-0907 | 6 | 102 | 75 |
| PSGB-1313 | 13 | 137 | 160 |
| PSGB-1321 | 16 | 210 | 160 |
| PSGB-1324 | 19 | 241 | 160 |
| PSGD-1306 | 3 | 64 | 160 |
| PSGD-1308 | 6 | 89 | 160 |
| PSGD-1310 | 8 | 105 | 160 |
| PSGB-1620 | 16 | 209 | 250 |
| PSGB-1624 | 22 | 241 | 250 |
| PSGB-1626 | 25 | 269 | 250 |
| PSGD-1607 | 5 | 70 | 250 |
| PSGD-1608 | 6 | 89 | 250 |
| PSGD-1613 | 10 | 133 | 250 |
Applications
Suitable Industries
- Metallurgical industry
- Building materials production
- Road construction
- Chemical industry
- Silicate industry
- Mining and aggregate processing
