Silenced Hydraulic Rock Breaker for Excavators

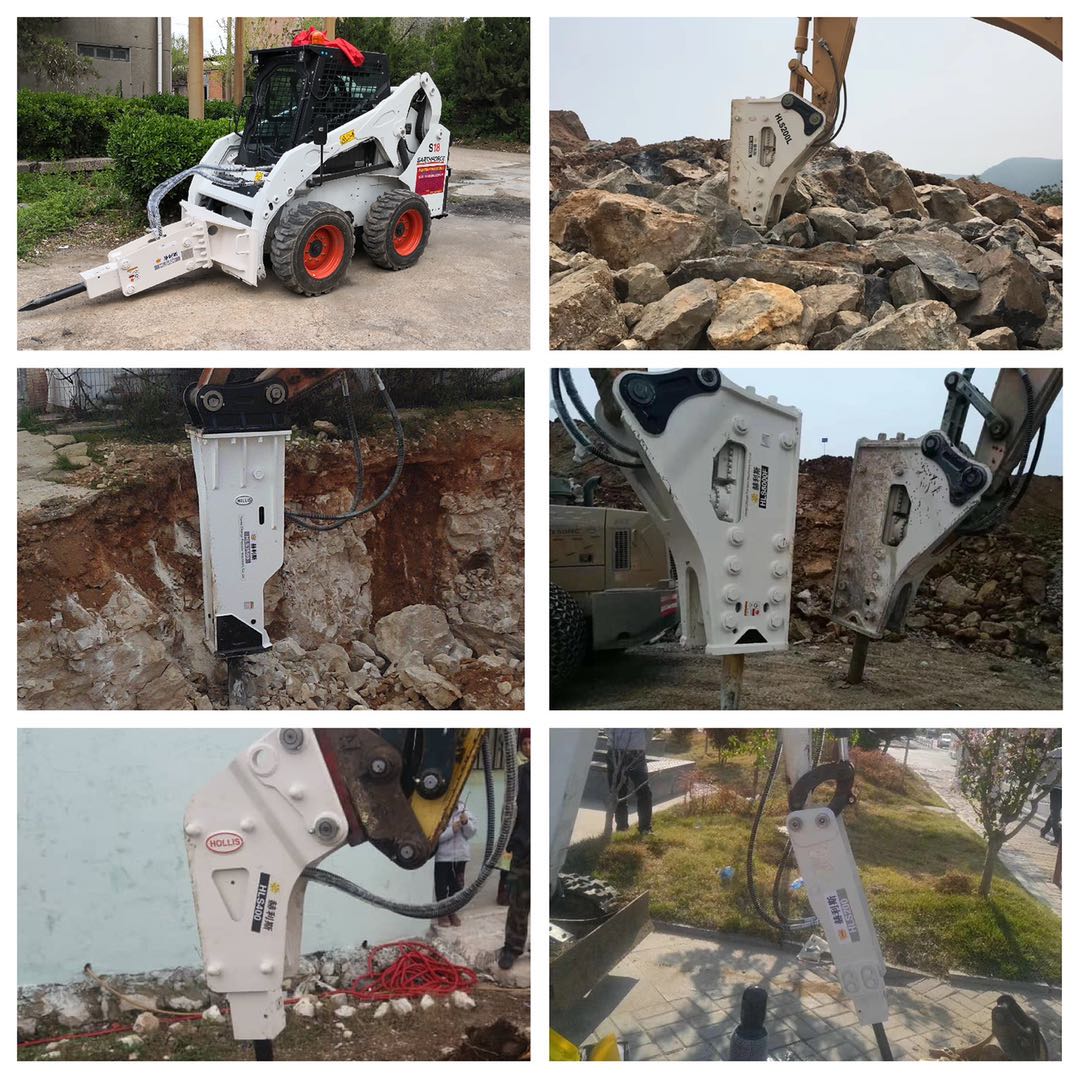

This silenced hydraulic breaker is designed for breaking rocks, concrete, and other hard materials. It is commonly used as an attachment for excavators in demolition, construction, and mining applications.
Technical Specifications
Overview

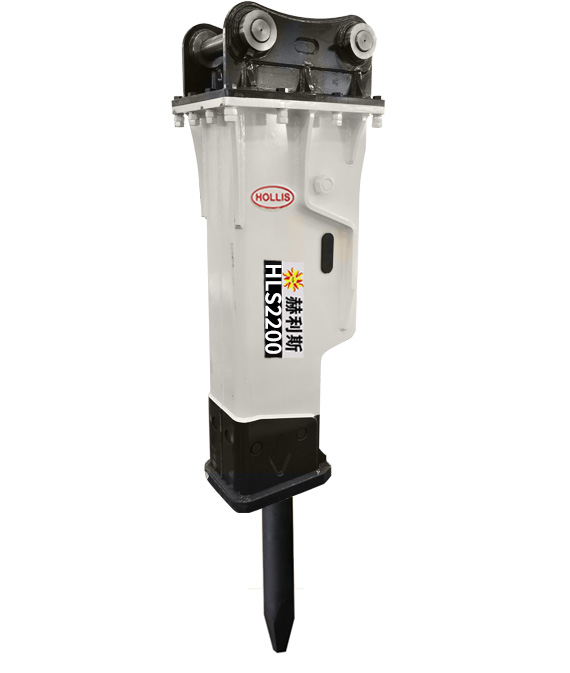

Professional Silenced Hydraulic Breaker
This silenced hydraulic rock breaker is engineered for high-performance demolition, mining, and road construction projects. Featuring an enclosed box-type design, it significantly reduces noise levels, making it ideal for urban and noise-sensitive job sites. Built with heavy-duty, wear-resistant steel, it offers exceptional durability, lower maintenance requirements, and consistent high-impact energy for demanding applications.
Technical Specifications
Core Performance
5,193 J
Impact Energy
300 bpm
Impact Rate Min
450 bpm
Impact Rate Max
Operating Parameters
| Parameter | Value |
|---|---|
| Operating Weight | 2591 kg |
| Suitable Excavator | 25-33 Tons |
| Oil Flow | 175-220 L/min |
| Operating Pressure | 160-180 bar |
| Setting Pressure | 240-260 bar |
| Tool Diameter | 150 mm |
| Hose Diameter | 1 inch |
| Noise Level | 120 dB |
Features
Product Advantages
- Silenced box-type housing for noise reduction
- High-quality wear-resistant steel construction
- High impact energy and frequency for superior performance
- Anti-rust treatment on pins and brackets
- Low maintenance design with long service life
- Pre-delivery impact testing for quality assurance
