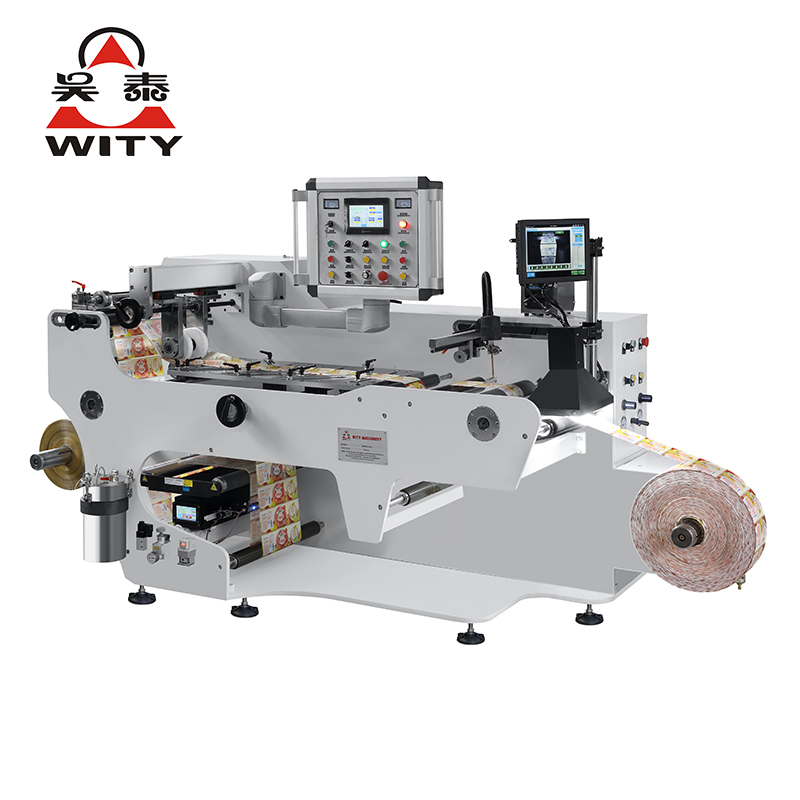

Shrink Sleeve Label Seaming Machine
This machine is designed for gluing and seaming single-layer PVC/PET rolls to produce shrink sleeve labels. It is suitable for creating beverage labels, battery sleeves, and pen sleeves.
Technical Specifications
Overview
High-Efficiency Seaming Technology
This shrink sleeve label seaming machine is engineered for high-speed industrial label production. It features robust construction and precise control mechanisms, ensuring consistent bonding for demanding packaging lines. Designed for versatility, it supports a wide range of sleeve widths to accommodate diverse container requirements in the food, beverage, and pharmaceutical sectors.
Performance Metrics
Key Performance Metrics
330 m/min
Mechanical Speed
300 m/min
Max Seaming Speed
Capacity and Range
- Forming Width
- 70 mm
- Max Forming Width
- 250 mm
- Unwinding Diameter
- 500 mm
- Rewinding Diameter
- 700 mm
Technical Specifications
- Material Core ID
- 76 mm
- Total Power
- 5.5 kw
- Voltage/Frequency
- 380v/50hz
Physical Dimensions
- Machine Weight
- 1800 kg
- Overall Dimensions (L×W×H)
- 2950×1550×1700mm
