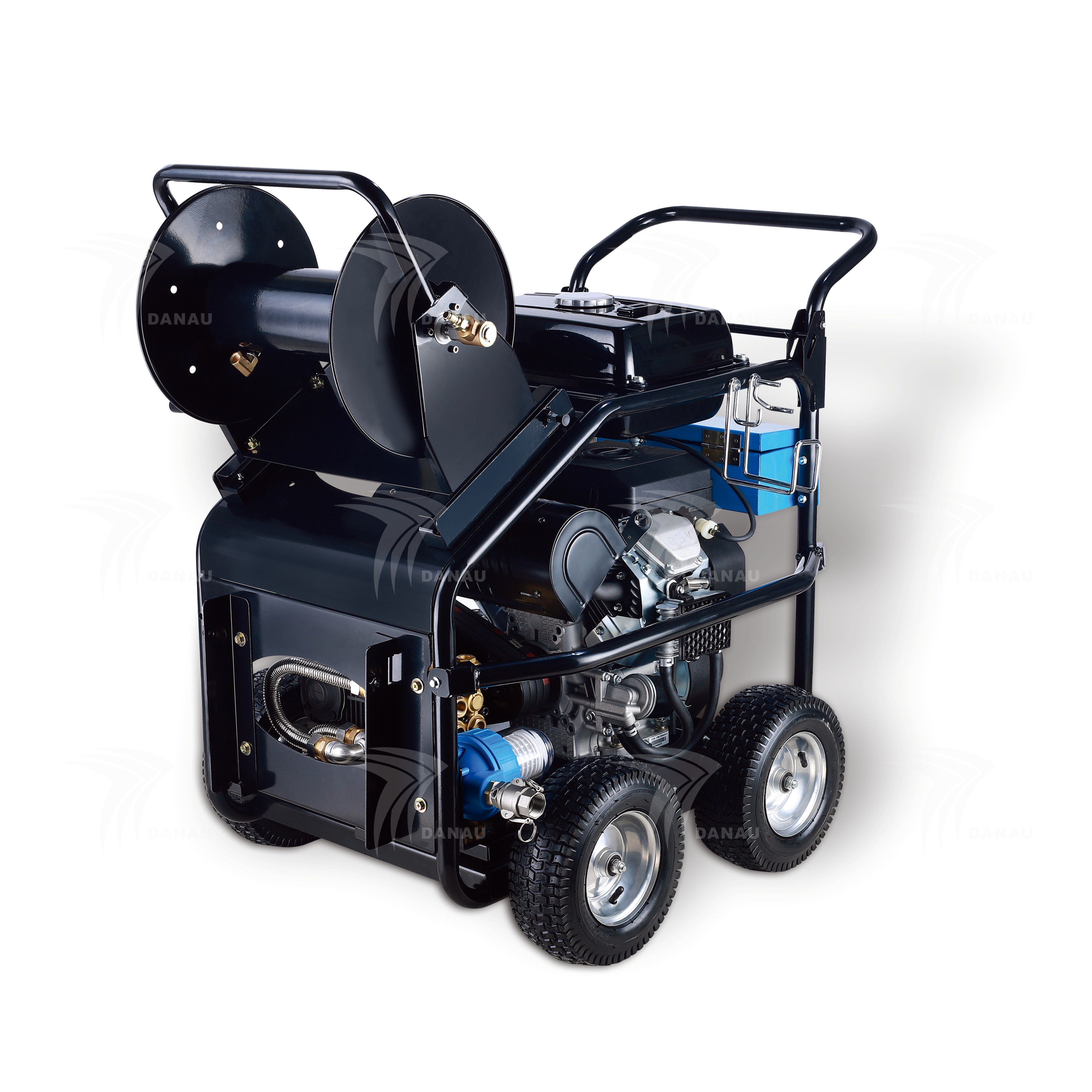

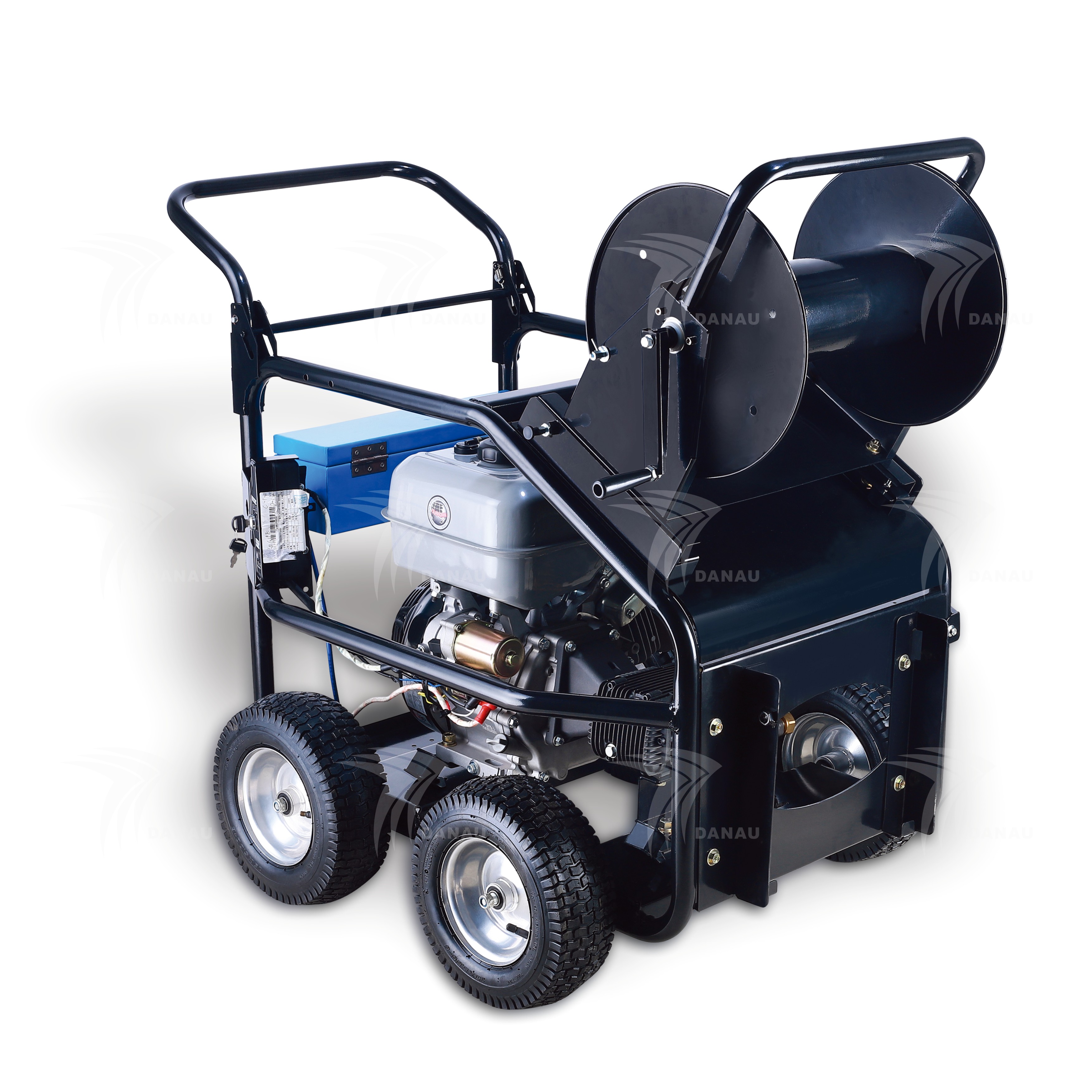

Sewer Jetting and Sand Blasting Machine
This commercial-grade machine is designed for both sewer jetting and sandblasting applications. It can operate with either a gas or diesel engine and features a hand-carry design for portability.
Technical Specifications
Overview
Professional High-Pressure Jetting & Blasting Solution
This versatile commercial-grade machine is engineered for heavy-duty sewer jetting, marine maintenance, and industrial sandblasting. Featuring a robust triplex pump with a forged brass head and ceramic plungers, it delivers extreme pressures up to 500 BAR for the most demanding cleaning tasks. The modular design allows for easy extension into a multi-functional wet sandblaster or a durable water jetter, making it an essential tool for construction and municipal applications.
Performance Metrics
Key Performance Ratings
500 BAR
Max Pressure
22 HP
Engine Power
45 LPM
Max Flow Rate
Engine & Power
Engine Specifications
- Type: Dual cylinder OHV air-cooled engine
- Displacement: Up to 680cc
- Start System: Electric start with 12V 36A/H battery
- Fuel Capacity: 25L large fuel tank
- Options: Gas and Diesel engine models available
Pump & Drive System
Pump & Drive Details
- Pump Type: Heavy-duty triplex pump with ceramic plungers
- Manifold: Forged brass or stainless steel (for 400+ bar models)
- Drive Options: Direct drive, Gearbox reduction, or Belt drive
- Features: Integrated pulse valve and easy-start unloader
Technical Comparison
Model Specifications
| Model | Pressure (PSI/BAR) | Flow (GPM/LPM) | Drive Type |
|---|---|---|---|
| DCQ-39/21GRSH | 5650 / 390 | 5.5 / 21 | Gearbox |
| DCF-47/17GRSH | 6900 / 476 | 4.6 / 17.4 | Gearbox |
| DCF-24/34GRSG | 3480 / 240 | 9.0 / 34 | Belt Drive |
| DCF-18/45GRSG | 2610 / 180 | 11.9 / 45 | Belt Drive |
Applications
- Primary Applications
- Sewer JettingWet Sand BlastingMarine CleaningConstruction Site CleanupIndustrial Pipe CleaningFactory Drainage
Standard Equipment
Included Accessories
- Stainless steel trigger gun and lance
- Hydraulic high-pressure hose (10m)
- Soft jetting hose (60m options: ID 1/4" or 3/8")
- Penetrate nozzle (15°) and Cleaning nozzle (30°)
- Removable hose reel with connection hose
- Foot pedal valve
- 4 x 13" Pneumatic wheels for maneuverability
Physical Attributes
Shipping & Build
- Frame: Powder coated or galvanised steel
- Housing: Full stainless steel forged housing with shoulder hold
- Shipping Size: 95 x 80 x 94 cm (varies by model)
- Shipping Weight: 105 kg - 145 kg
