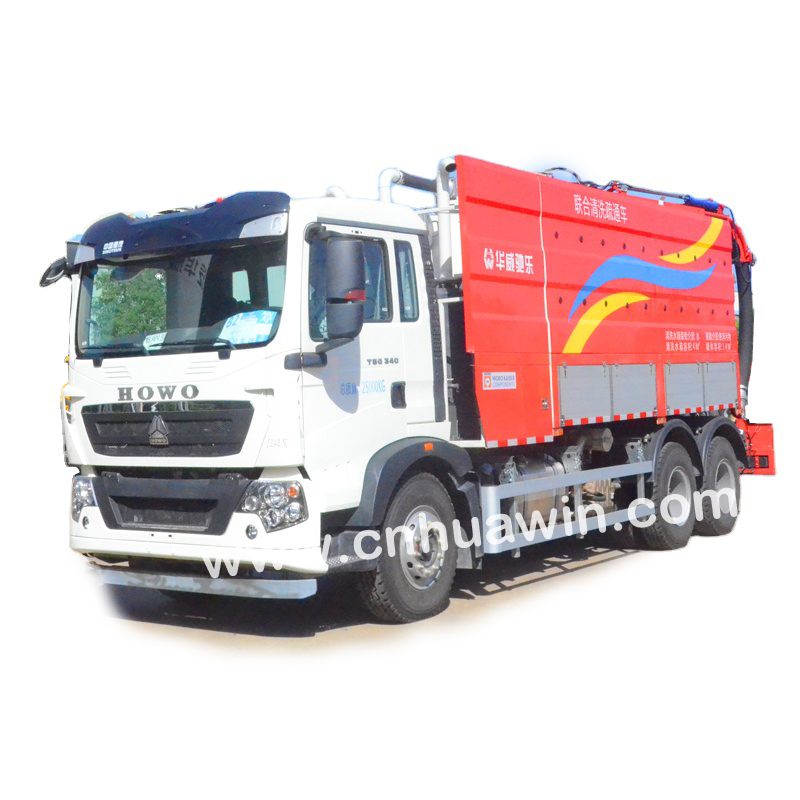

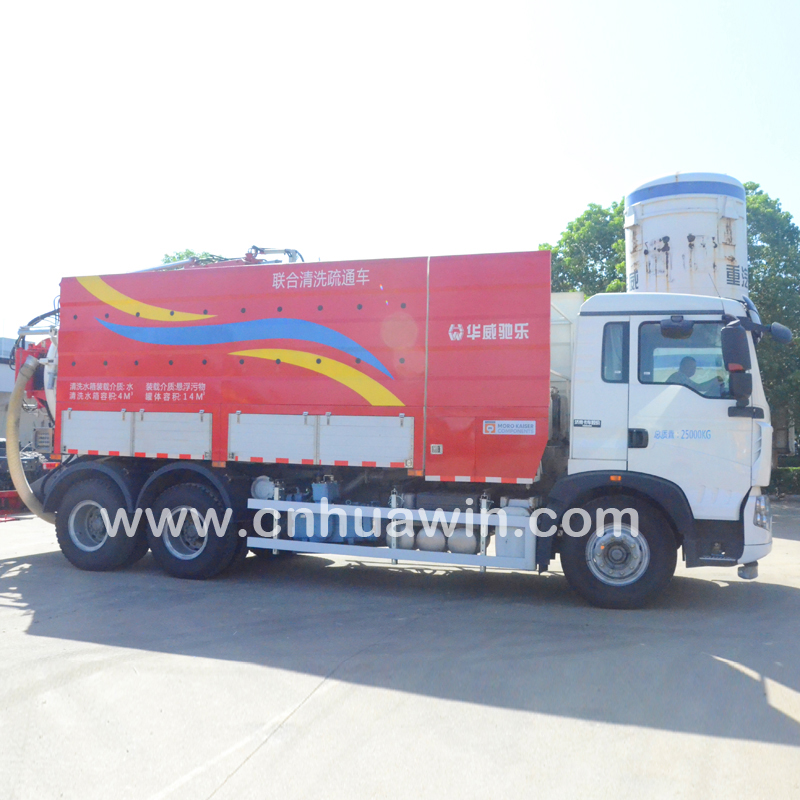

Sewer Dredging and Cleaning Vehicle
This specialized vehicle is designed for comprehensive cleaning and dredging operations in demanding environments. It features a high-capacity tank and advanced suction and jetting systems for efficient debris removal.
Technical Specifications
Overview
High-Efficiency Joint Dredging and Cleaning Vehicle
This multifunctional cleaning and suction vehicle is engineered for comprehensive maintenance of underground drainage pipe networks and industrial waste management. It integrates high-pressure water jetting, vacuum suction, and dredging capabilities into a single, robust platform. Designed for municipal and industrial emergency response, the vehicle efficiently removes sludge, hard dirt, and liquid waste, ensuring rapid and effective pipeline restoration.
Key Capabilities
- Operational Functions
- High-pressure cleaningVacuum suctionDredgingReverse dischargeIndustrial waste transport
Performance Metrics
Core Performance Metrics
20 MPa
Max Water Pressure
14,000 L
Sewage Tank Volume
1,700 m³/h
Vacuum Pump Flow
Technical Specifications
| Parameter | Value |
|---|---|
| Max Water Pump Flow | 290 L/min |
| Clean Water Tank Volume | 4200 L |
| High-Pressure Hose Length | 120 m |
| Reel Speed | 0-30 m/min |
| Cleaning Pipe Diameter | φ150-φ800 mm |
| Max Vacuum Degree | 95% |
Suction Reach
- Vertical Suction Height: 9 m
- Horizontal Suction Distance: >50 m
Boom and Handling
Boom Operational Range
- Swing Angle: 300°
- Luffing Angle: -26° to +27°
- Extension Distance: 1350 mm
