Seven Segment LED Numeric Display

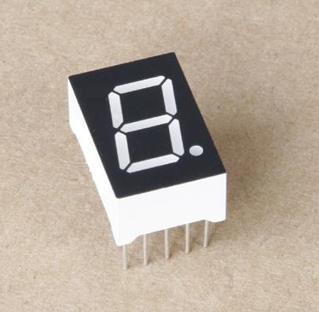

This is a single-digit, seven-segment LED display for numeric character representation. It is designed for use in electronic devices and projects where numeric information needs to be displayed clearly.
Technical Specifications
Product Overview
High-Visibility LED Solutions
These versatile seven-segment LED displays are engineered for professional electronic equipment, ranging from instrument panels to multimedia devices. Available in configurations from single to multi-digit units, they offer a wide range of colors and heights to suit specific industrial requirements. The robust design ensures clear visibility and reliability for demanding applications like bank exchange boards and gas station indicators.
Physical Specifications
- Digit Height Range
- 0.28 to 16 Inches
- Supported Digit Configurations

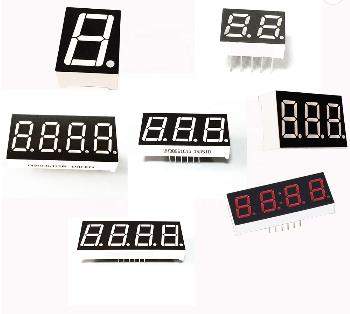

- 1 Digit2 Digits3 Digits4 Digits5 Digits6 Digits
- Surface Color Options
- BlackGray
Performance Metrics
Luminous Intensity
120 mcd
Red Max
460 mcd
Green Max
- Operating Temperature
- -20ºC to 60ºC
Technical Details
Polarity
Common AnodeCommon Cathode
Available Colors
- Red
- Green
- Yellow
- White
- Blue
- Yellow Green
- Amber
Available Models Table
1-Digit Model Specifications
| Model | Digit Height | Pin Count |
|---|---|---|
| WH05613 | 0.56" | 8 |
| WH18011 | 1.8" | 10 |
| WH23011 | 2.3" | 10 |
| WH30011 | 3.0" | 10 |
