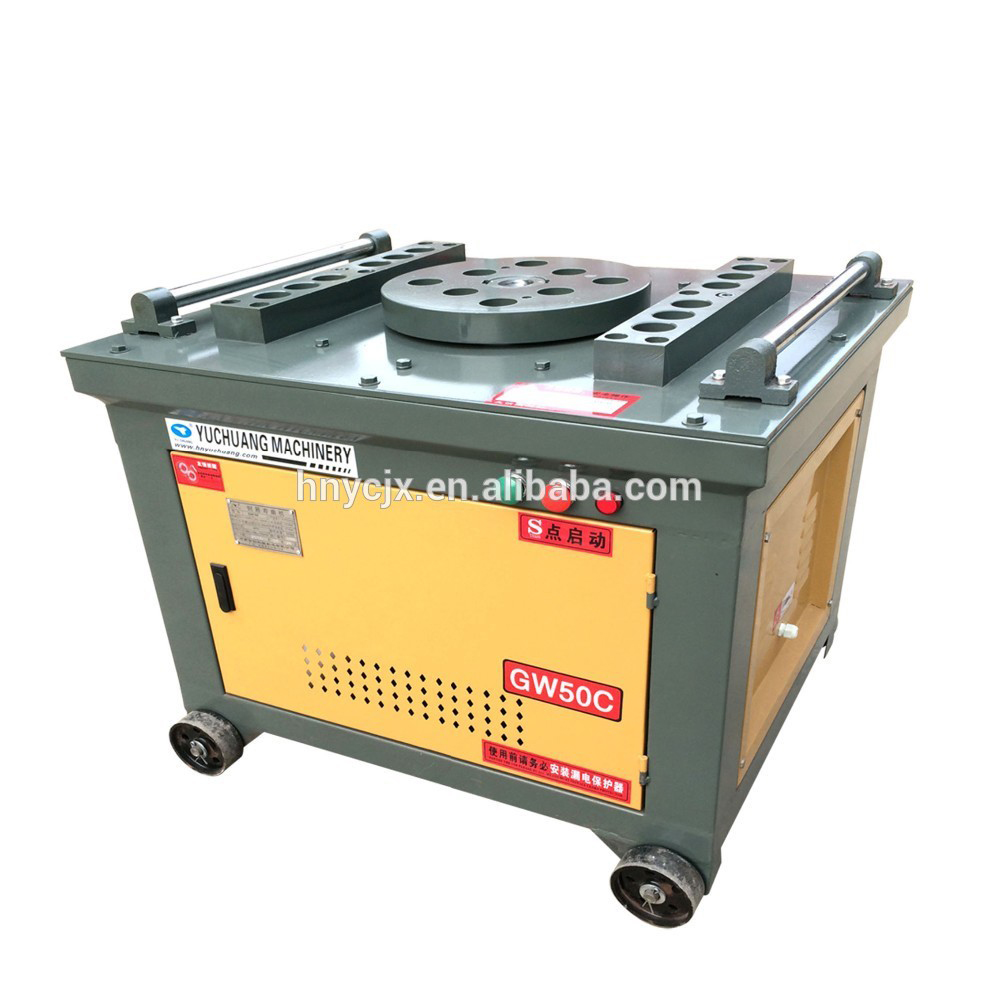

Semi-Automatic Rebar Bending Machine
This semi-automatic rebar bending machine is designed for bending steel bars to specific angles. It features a rotating table with adjustable pins for accurate and consistent bending.
Technical Specifications
Overview
Professional Steel Processing Solution
This semi-automatic rebar bending machine is a durable and reliable tool engineered for high-performance steel processing. Featuring a robust transmission case and high-quality gear components, it ensures steady operation with noise levels controlled between 70-80 decibels. The machine is designed for efficiency, equipped with a foot switch for simple, flexible operation that significantly improves workflow on construction sites.
Technical Specifications
Model Specifications
| Feature | GW42 | GW50C | GW50E |
|---|---|---|---|
| Bending range | 6-40mm | 6-50mm | 6-50mm |
| Bending speed (times/min) | 5-10 | 10 | 10 |
| Motor power | 3KW | 4KW | 4KW |
| Working disk diameter | 380mm | 410mm | 410mm |
| Net weight (kgs) | 350 | 375 | 395 |
Construction & Durability
- Key Materials
- HT250 Transmission CaseQT 500-7 Nodular Cast Iron Gears45 Carbon Steel Gear ShaftCr12 Heat-Treated Molds
Operational Features
Performance Highlights
50 mm
Max Q235 Bar Diameter
75 dB
Average Noise Level
Electrical Components
Schneider Electric AppliancesFoot Switch Control
