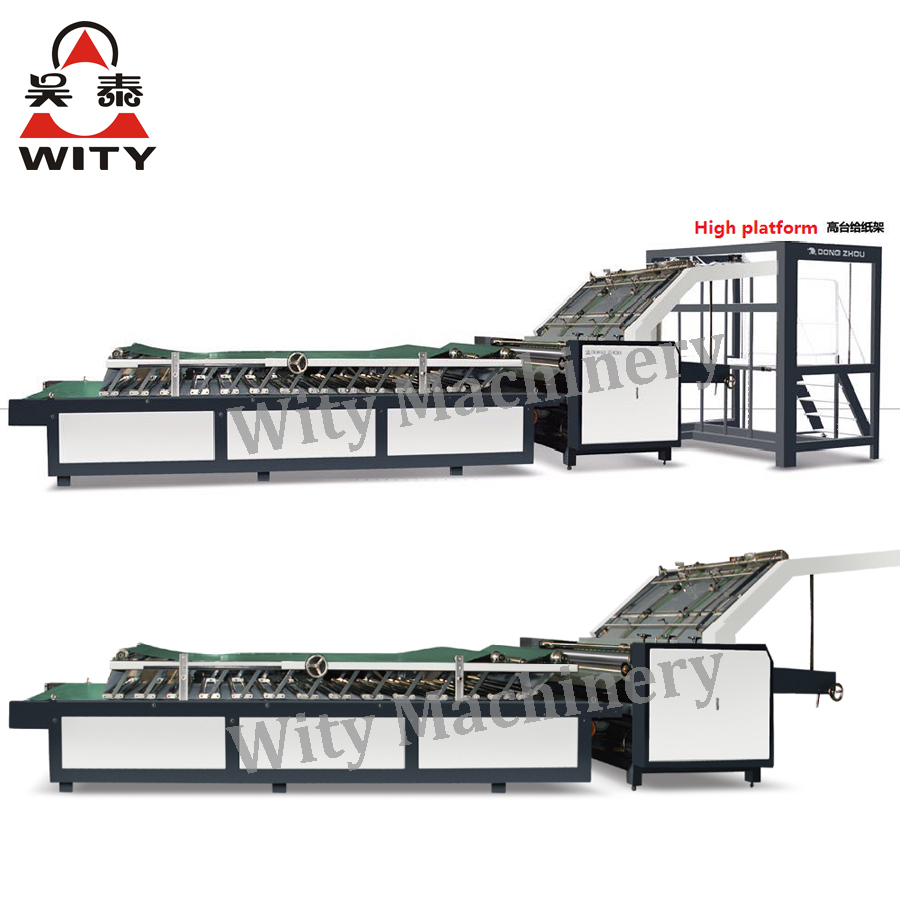

Semi-Automatic Cardboard Laminating Machine
This machine is PLC-controlled, ensuring smooth and accurate feeding. It features automatic bottom paper feeding and manual surface paper feeding for convenient operation and stable location.
Technical Specifications
Machine Overview
High-Efficiency Cardboard Laminating
This semi-automatic laminating machine is engineered for high-precision bonding of face paper to corrugated cardboard. With a robust construction and user-friendly adjustment controls, it ensures consistent material alignment and high-quality results. Designed for packaging and printing workflows, the system provides reliable performance with a high-speed production capacity suitable for various board flutes.
Performance Metrics
Key Operational Metrics
4,500 sheet/min
Machine Speed
7 kw
Total Power
1 mm
Laminating Precision
Technical Specifications
Model Specifications
| Specification | FMT-1300 | FMT-1450 |
|---|---|---|
| Max sheet size | 1200x1300mm | 1300x1400mm |
| Min sheet size | 400x400mm | 400x400mm |
| Weight | 4200kg | 5200kg |
| Dimensions (LxWxH) | 7470x1970x1420mm | 7470x2120x1420mm |
Material Compatibility
Compatible Materials
- Face paper: 250-450gsm
- Bottom paper: A, B, C, E flute corrugated board
