Self-Propelled Crop Reaper
This self-propelled reaper is compatible with walking tractors, diesel, or gasoline engines. It offers simple operation and improved efficiency for harvesting various crops.
Technical Specifications
Overview
Versatile Self-Propelled Harvesting Solution

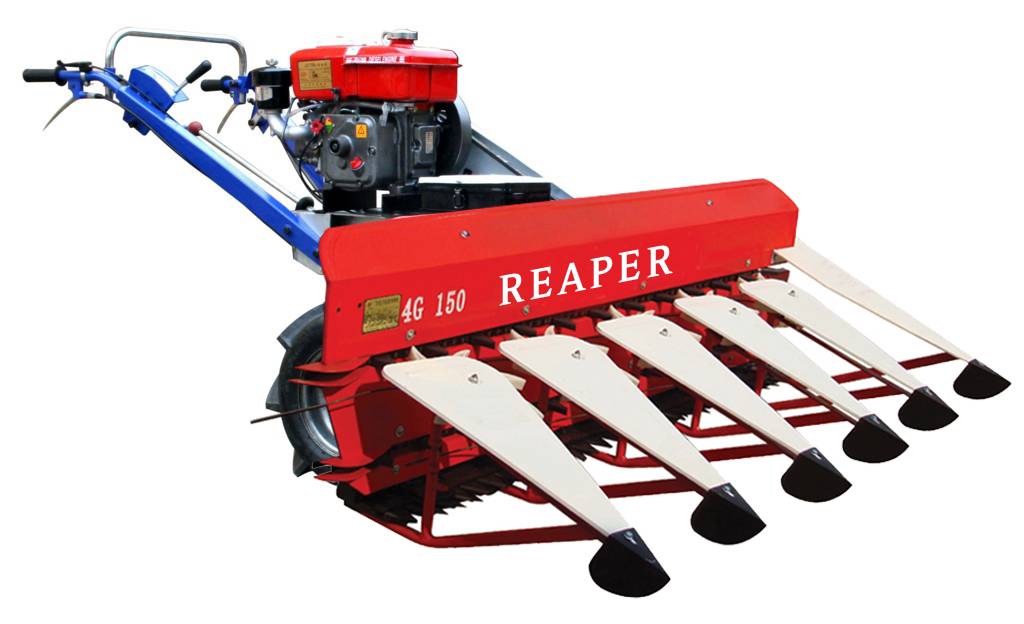

The 4G150 is a high-efficiency self-propelled reaper designed for harvesting a wide variety of individual plants including rice, wheat, sesame, and soybean. Its compact, hand-held design makes it exceptionally maneuverable in diverse terrains such as plains, hills, slopes, and narrow fields. Engineered for low fuel consumption and easy operation, it provides a cost-effective solution for small to medium-sized agricultural operations.
Key Advantages
- Small size and light weight for easy transport
- Low fuel consumption for economical operation
- Flexible maneuverability in tight spaces
- Low cut stubble for better field management
- Compatible with walking tractors
Performance Metrics
Key Performance Metrics
1,500 mm
Cutting Width
3,000 m²/h
Max Productivity
50 mm
Min Cutting Height
Engine & Power
Engine Specifications
| Engine Type | Power Output | Cooling System |
|---|---|---|
| 170F Diesel Engine | 3.64kW (4.5hp) | Air Cooling |
| JF270 Gasoline Engine | 5.15kW (8hp) | Standard |
Operational Features
- Compatible Crops
- RiceWheatSesameSoybeanForage
- Terrain Suitability
- PlainsHillsSlopesNarrow Fields
- Type of Placement
- Sidewise & Banded Placed
Physical Specifications
- Net Weight
- 240 kg
- Gross Weight
- 280 kg
- Dimensions (L*W*H)
- 1.80 x 1.07 x 0.65 m
Logistics
Container Loading Capacity
- 20GP: 18 units
- 40GP: 39 units
- 40HQ: 52 units
