Self-Locking Profile Forming Machine
This self-lock forming machine is designed for creating self-locking profiles in metal sheets. It is ideal for manufacturing components that require secure, interlocking connections, enhancing structural integrity and ease of assembly.
Technical Specifications
Overview
Professional Self-Lock Forming Solution

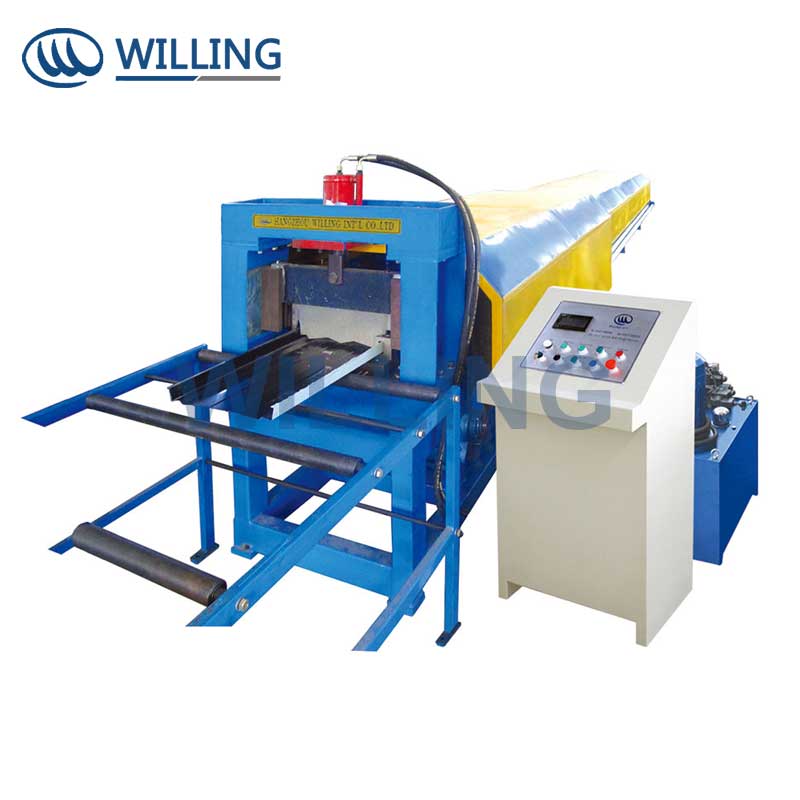

This self-lock forming machine is a high-precision industrial tool designed for the efficient creation of interlocking metal profiles. Engineered with a robust frame and advanced PLC control, it offers stable performance for consistent production of roofing panels and cladding. The machine is fully equipped with an uncoiler, shearing device, and hydraulic station to provide a comprehensive, automated manufacturing workflow.
Performance Metrics
Key Performance Metrics
15 m/min
Max Forming Speed
4,000 kg
Total Weight
7 kW
Total Power
Technical Specifications
Material Parameters
| Parameter | Value/Range |
|---|---|
| Material Type | Color steel sheet |
| Thickness | 0.3-0.7 mm |
| Yield Stress | 230-300 Mpa |
Mechanical and Electrical Details
- Roller material: 45# steel with chrome coating
- Driven type: Chain transmission
- Control system: PLC with touch screen interface
- Hydraulic system pressure: 12 Mpa
- Main motor power: 3 kW
- Hydraulic station power: 4 kW
Capabilities
- Industrial Applications
- Roofing PanelsCladdingStructural ComponentsMetal Profiles
