Sectional Drain Cleaning Machine
This sectional drain cleaning machine is applicable for pipes of Φ200-600mm in civil projects. The machine features removable sectional flexible shafts with large bending, twisting, and ductility resistance.
Technical Specifications
Overview
Professional Power Sectional Drain Cleaner

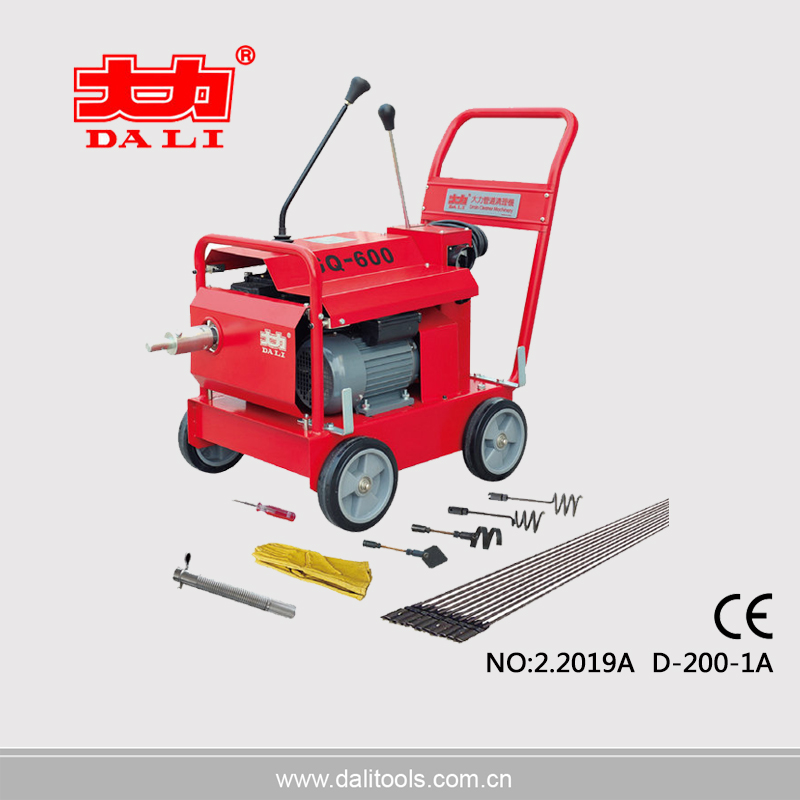

The GQ-600 is a robust and efficient power sectional drain cleaning machine engineered for clearing complex blockages in civil and industrial drainage systems. Featuring a high-torque 1.5kW motor and a versatile four-speed transmission, it allows operators to precisely adjust spinning speeds to match specific application requirements. Its sectional design with flexible shafts ensures easy transportation, assembly, and extended reach, making it an essential tool for professional plumbing and maintenance personnel.
Technical Specifications
- Applicable Pipe Diameter
- 200-600mm (8-24 inches)
- Rated Power
- 1.5 kW
- Operating Speed Range
- 180-600 rpm (4-speed transmission)
- Voltage Options
- 220V110V
- Frequency Options
- 50Hz60Hz
Design & Features
Mobility
Four-wheel cartPortableHeavy-duty
Key Operational Benefits
- High bending and twisting resistance
- Variable speed control for different applications
- Sectional design allows for extended length
- Easy to assemble and transport
- Flexible Shaft Diameter
- 8mm (5/16 inch)
