Technical Specifications
Product Overview
High-Efficiency Thread Rolling Performance

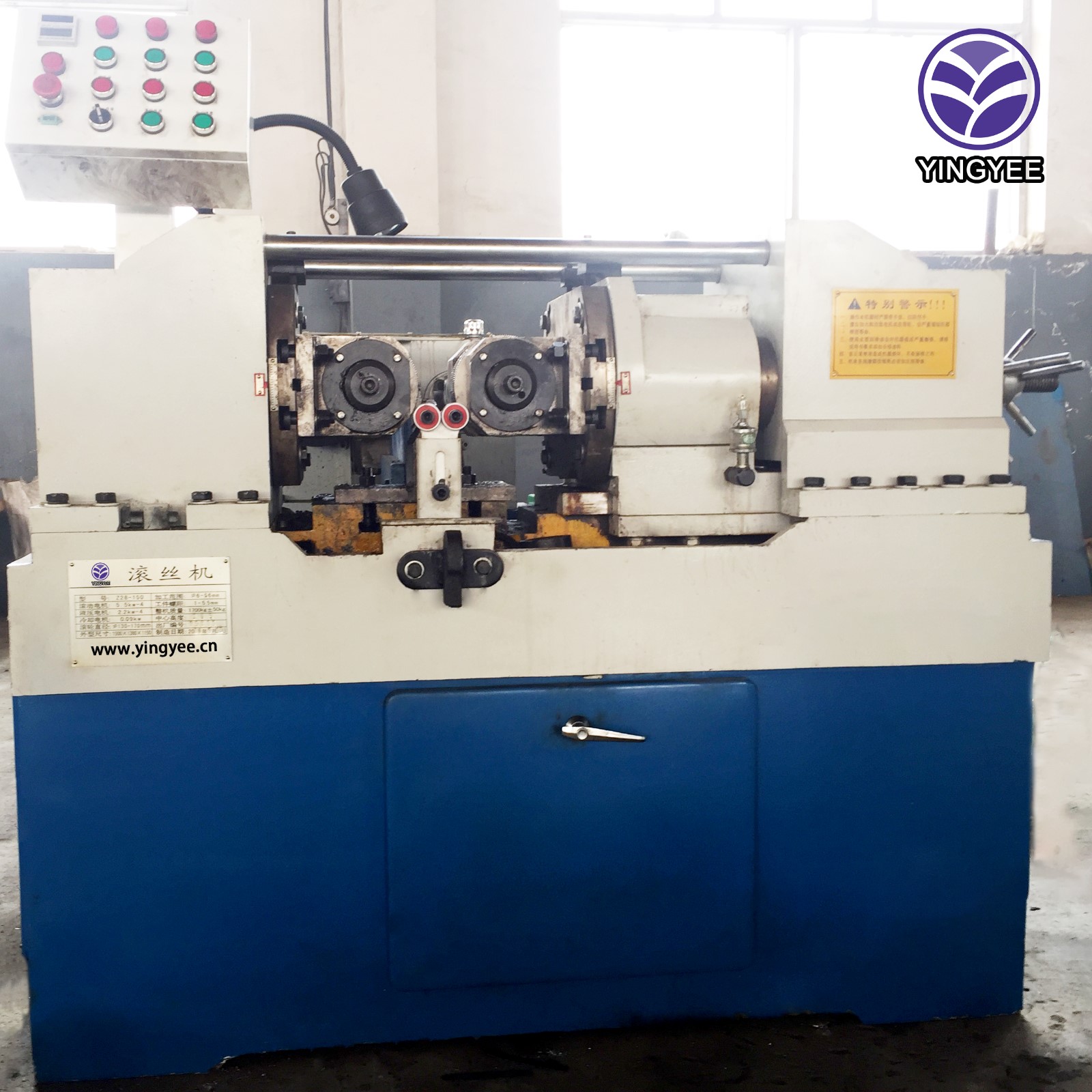

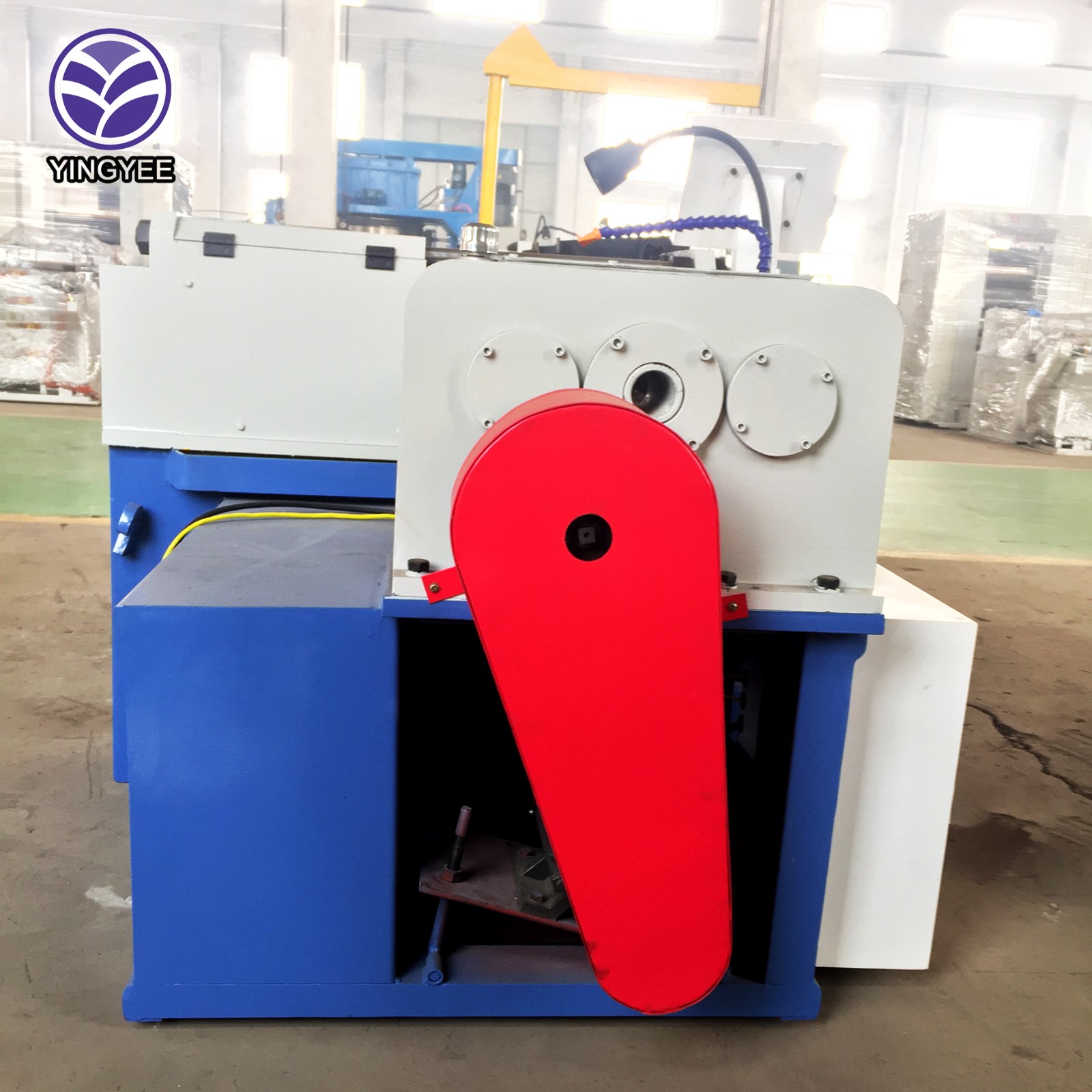

The Z28-200 is a high-precision screw thread rolling machine designed for the versatile production of architectural wall screws, trapezoidal screws, and modulus threads. It features a robust, rational construction that minimizes vibration and noise while delivering exceptional active force. Equipped with automated lubrication and multiple operation modes including manual, pedal, and semi-automatic, it offers high production efficiency with significantly reduced labor intensity.
Technical Specifications
Processing Capabilities
6 mm
Min Thread Diameter
56 mm
Max Thread Diameter
1 mm
Min Thread Pitch
5.5 mm
Max Thread Pitch
Drive System Power
| Motor Type | Power |
|---|---|
| Rolling Motor | 5.5 kW |
| Hydraulic Motor | 2.2 kW |
| Cooling Motor | 0.09 kW |
Machine Physical Data
- Weight: 1700kg ± 50kg
- Dimensions: 1500mm x 1380mm x 1150mm
- Rolling Wheel Diameter: 130-170mm
Operation & Features
Machine Advantages
Automatic LubricationLow NoiseHigh PrecisionLow Failure Rate
- Control & Operation Modes
- ManualPedalSemi-AutomaticAutomatic
