Technical Specifications

Product Overview

Sanitary Stainless Steel Union

This sanitary union fitting is designed to provide hygienic and secure connections in food, beverage, and pharmaceutical processing equipment. Featuring a precision-engineered nut, liner, ferrule, and food-grade gasket, the assembly ensures a smooth, crevice-free internal surface. Its stainless steel construction offers superior corrosion resistance, durability, and ease of cleaning for demanding sanitary environments.

Technical Specifications

Supported Standards

SMS
DIN
3A
RJT
ISO
IDF
DS
BPE

Material Grade: SS 304SS 316
Size Range (mm): 25mm - 101.6mm
Size Range (DN): DN10 - DN150

Components & Features

Assembly Components

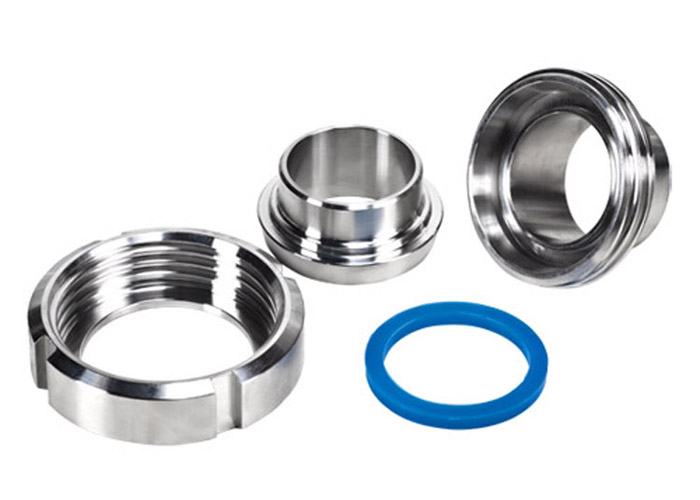

NutLinerFerruleFood-grade Gasket

Key Benefits

Leak-proof sealing
Crevice-free internal surface
Easy assembly and disassembly
High corrosion resistance

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

Sanitary Stainless Steel Union Fitting

This sanitary fitting consists of a nut, liner, ferrule, and gasket, designed for hygienic and secure connections. It is constructed from stainless steel for corrosion resistance and ease of cleaning.

Request a Quote Download PDFPDF

Sanitary Stainless Steel Union Fitting - Image 1
