Technical Specifications
Overview

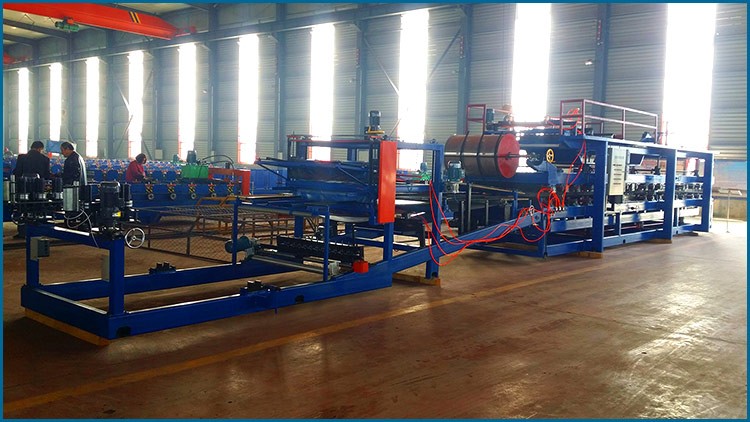

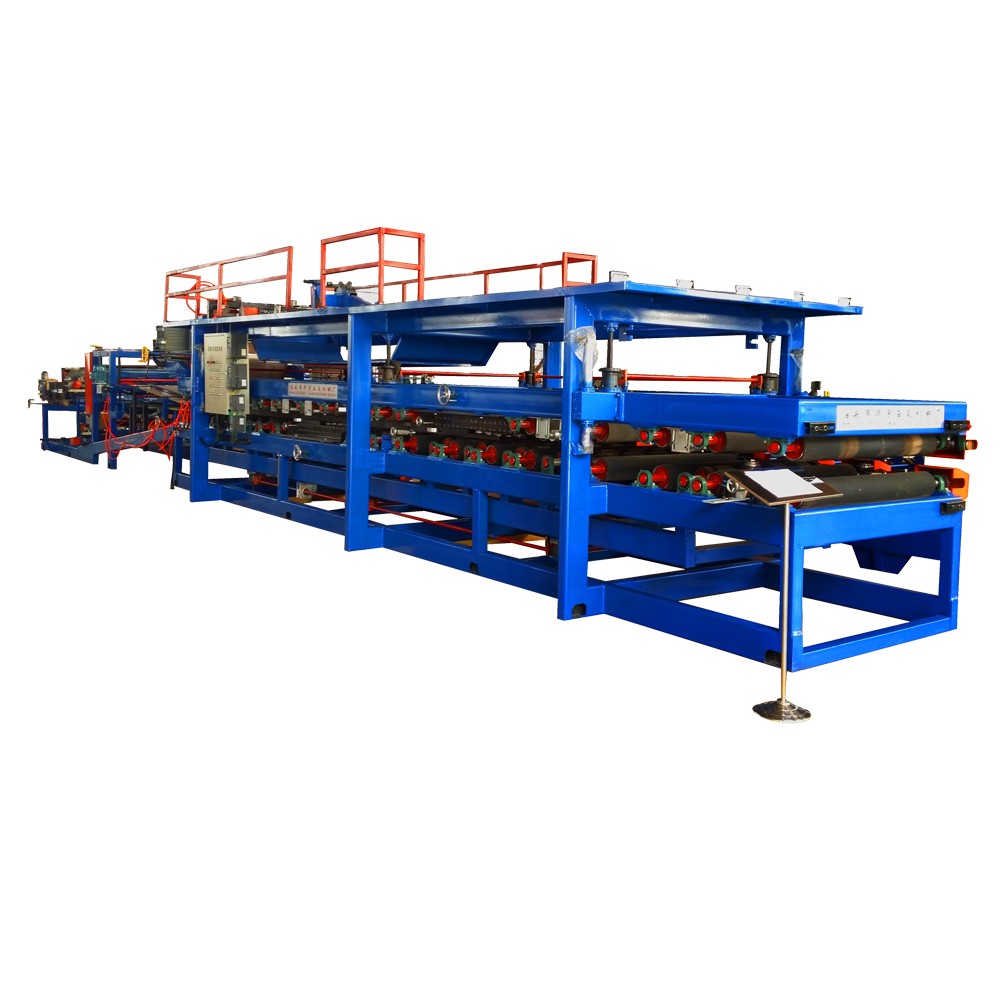

High-Efficiency Sandwich Panel Production Line
This automated roll forming machine is designed for the continuous production of high-quality insulated sandwich panels used in roofing and walling applications. Featuring a robust steel frame and precise PLC control system, the machine integrates coil decoiling, metal roll forming, core material insertion, and lamination into a streamlined process. It is engineered for consistent, high-precision performance, offering adjustable parameters to accommodate various panel thicknesses and core materials like EPS and rock wool.
Technical Specifications
Production Speed
2 m/min
Slowest
4.5 m/min
Fastest
- Total Power
- 30 KW
- Machine Weight
- 25 ton
- Dimensions (L x W x H)
- 35000mm x 2500mm x 2600mm
Manufacturing Capability
Production Process Steps
- Composite Decoiler

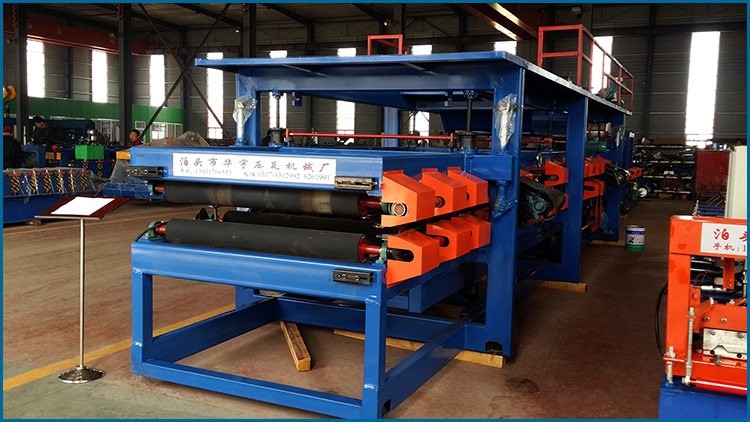

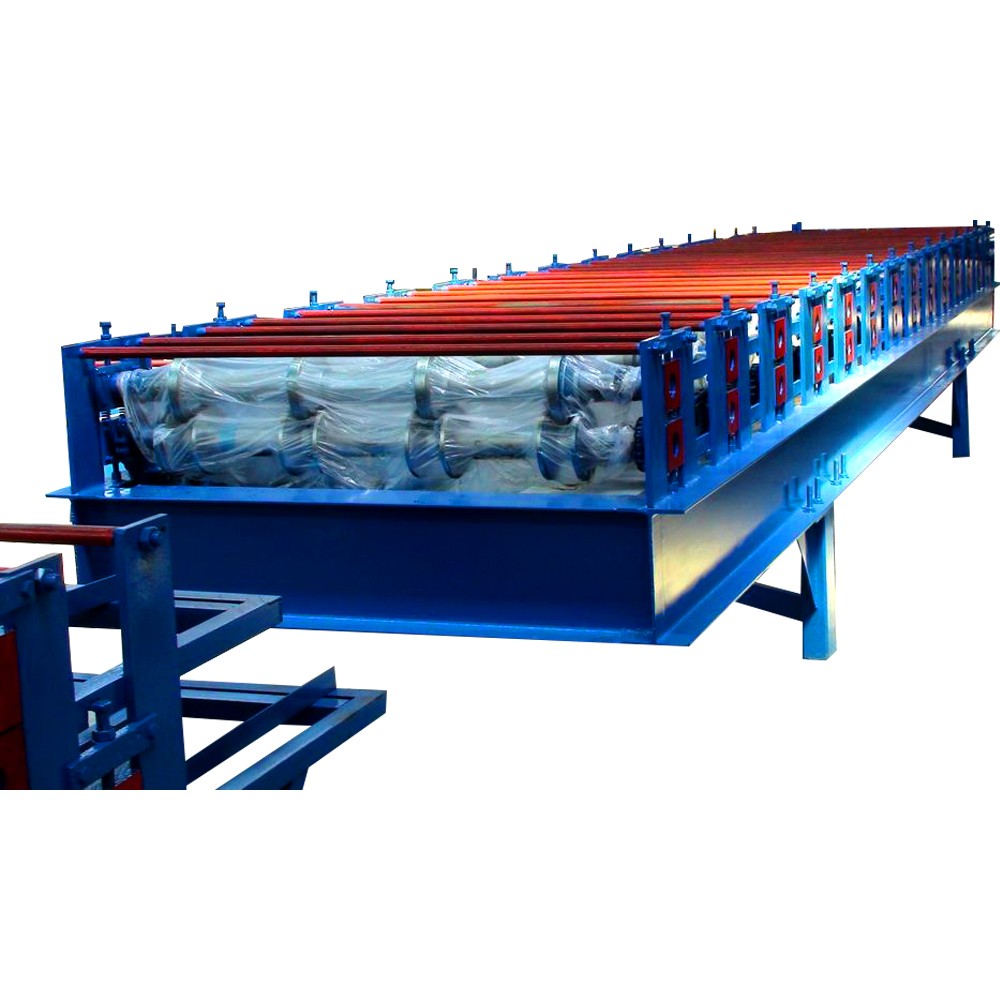

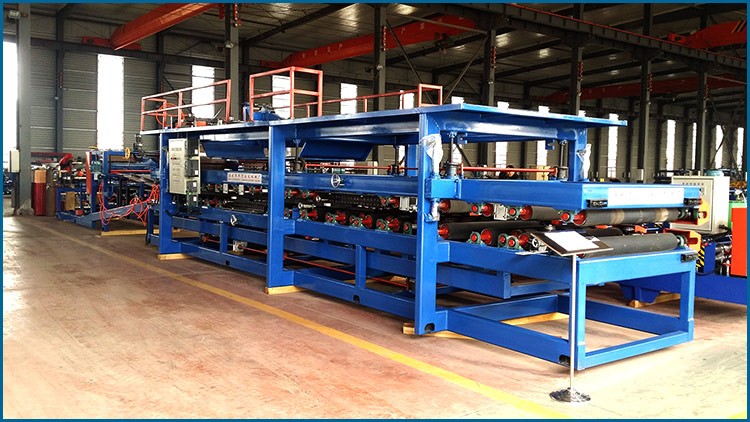

- Roll Forming
- Laminating (Ribbon, Gelatinizing, Heating, Compounding)
- Crimping and Notching
- Edge Trimming
- Cutting System
- Runout Table
- Compatible Core Materials
- EPSRock WoolGlass Silk Floss
- Plate Thickness Range
- 0.3 - 0.8 mm
- Core Thickness Range
- 20 - 300 mm
Control & Features
Control System
PLC IntegratedAutomated OperationHigh Precision
