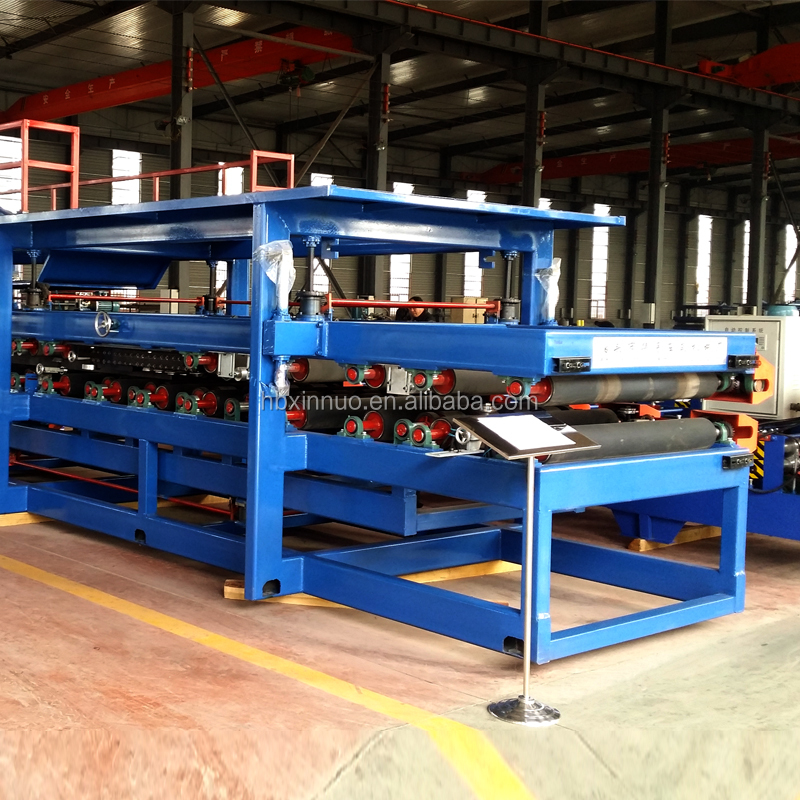

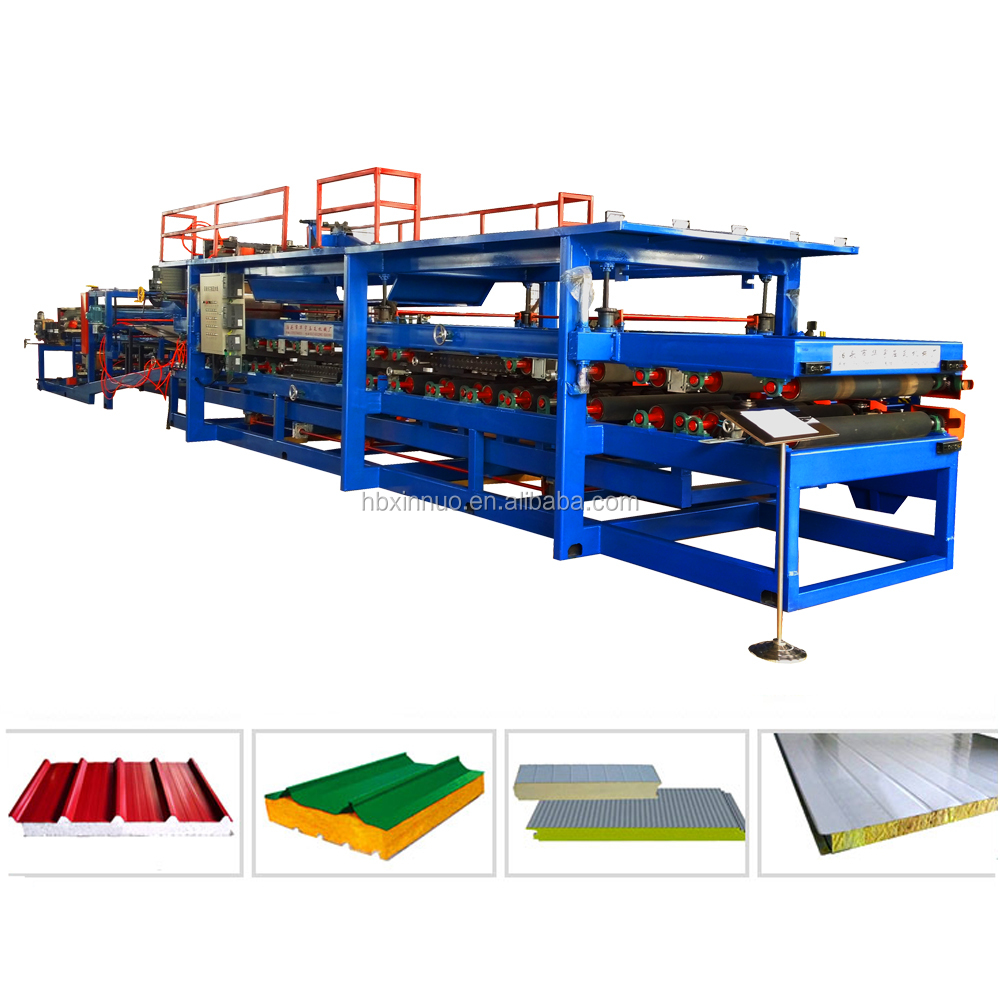

Sandwich Panel Roll Forming Machine
This automated machine produces sandwich panels with sheet metal profiles. It utilizes a roll forming process to ensure precise and consistent shaping of metal sheets.
Technical Specifications
Overview

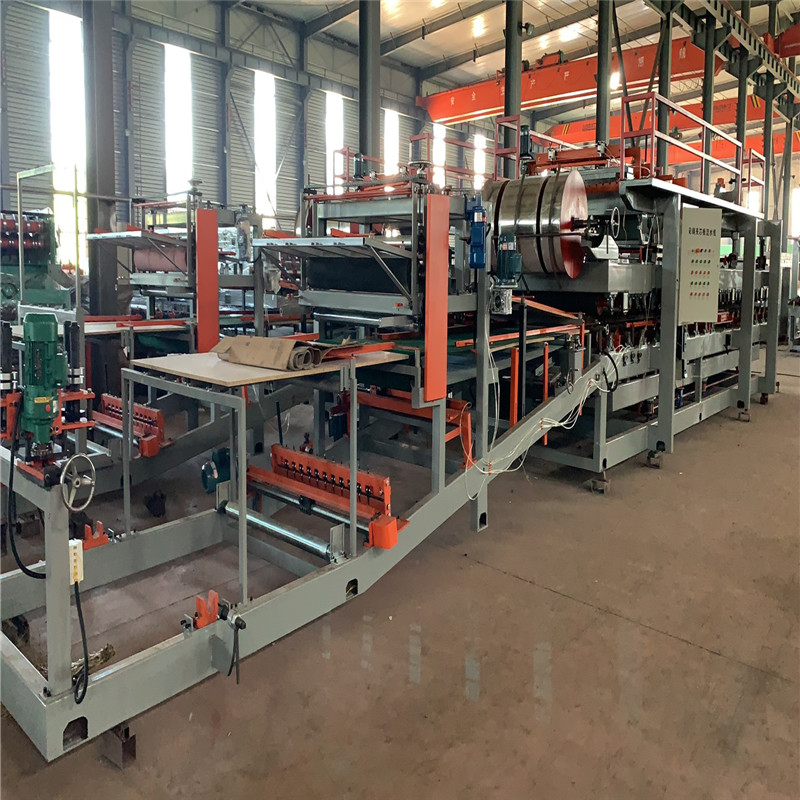

High-Efficiency Sandwich Panel Production Line
This automated roll forming production line is designed for the high-volume manufacture of sandwich panels and sheet metal profiles. Utilizing a precise PLC control system, the machine ensures stable, high-quality production across a range of core materials. It features a complete integrated process from decoiling and forming to laminating, trimming, and automated cutting, providing a reliable solution for industrial construction and insulation panel manufacturing.
Technical Specifications
Production Capacity
4.5 m/min
Fastest Speed
2 m/min
Slowest Speed
- Plate Thickness
- 0.3-0.8mm
- Core Thickness
- 20-300mm
- Total Power
- 30 KW
- Total Machine Weight
- 25 ton
- Compatible Core Materials
- EPSRock WoolGlass Silk Floss
Dimensions
- Total Production Line Dimensions
- 35000mm x 2500mm x 2600mm
Operational Features

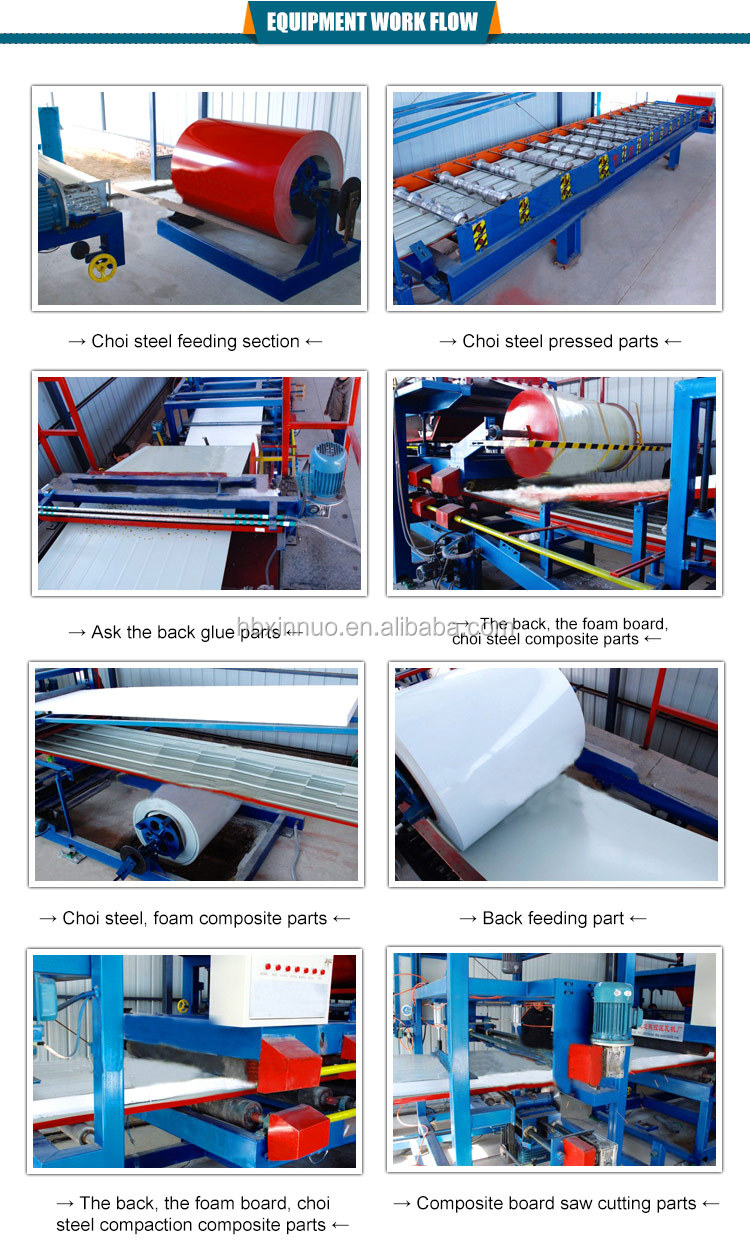

Production Workflow
- Composite Decoiler
- Roll Forming
- Laminating System (Ribbon, Gelatinizing, Heating, Compounding)
- Crimping and Notching
- Edge Trimmer
- Cutting System
- Runout Table
Terms and Conditions
- Warranty Period
- 12 months limited warranty
- Standard Delivery
- 60 days after receipt of advance payment
