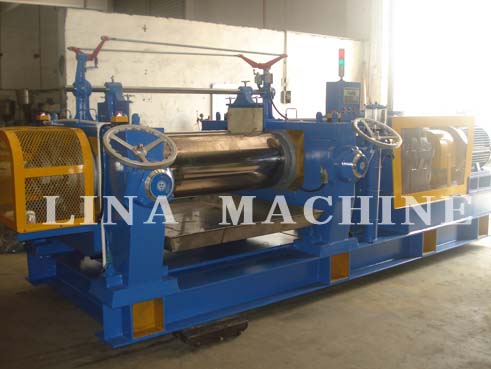

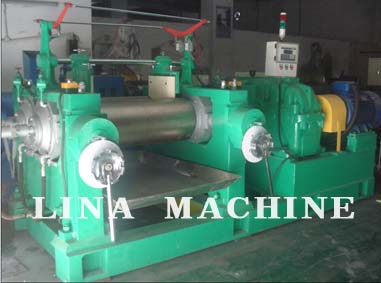

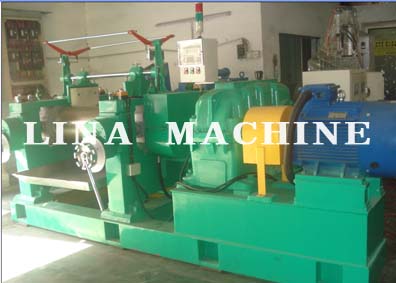

Rubber Mixing Mill with Alloy Rollers
This 16-inch open mixing mill features rollers made of vanadium-titanium alloy and chilled cast iron, providing exceptional surface abrasion resistance with a surface hardness of HRC55-65. The machine is equipped with an automatic oil feeding and lubrication system for the transmission.
Technical Specifications
Overview
High-Performance Rubber Mixing Mill
This heavy-duty open mixing mill is engineered for professional rubber processing, including compounding, mastication, and refining. Featuring alloy chilled cast iron rollers with mirror-finished surfaces, the unit ensures efficient heat transfer and precise material consistency. Equipped with Swedish-imported bearings and a robust steel casting frame, it offers exceptional durability and operational stability for demanding industrial environments.
Key Features
- Equipment Highlights
- Alloy Chilled Cast Iron RollersSwedish Imported BearingsPrecision Gap AdjustmentInternal Cooling/HeatingHeavy Duty Steel CastingAutomated Lubrication System
Technical Specifications
Model Specifications
| Model | Roll Dia (mm) | Length (mm) | Motor (kw) | Max Gap (mm) |
|---|---|---|---|---|
| XK-300 | 300 | 700 | 15/18.5 | 10 |
| XK-360 | 360 | 900 | 30 | 10 |
| XK-400 | 400 | 1,000 | 40 | 10 |
| XK-450 | 450 | 1,200 | 55 | 12 |
| XK-500 | 500 | 1,300 | 75 | 14 |
| XK-550 | 550 | 1,500 | 90/110 | 16 |
| XK-560 | 560 | 1,530 | 160 | 16 |
| XK-660 | 660 | 2,100 | 132/160 | 16 |
Operational Metrics
Roll Surface Hardness
550 BHN
Max Hardness
- Lubrication System
- Manual or Motorized grease pump
