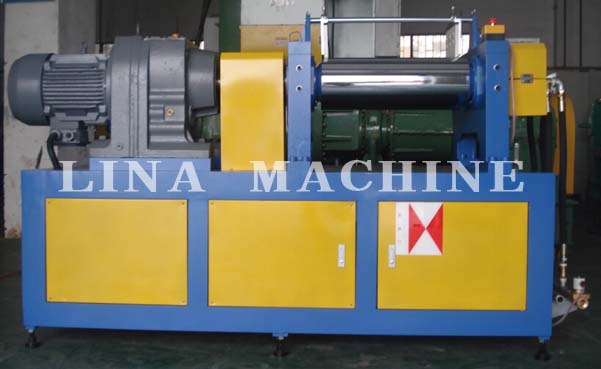

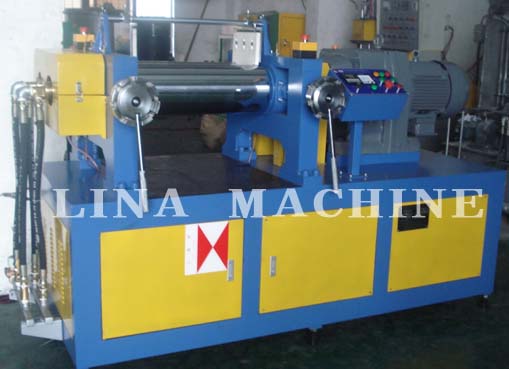

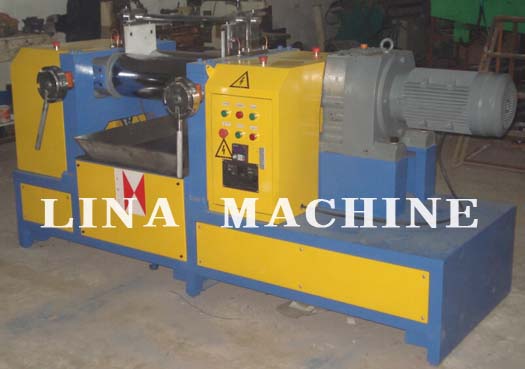

9-Inch Open Mixing Mill with Alloy Steel Rollers
This 9-inch open mixing mill features special alloy steel rollers designed for durability and abrasion resistance. Its motor reducer with hard tooth surface ensures large torsion and low noise during operation.
Technical Specifications
Overview
High-Performance Open Mixing Mill
This 9-inch open mixing mill is designed for efficient compounding and processing of rubber, plastics, and viscous materials. It features precision-engineered alloy steel rollers with a mirror-finished surface for optimal material handling and durability. The unit is built for versatility, supporting both electric heating and water cooling, making it suitable for laboratory research, pilot plants, and small-scale production.
Technical Specifications
- Roll Diameter
- 210 mm
- Roll Working Length
- 600 mm
- Max Roll Space
- 10 mm
- Speed Ratio
- 1.27
- Feeding Capacity
- 10 kg
- Motor Power
- 7.5 / 11 (Optional)
- Operating Temperature
- 0 to 250 °C
- Power Requirements
- 3 PhaseAC 380V20A
Physical Dimensions
- Machine Weight
- 1200 kg
- Overall Dimensions
- 2200 x 830 x 1300 mm
Construction Details
Major Constructional Details
| Component | Details |
|---|---|
| Rolls | Alloy chilled cast iron, mirror finished, hollowed for cooling/heating |
| Roll Clearance | Worm and worm gear drive for parallel sheeting |
| Gearbox | Helical reduction, direct coupled with rear roll and motor |
| Base Frame | Heavy duty steel, no deep foundation required |
| Lubrication | Manual/motorized grease pump for anti-friction bearings |
