Rotor Inverter Condensing Unit
This condensing unit utilizes a variable frequency rotor compressor for efficient and reliable performance. It is compatible with R407C, R134A, R507, R449A, and R404A refrigerants.
Technical Specifications
Product Overview

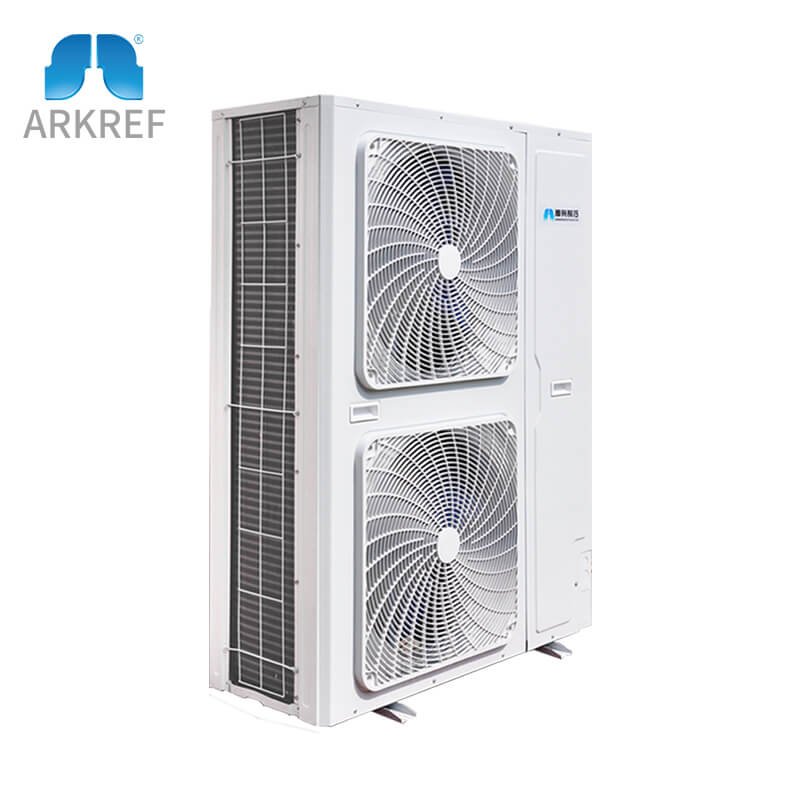

High-Efficiency Inverter Condensing Unit
The S6 Condensing Unit is an advanced refrigeration solution featuring DC frequency conversion technology for stepless energy adjustment. Engineered for durability, it utilizes corrosion-resistant galvanized steel with electrostatic spraying. The system incorporates enhanced vapor injection for 25-30% higher cooling capacity, ensuring energy efficiency and stable performance in diverse environmental conditions.
Technical Specifications
- Compressor Type
- Rotor Inverter Compressor

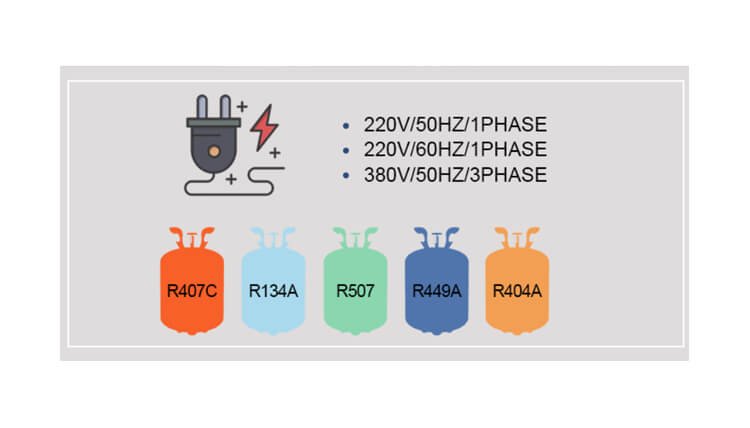

- Supported Refrigerants
- R407CR134AR507R449AR404A
- Power Supply
- 1x220V 50Hz/60Hz
- Evaporation Temperature
- -40℃ to -10℃
- Max Ambient Temperature
- 35 ℃
Components
Internal Components
| Component | Model/Spec |
|---|---|
| Condenser Model | F-60 |
| Liquid Reservoir | SCYQ-7V |
| Filter Drier | DCL163 |
| Sight Glass | SGN10S |

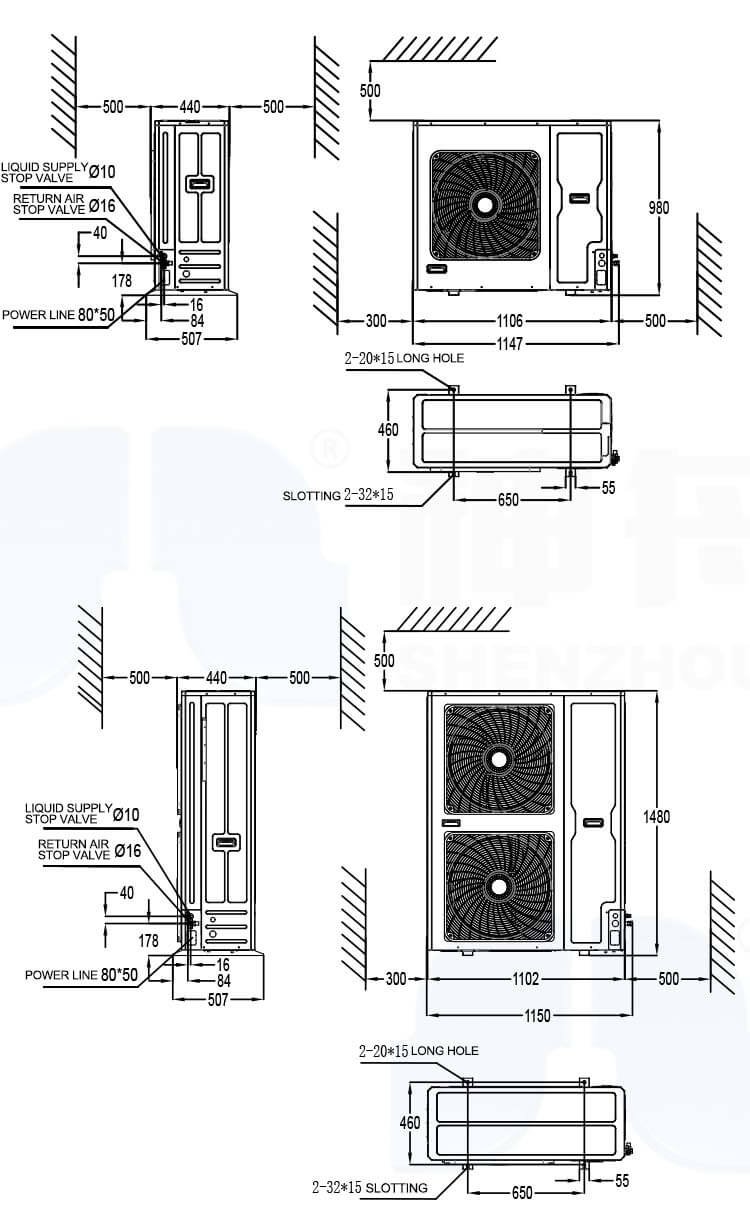

Dimensions and Connections
Tube Diameters
16 mm
Suction Tube
10 mm
Exhaust Pipe
- Physical Dimensions (LWH)
- 110cm x 41cm x 147cm
Performance Features
Key Performance Indicators
- Noise level controlled at 55 dB

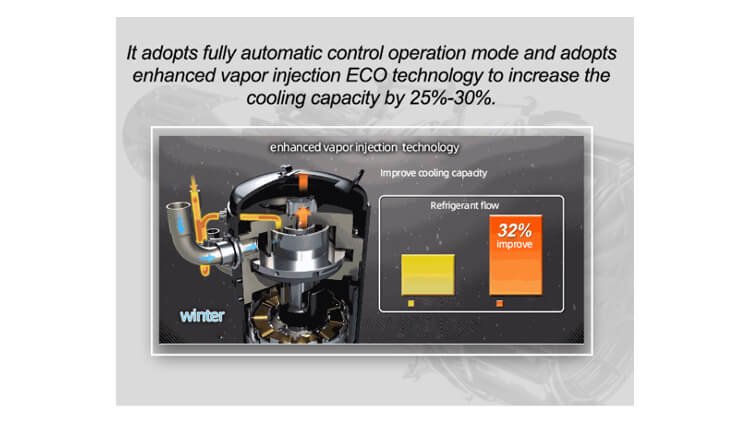

- Enhanced Vapor Injection (EVI) technology
- Energy efficiency with stepless regulation
- Corrosion-resistant powder-coated shell
