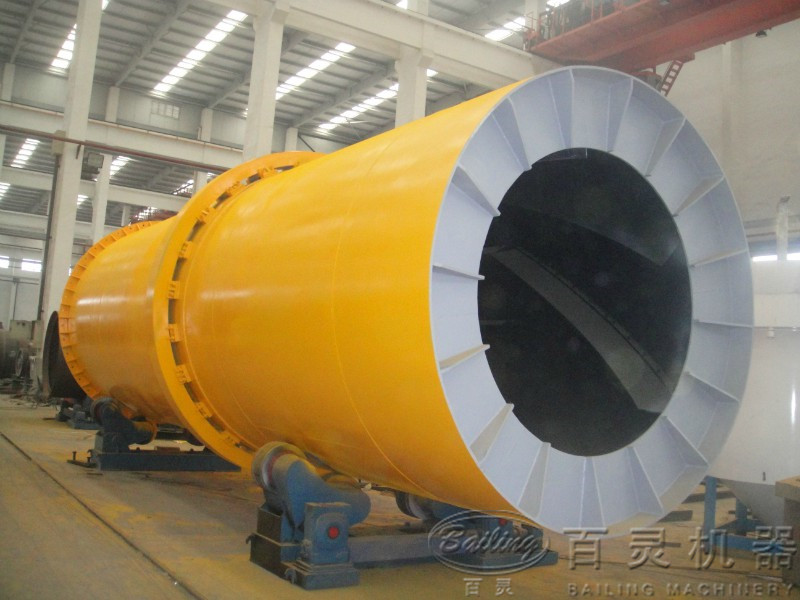

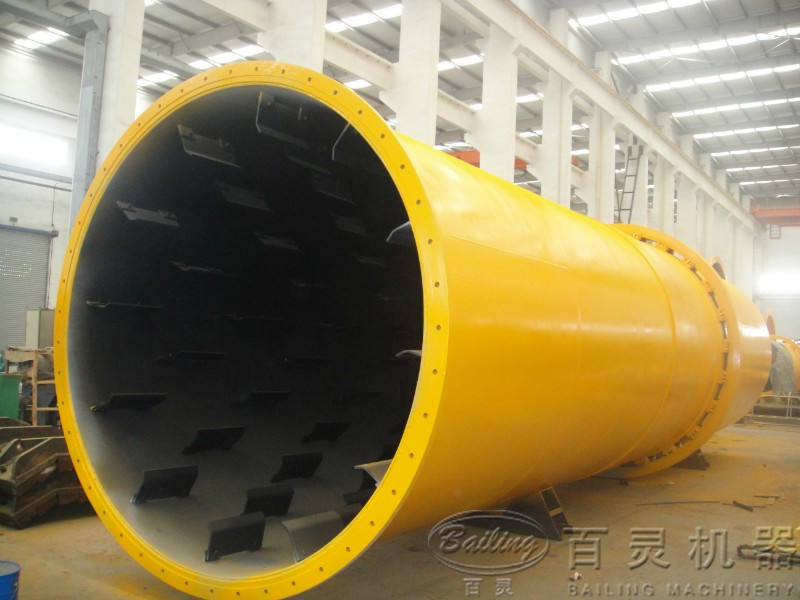

Rotary Indirect Heat Transfer Dryer
The dryer machine features a rotating cylinder with a slightly inclined design. Its simple structure, refined manufacture, high capacity, and convenient transportation make it suitable for various industrial applications.
Technical Specifications
Product Overview
Industrial Rotary Indirect Heat Transfer Dryer
This industrial rotary dryer is designed for efficient moisture removal in bulk material processing. Utilizing a rotating cylinder with an inclined design, it ensures high thermal efficiency through a downstream drying method. The system features robust construction with self-aligning roller devices and advanced feeding mechanisms to prevent jams and ensure uniform material processing.
Key Advantages
Operational Benefits
- Strong overload resistance capacity
- Low fuel consumption and drying costs
- High thermal efficiency via downstream drying
- Zero horizontal thrust design reduces gear wheel wear
- Self-aligning roller device minimizes power loss
- Adjustable operating parameters for different material properties
Technical Specifications
Model Specifications
| Model (m) | Volume (m³) | Throughput (t/h) | Power (kw) | Weight (t) |
|---|---|---|---|---|
| Φ1.2×8.0 | 9 | 1.9-2.4 | 7.5 | 9 |
| Φ1.2×10 | 11.3 | 2.4-3.0 | 7.5 | 11 |
| Φ1.5×12 | 21.2 | 4.5-5.7 | 15 | 18.5 |
| Φ1.5×14 | 24.7 | 5.3-6.6 | 15 | 19.7 |
| Φ1.5×15 | 26.5 | 5.7-7.1 | 15 | 20.5 |
| Φ1.8×12 | 30.5 | 6.5-8.1 | 18.5 | 21.5 |
| Φ1.8×14 | 35.6 | 7.6-9.5 | 18.5 | 23 |
| Φ2.2×12 | 45.6 | 9.7-12.2 | 22 | 33.5 |
| Φ2.2×14 | 53.2 | 11.4-14.2 | 22 | 36 |
| Φ2.2×16 | 60.8 | 13.0-16.2 | 22 | 38 |
| Φ2.4×14 | 63.3 | 13.5-16.9 | 37 | 45 |
| Φ2.4×18 | 81.4 | 17.4-21.7 | 37 | 49 |
| Φ2.4×20 | 90.4 | 19.3-24.1 | 45 | 54 |
| Φ2.4×22 | 99.5 | 21.2-26.5 | 45 | 58 |
| Φ2.6×24 | 127.4 | 27.2-34.0 | 55 | 73 |
| Φ3.0×20 | 141.3 | 30.1-37.7 | 75 | 85 |
| Φ3.0×25 | 176.6 | 37.7-47.1 | 75 | 95 |
| Φ3.2×25 | 201 | 42.9-53.6 | 90 | 110 |
| Φ3.6×28 | 285 | 60.8-76.0 | 160 | 135 |
Operational Parameters
- Installation Angle
- 3 %
- Highest Air Temperature
- 800 °C
