Product Overview

Efficient Industrial Drying Solution

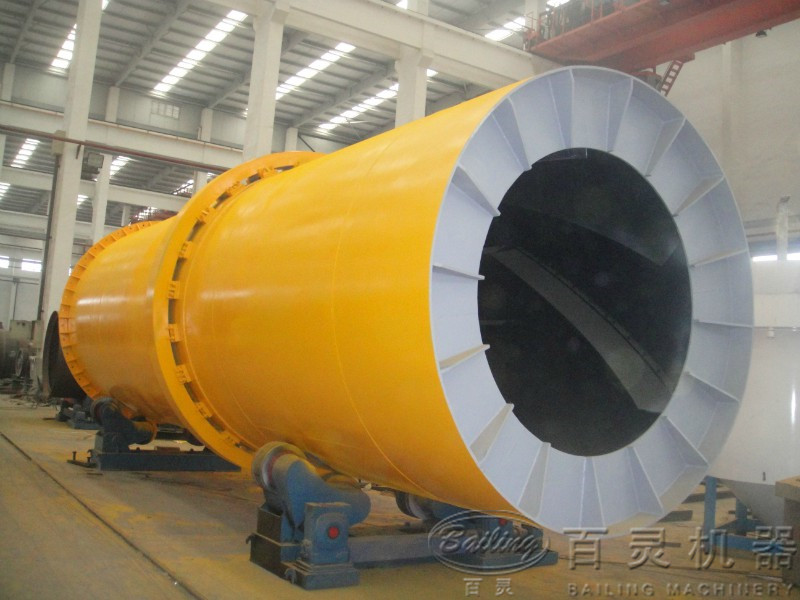

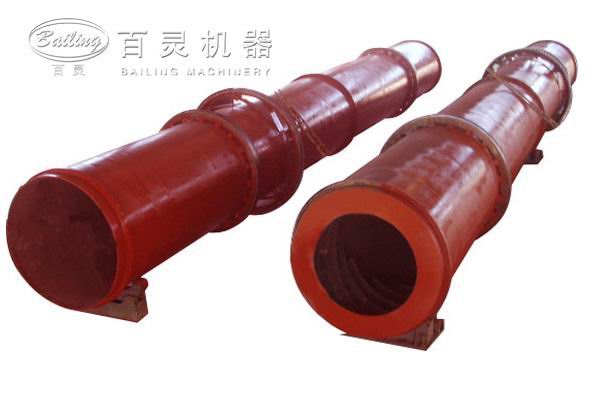

The Rotary Drum Mining Dryer is a high-performance solution designed for the building materials, metallurgy, chemical engineering, and cement industries. It utilizes a rotating body combined with internal throwing flitches to disperse materials uniformly, ensuring optimal contact with hot countercurrent air for accelerated heat and mass transfer. With a robust design that includes a transmission device, supporting device, and sealing rings, this dryer offers reliable operation, high output, and energy-efficient performance for both large-particle materials and specialized powdery substances.

Applications

Compatible Materials

Mineral Slag
Limestone
Coal Dust
Clay
Ore
Blast Furnace Slag
Metal Powder
Phosphatic Fertilizer
Ammonium Sulfate
HP Foaming Agent
Distilled Grain Slag
Calcium Carbonate
Activated Clay
Magnetic Powder
Black Lead
Decoction Dregs

Industries Served: Building MaterialsMetallurgyChemical EngineeringCement IndustryMining

Technical Specifications

Model Capacity and Power Data

Model	Volume (m³)	Throughput (t/h)	Power (kw)	Weight (t)
Φ1.2×8.0	9	1.9-2.4	7.5	9
Φ1.2×10	11.3	2.4-3.0	7.5	11
Φ1.5×12	21.2	4.5-5.7	15	18.5
Φ1.5×14	24.7	5.3-6.6	15	19.7
Φ1.5×15	26.5	5.7-7.1	15	20.5
Φ1.8×12	30.5	6.5-8.1	18.5	21.5
Φ1.8×14	35.6	7.6-9.5	18.5	23
Φ2.2×12	45.6	9.7-12.2	22	33.5
Φ2.2×14	53.2	11.4-14.2	22	36
Φ2.2×16	60.8	13.0-16.2	22	38
Φ2.4×14	63.3	13.5-16.9	37	45
Φ2.4×18	81.4	17.4-21.7	37	49
Φ2.4×20	90.4	19.3-24.1	45	54
Φ2.4×22	99.5	21.2-26.5	45	58
Φ2.6×24	127.4	27.2-34.0	55	73
Φ3.0×20	141.3	30.1-37.7	75	85
Φ3.0×25	176.6	37.7-47.1	75	95
Φ3.2×25	201	42.9-53.6	90	110
Φ3.6×28	285	60.8-76.0	160	135
