Rotary Drum Dryer
This industrial dryer, also known as a rotary drum dryer, is used across multiple industries. It is commonly applied in food processing, chemical engineering, medicine, and mining.
Technical Specifications
Overview
Industrial Rotary Drum Dryer

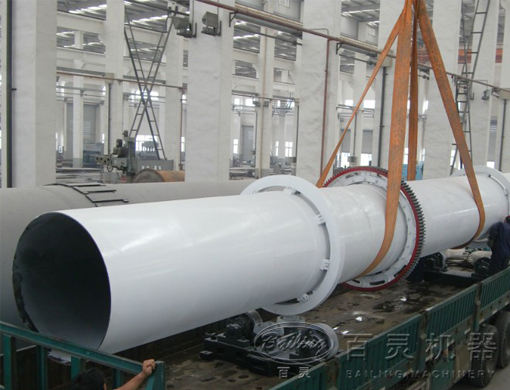

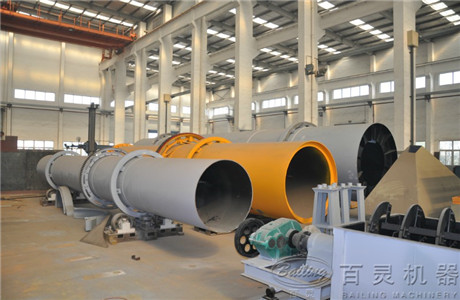

This industrial rotary drum dryer is designed for high-efficiency moisture removal across food, chemical, medicine, and mining sectors. It utilizes a rotating drum mechanism with evenly distributed shoveling plates to ensure optimal heat transmission and mass transfer for wet materials. The system features an automatic control panel for streamlined operation, durable stainless steel construction, and a reliable texrope transmission system for stable, low-noise performance.
Key Features
Design Highlights
- Automatic control system for precise process regulation
- Durable stainless steel drum construction
- Wide 180-degree gate design for easy access
- Texrope transmission for stable and quiet operation
- Suitable Industries
- Food ProcessingForageChemical EngineeringMedicineMining
Technical Specifications
Model Specifications
| Model | Diameter (mm) | Length (m) | Power (kW) | Volume (m3) |
|---|---|---|---|---|
| 0.6×8-12 | 600 | 8-12 | 2.26 | 4 |
| 0.8×10-10 | 800 | 10-12 | 4 | 5.02 |
| 1.0×10-12 | 1,000 | 10-12 | 5.5 | 7.85 |
| 1.2×12-18 | 1,200 | 12-18 | 11-15 | 13.31 |
| 1.5×12-18 | 1,500 | 12-18 | 15-22 | 21.2 |
| 1.8×12-18 | 1,800 | 12-18 | 185-30 | 48.22 |
| 2.2×12-22 | 2,200 | 12-22 | 22-30 | 70.43 |
| 2.8×15-24 | 2,800 | 15-24 | 30-55 | 147.8 |
