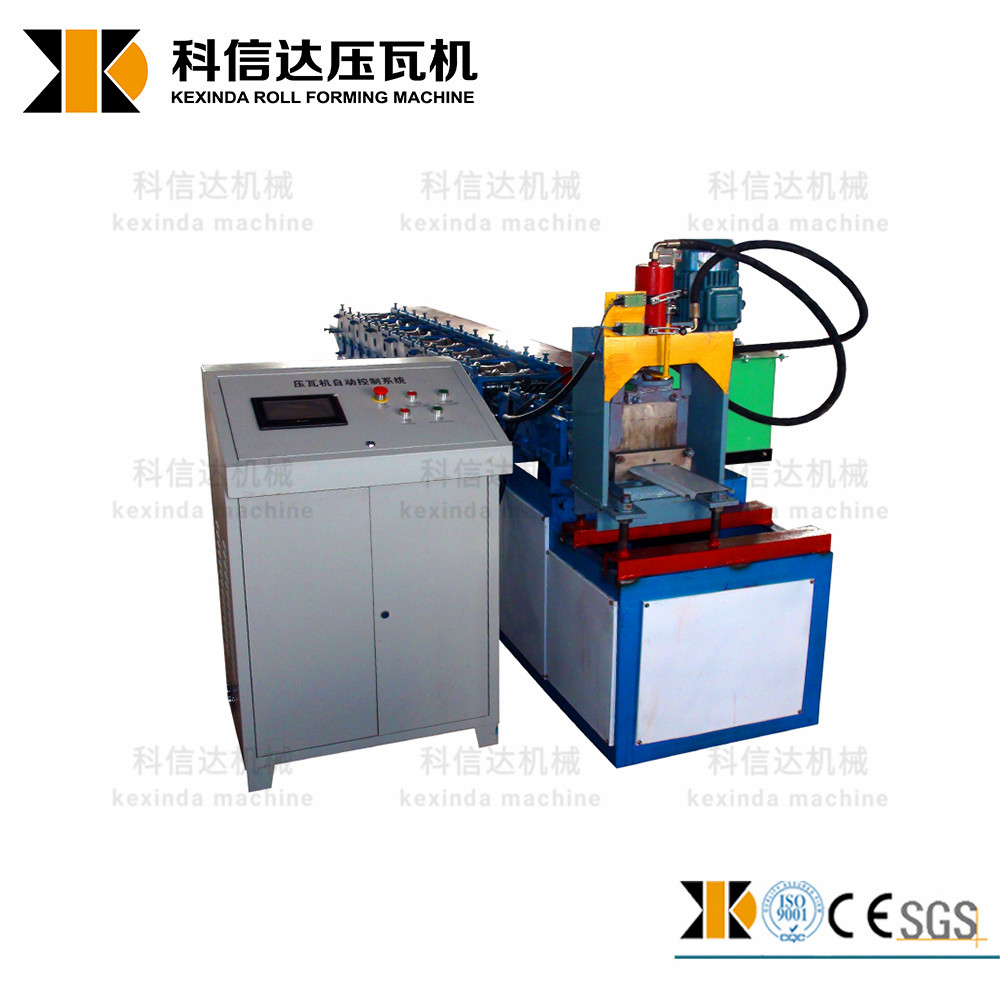

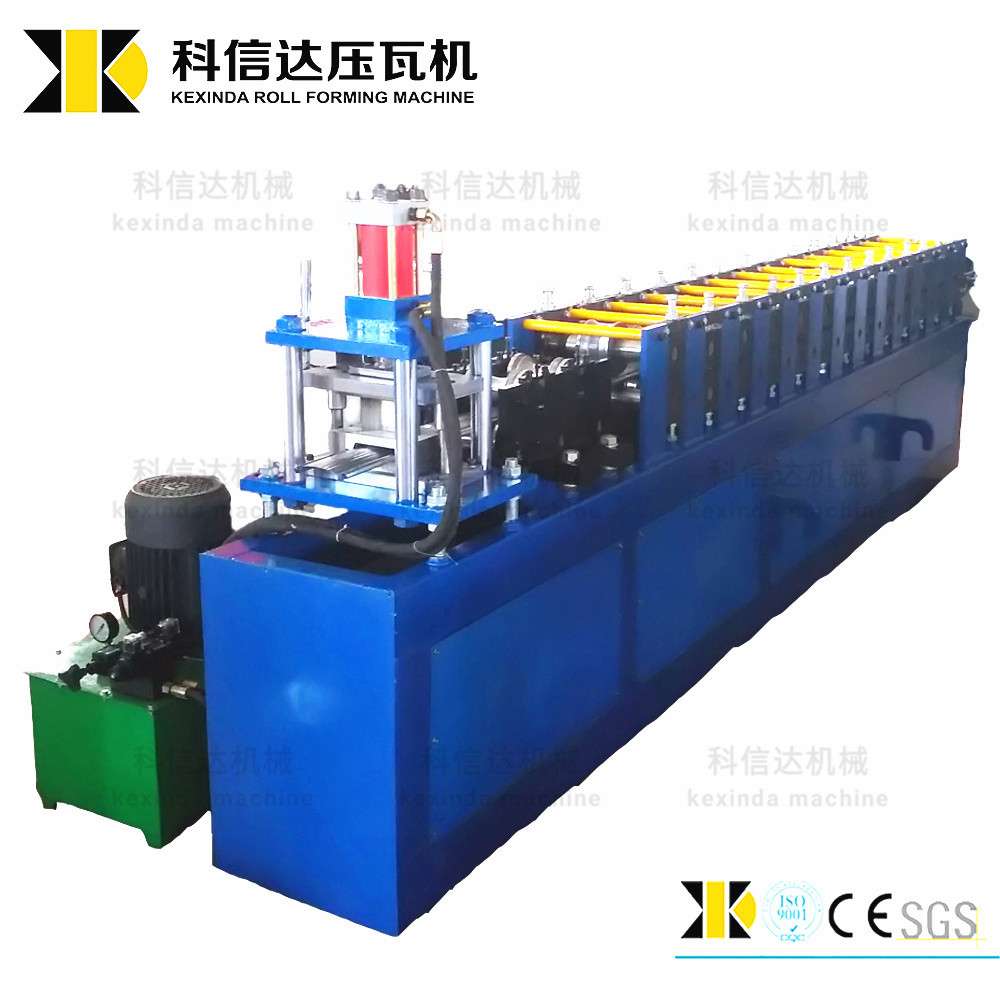

Roller Shutter Door Slat Roll Forming Machine
This roll forming machine produces steel panel tiles for roofs and walls, commonly used in temporary building sites and steel structure workshops. The metal sheet cold roll forming process offers high speed, high production, and good performance.
Technical Specifications
Overview
High-Efficiency Roll Forming Solution
This industrial roll forming machine is engineered for the precise and high-speed production of roller shutter door slats. Utilizing advanced CAD design and vacuum heat-treated rollers, the system ensures durable, accurate profiles with minimal deformation. It is an ideal solution for manufacturing facilities seeking to improve production speed and reduce labor costs while maintaining consistent quality for commercial and industrial applications.
Technical Specifications
- Main Motor Power
- 3 kW
- Hydraulic Motor Power
- 3 kW
- Hydraulic Pressure
- 10-12 MPa
- Voltage & Frequency
- 380V / 3 Phase / 50 Hz

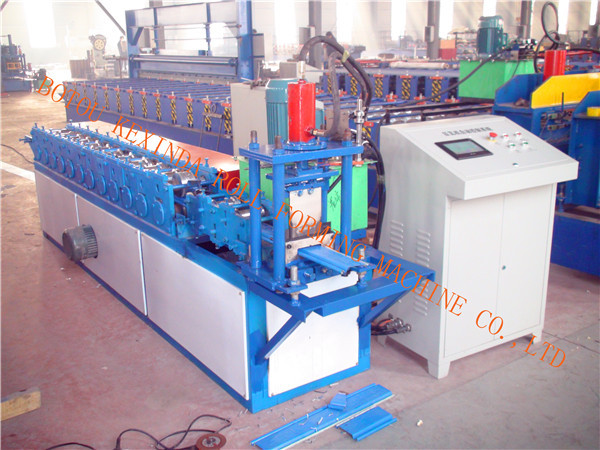

- Control System
- PLC Delta Inverter
Construction & Materials
- Main Frame Structure
- 300mm H-Beam
- Backboard Thickness
- 14 mm
- Chain Size
- 20 mm
Production Capabilities
Key Performance Metrics
1 Year
Warranty Period
1,998 Year
Production Experience Since
- Compatible Material
- Color steel coils
- Feeding Thickness Range
- 0.3 - 1.2 mm
Service & Support
- Service Availability
- Customized SourcingExport SupportTechnical Consultation
