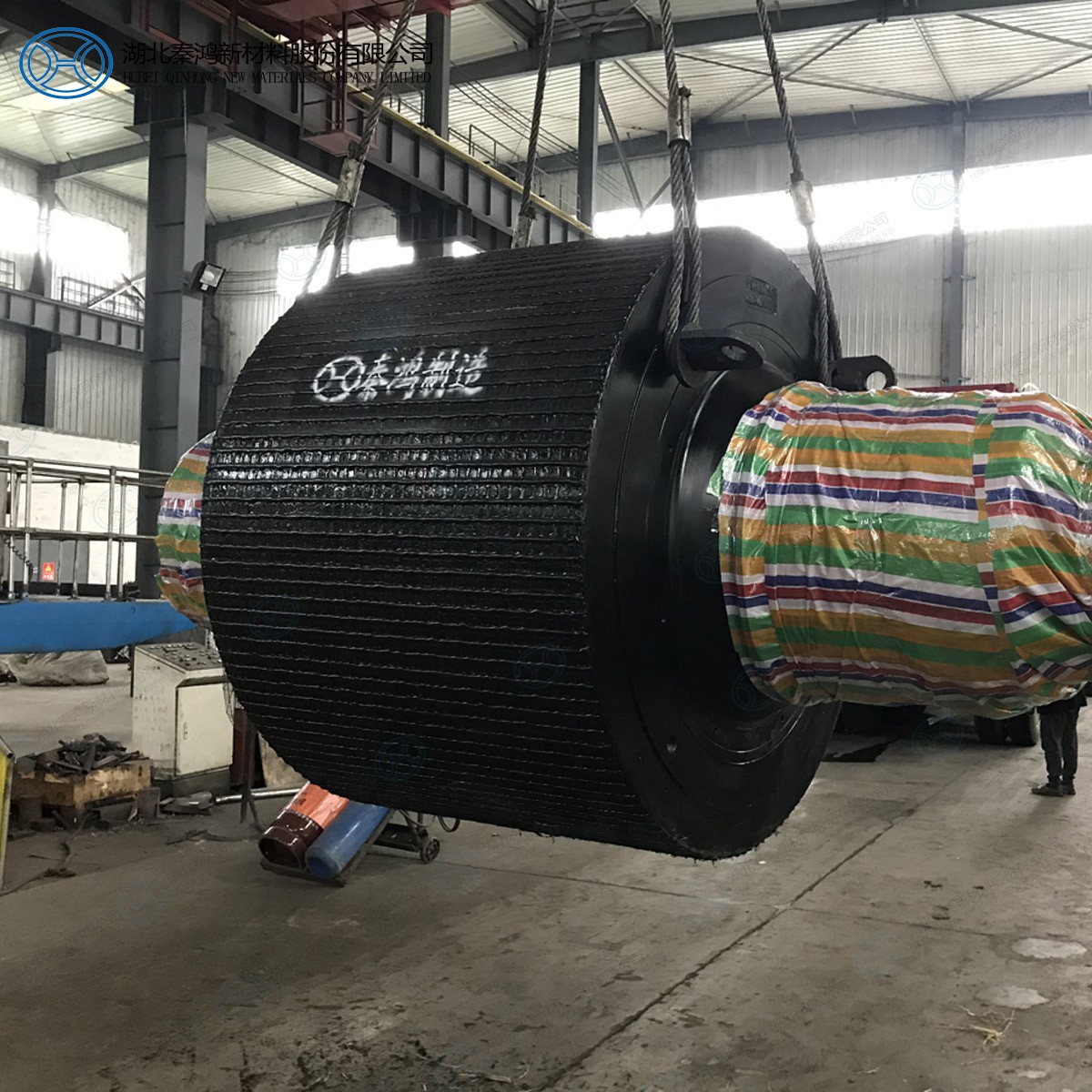

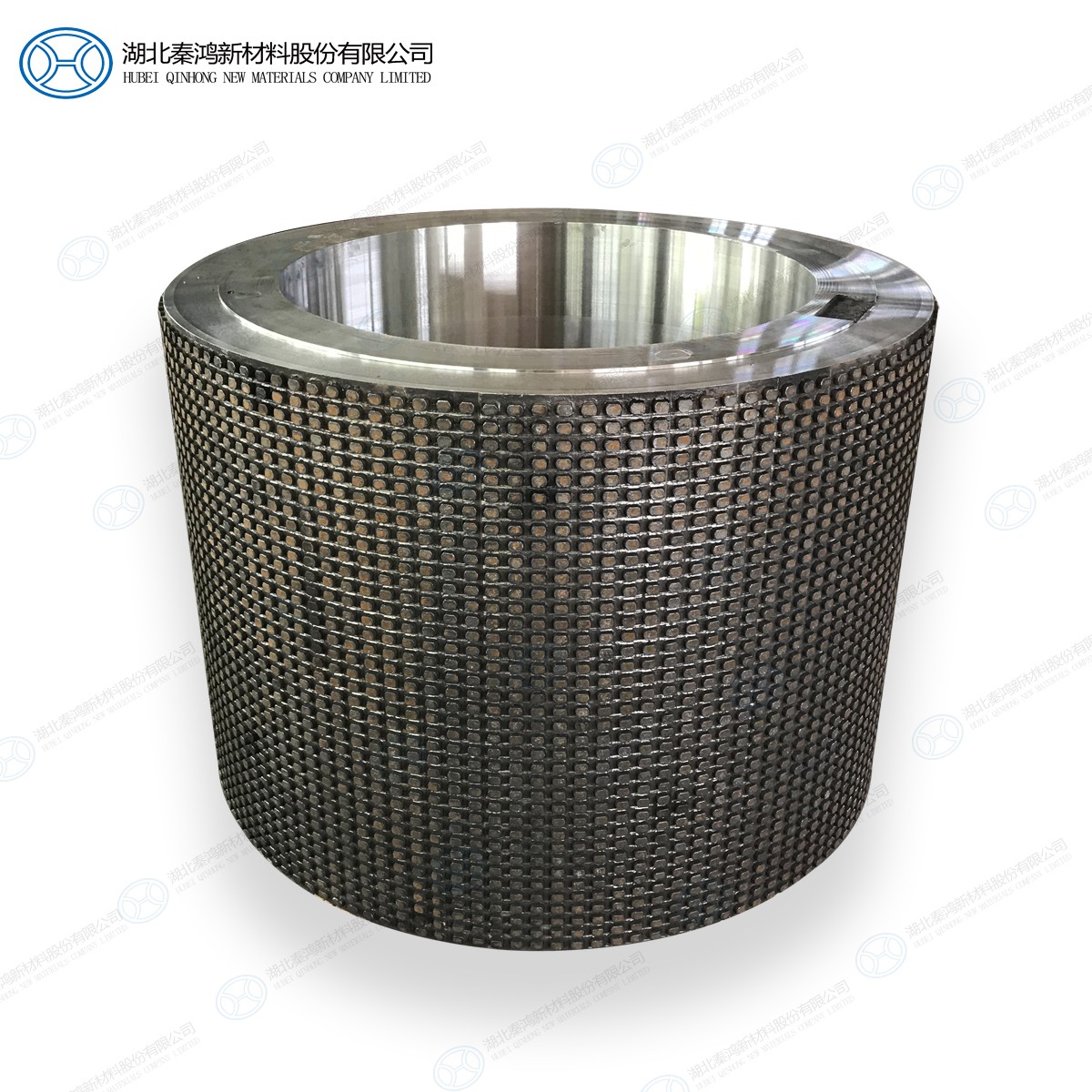

Roller Press Casting Nail Roller Tyre for Mining Machinery
This roller press casting nail roller tyre features a manganese steel matrix, reducing the surfacing amount of the roller tyre. It utilizes titanium carbide ceramic rod and tungsten-cobalt carbide rod to replace part of the surfacing, minimizing the risk of surfacing falling off.
Technical Specifications
Product Overview
High-Performance Mining Roller Tyre
This roller press casting nail roller tyre is engineered for heavy-duty mining machinery, providing superior durability and operational efficiency. Constructed with a robust manganese steel matrix and reinforced with iron-based titanium carbide and tungsten carbide nails, it is built to withstand harsh grinding environments. The design features a specialized surfacing pattern that protects the parent body while significantly increasing the grinding surface area and material intake capacity.
Material & Construction
- Material Composition
- Manganese SteelIron-based Titanium CarbideTungsten Carbide
- Manufacturing Process
- Static casting with one-body casting fusion
Design & Performance
Design Features
- One-body casting fusion
- Word pattern surfacing between nails
- Enhanced material intake capability
- Protective parent body design
- Surface Hardness
- 60 HRC
- Nail Protrusion
- 15 mm
