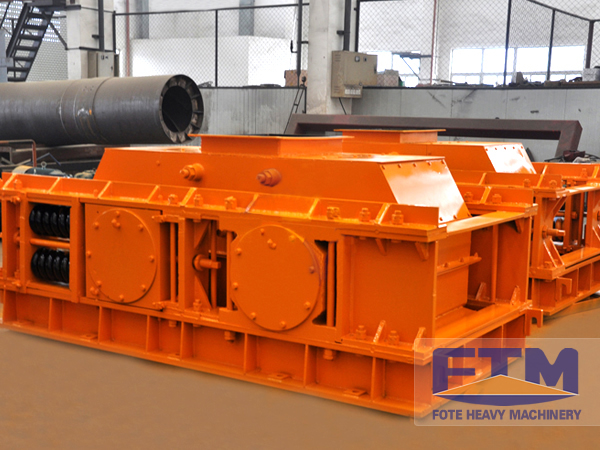

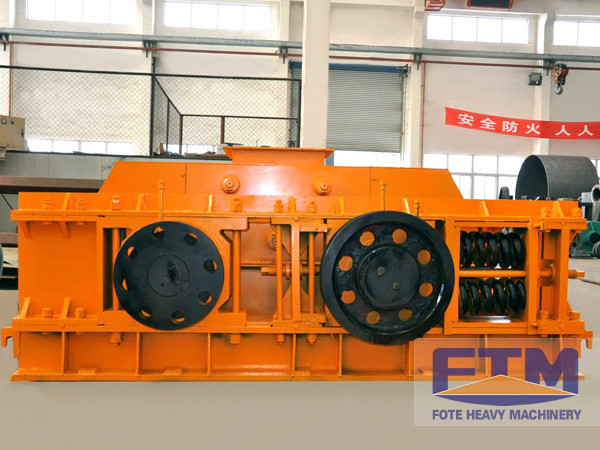

Rod Toothed Crushing Machine
Rod-toothed crusher is driven by one or more motors, and the pulley on its both sides drives the rollers to turn in opposite direction, finally, the materials smaller than the roll gap fall down, and the materials larger than the gap between rolls will be crushed on the rolls, so as to achieve the desired grain size.
Technical Specifications
Product Overview
High-Efficiency Rod Toothed Crusher
The rod toothed crusher utilizes a high-strength wear-resistant alloy crushing tooth system arranged in a spiral pattern to deliver uniform particle size. Engineered for stability and low vibration, this equipment offers excellent adaptability across coal, mining, and industrial sectors with minimal energy consumption. Its robust design ensures durability in harsh environments, while the simple structure facilitates easy maintenance and replacement of core components.
Key Features
Applicable Materials
- Bituminous coal
- Anthracite coal
- Coke
- Slag
- Gypsum
- Bauxite ore
- Solid waste
- Suitable Industries
- CoalElectricityBuilding MaterialsChemicalMetallurgyEnvironmental Protection
Technical Specifications
Model Capacity Table
| Model | Capacity (t/h) | Power (kW) | Weight (kg) |
|---|---|---|---|
| GF4PG-90 | 70~100 | 74 | 16,100 |
| GF4PG-150 | 140~160 | 110 | 21,000 |
| GF4PG-250 | 220~260 | 190 | 28,100 |
| GF4PG-350 | 300~360 | 220 | 32,300 |
| GF4PG-450 | 420~460 | 320 | 40,700 |
