Rock Drilling Button Bit
This rock drilling button bit is designed for efficient rock penetration. It features tungsten carbide buttons for enhanced cutting performance and durability in mining and construction applications.
Technical Specifications
Product Overview
High-Performance Rock Drilling Button Bit

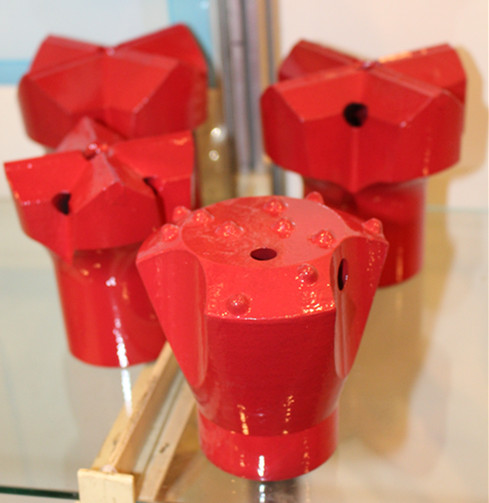

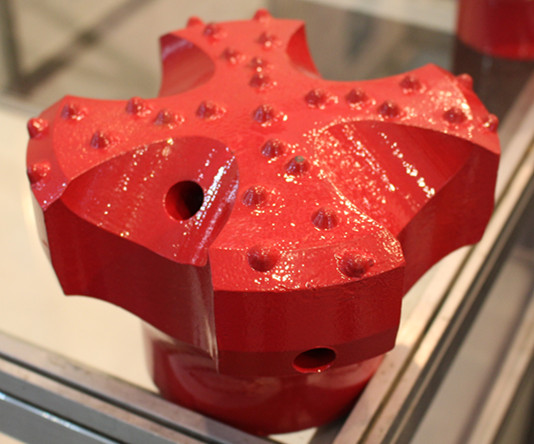

This Rock Drilling Button Bit is engineered for demanding construction and pilling applications, featuring a robust steel body with a durable red corrosion-resistant finish. Equipped with multiple tungsten carbide buttons, it provides enhanced cutting performance and exceptional durability in hard rock formations. The design incorporates strategically placed flushing holes and a central passage to ensure efficient debris removal and fluid flow during intensive drilling operations.
Technical Specifications
Design Features
- Four-wing drill bit configuration
- Multi-faceted head with multiple cutting surfaces
- Central hole for fluid or air passage
- Multiple side ports for efficient debris removal
- Cylindrical shank for equipment connection
- Available Bit Types
- Carbide Cross Cut BitCarbide Button BitSteel Cross Cut BitSteel Button BitClay Sand Bit
- Material & Finish
- Robust steel body with red corrosion-resistant coating
Compatibility
Compatible Anchor Bar Sizes
| Series | Supported Sizes |
|---|---|
| R-Series | R25, R32, R38, R51, R63, R76 |
| T-Series | T30, T40, T52, T73, T76, T103, T111, T127 |
Applications
Primary Applications
Rock DrillingPilling OperationsConstruction MachineryHard Rock Formations
System Components
Related System Components
- Self-drilling anchor bars
- Couplers
- Nuts
- Plates
