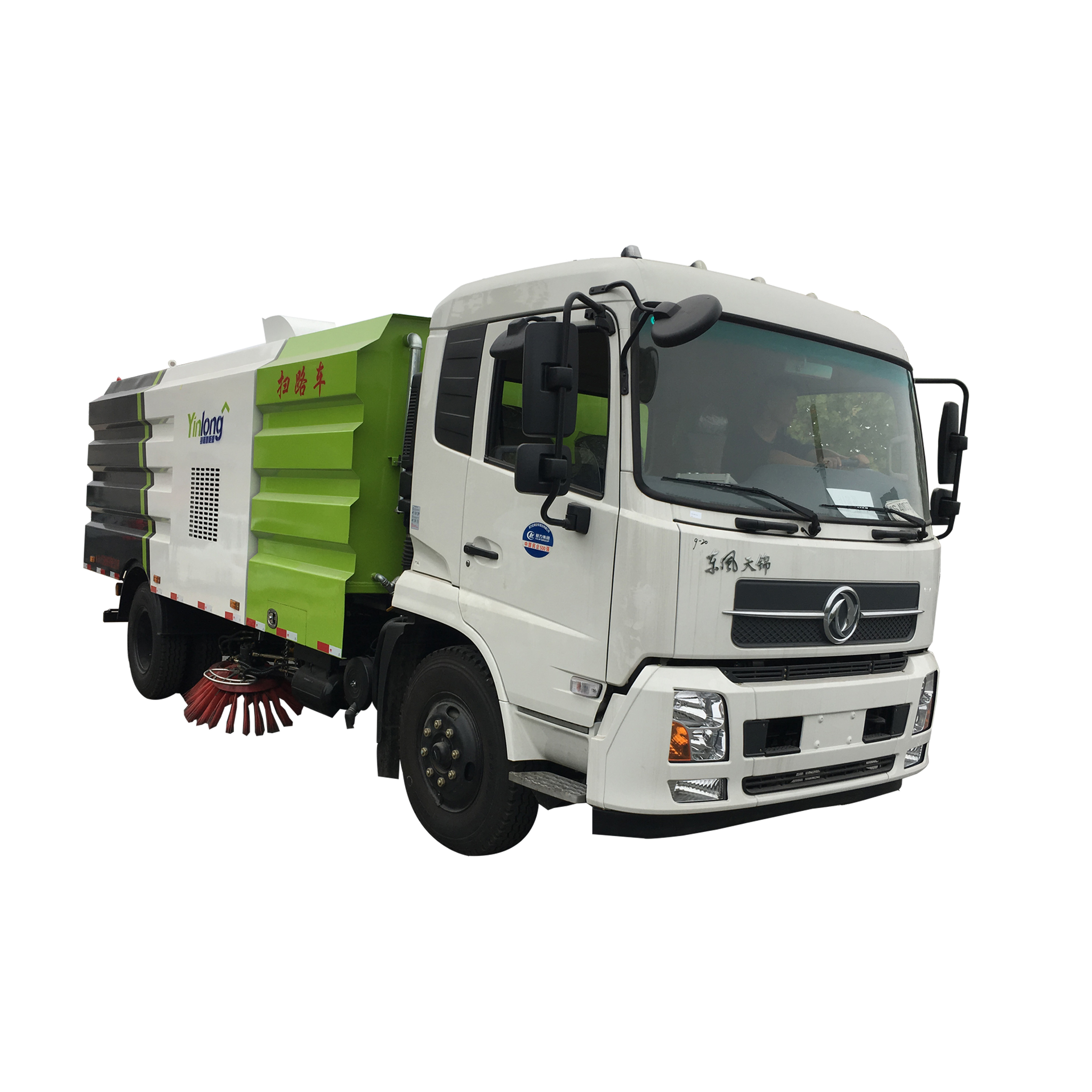

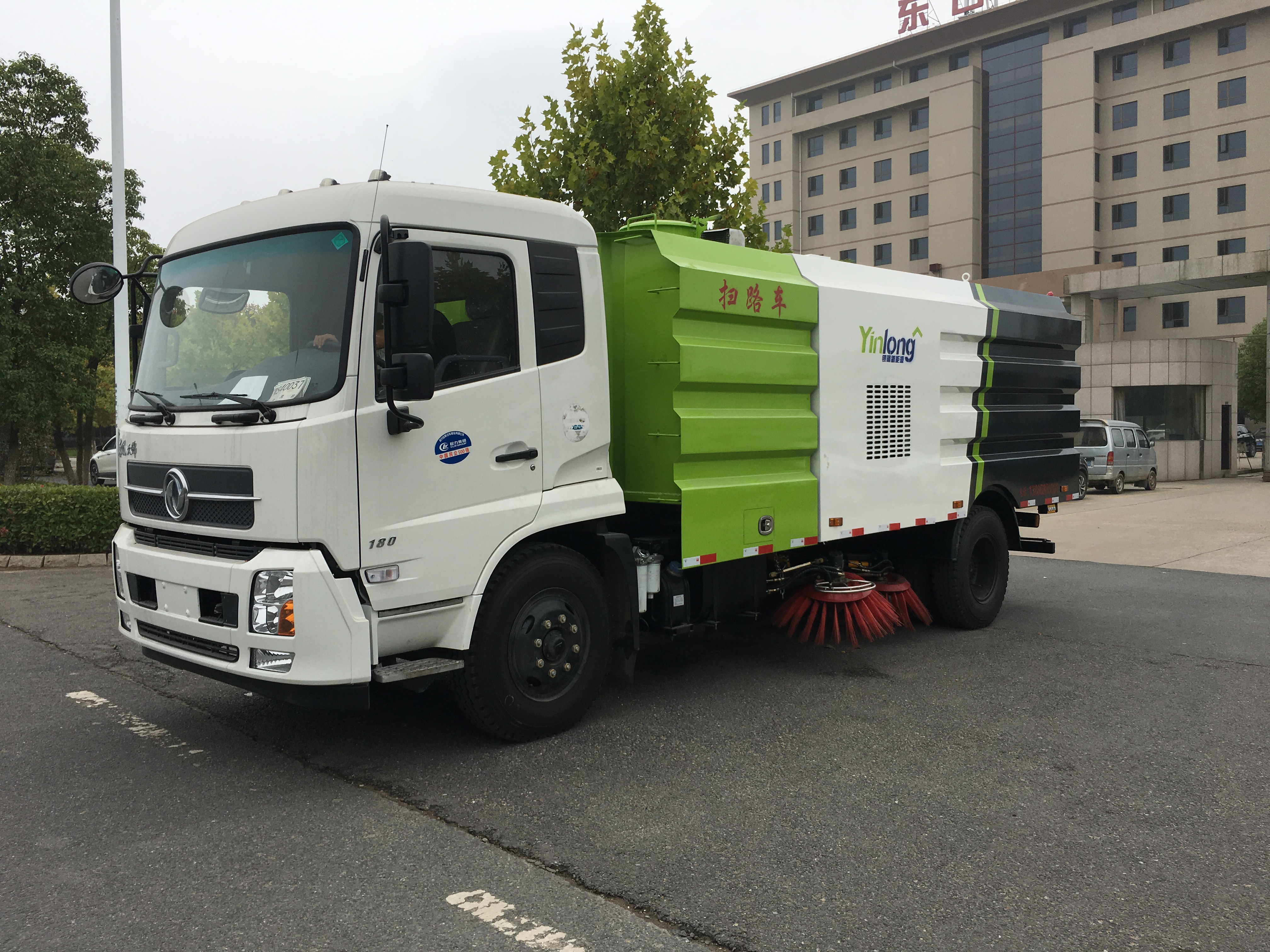

Road Sweeper
The road sweeper is designed for efficient cleaning of streets and paved surfaces. It features a large capacity hopper and rotating brushes to sweep dirt and waste into the collection system.
Technical Specifications
Overview
High-Efficiency Road Sweeper
This professional-grade road sweeper is engineered for municipal and industrial sanitation tasks, featuring a 4x2 driving configuration and a heavy-duty chassis. With a combined 3.5m3 water tank and 7m3 trash hopper capacity, it provides extended operation intervals and high efficiency. Designed for urban maintenance, the vehicle integrates a advanced suction system and multi-brush configuration to ensure cleaning efficiency rates of 95% or higher.
Performance Metrics
Key Operational Metrics
90 km/h
Max Speed
95 %
Cleaning Efficiency
45,000 m2/h
Min Coverage
Chassis & Engine
Powertrain Specifications
| Component | Detail |
|---|---|
| Engine Model | Cummins ISB190 50 |
| Horsepower | 190 hp |
| Transmission | 8 Forward, 1 Reverse |
| Emission Standard | Euro 5 |
Dimensions & Weights
Physical Dimensions
- GVW: 16,000 kg
- Curb Weight: 8,650 kg
- Overall Dimensions: 7880 x 2470 x 3100 mm
- Wheelbase: 4700 mm
Cleaning Capabilities
- Sweeping Features
- Water Spraying SystemRear SuctionFour-Brush SystemCarbon Steel Water TankStainless Steel Trash Tank
