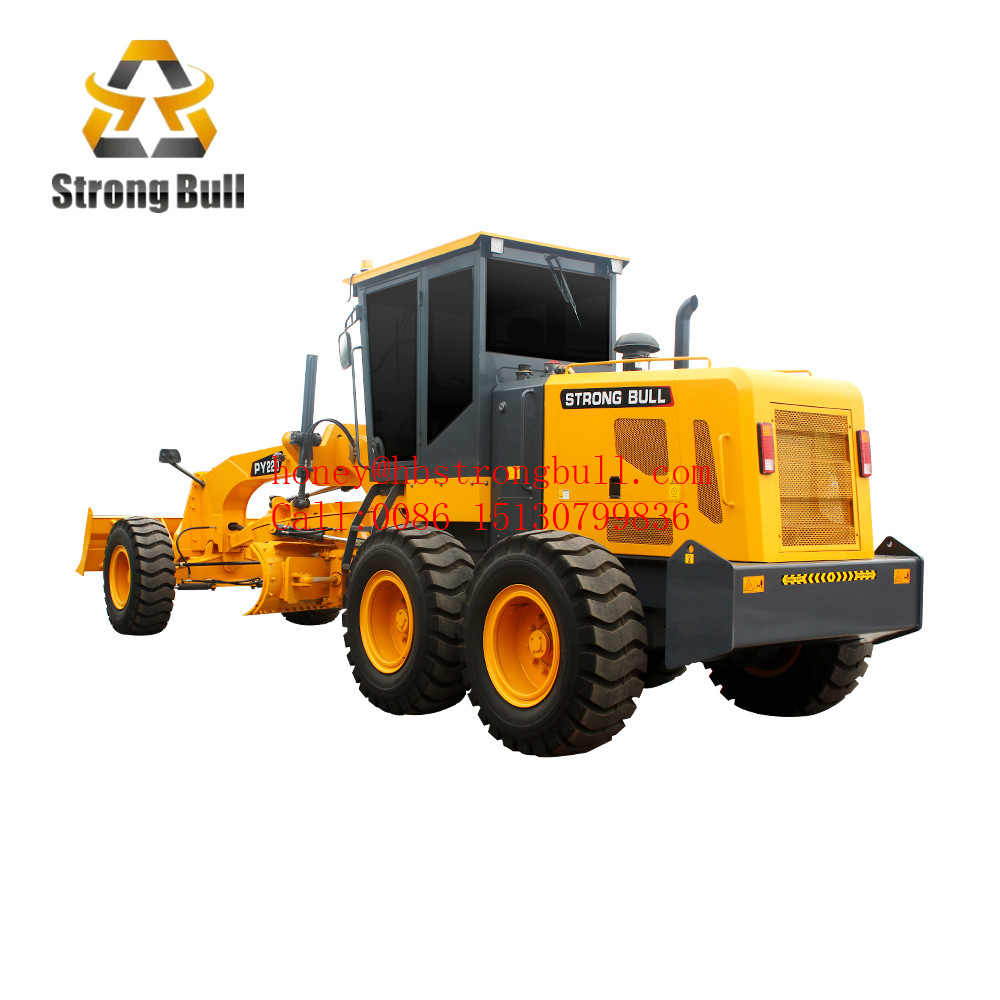

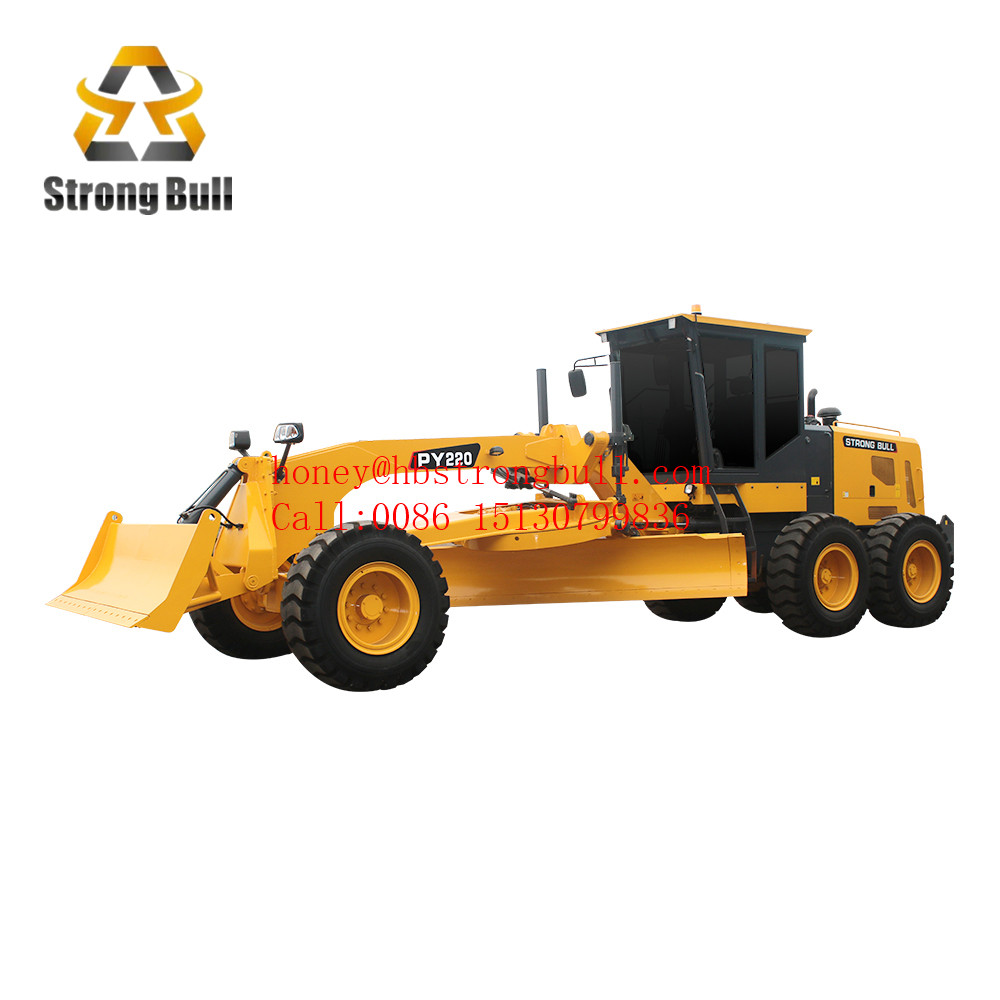

Road Construction Motor Grader
This motor grader is designed for precision grading and leveling tasks. It features an adjustable blade and articulated frame for maneuverability.
Technical Specifications
Overview
High-Performance Motor Grader
This heavy-duty motor grader is engineered for precision grading, leveling, and earthmoving operations in demanding construction environments. Featuring a robust diesel engine and an articulated frame, it delivers exceptional torque and maneuverability for road construction and site development projects. The machine includes a highly adjustable moldboard and advanced hydraulic controls, ensuring superior surface preparation accuracy and operational efficiency.
Engine & Performance
Rated Power
220 hp
Rated Power
2,400 rpm
Rated Speed
Engine Specifications
- Certified capacity: 6.75L
- Minimum fuel consumption rate: ≤230g/(kw.h)
Dimensions
Overall Dimensions
| Dimension | Value |
|---|---|
| L×W×H | 8900×2700×3500mm |
| Wheelbase | 6840mm |
| Wheel tread | 1685mm |
| Rear axle wheelbase | 1650mm |
Ground Clearance
560 mm
Front Axle
500 mm
Rear Axle
Blade & Grading
Blade Specifications
- Blade Length: 4256mm
- Blade Size (L×H×T): 4256×590×20mm
- Cutter Diameter: 1500mm
- Cutting Depth: 360mm
- Ground Clearance: 450mm
- Blade Movement Capabilities
- 360° Swing AngleForward 47° / Backward 5° InclinationLeft 600mm / Right 600mm Sliding Range
Operational Parameters
Steering & Maneuverability
- Max swinging angle of front axle: ±16°
- Max steering angle of front wheel: ±45°
- Steering angle of articulated frame: ±25°
- Overall Weight
- 16500 kg
Hydraulic & Capacities
Fill Capacities
220 L
Fuel Tank
140 L
Hydraulic Oil
- Hydraulic System
- Open-type system
