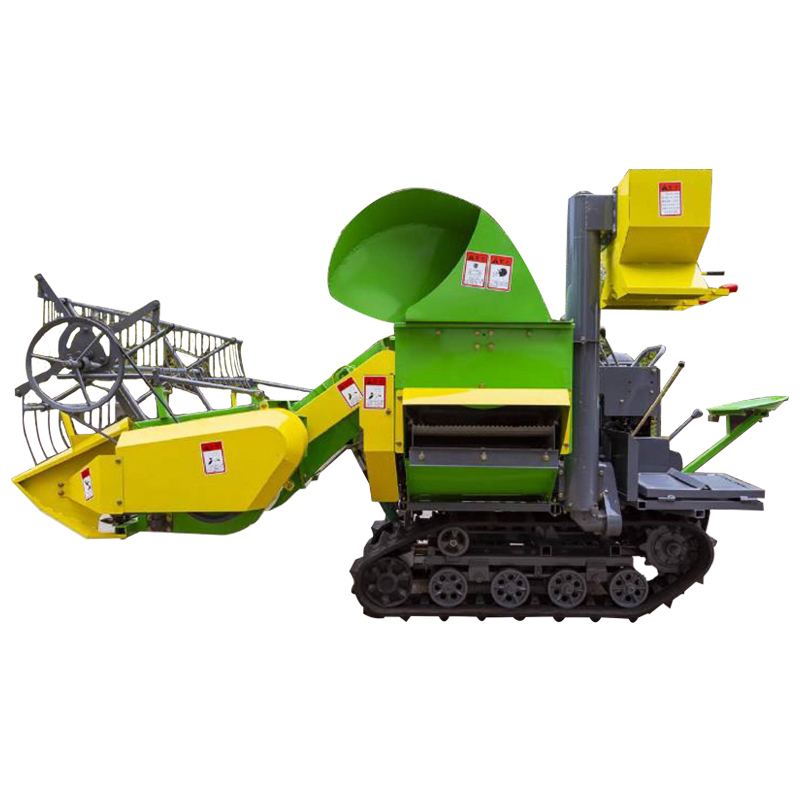

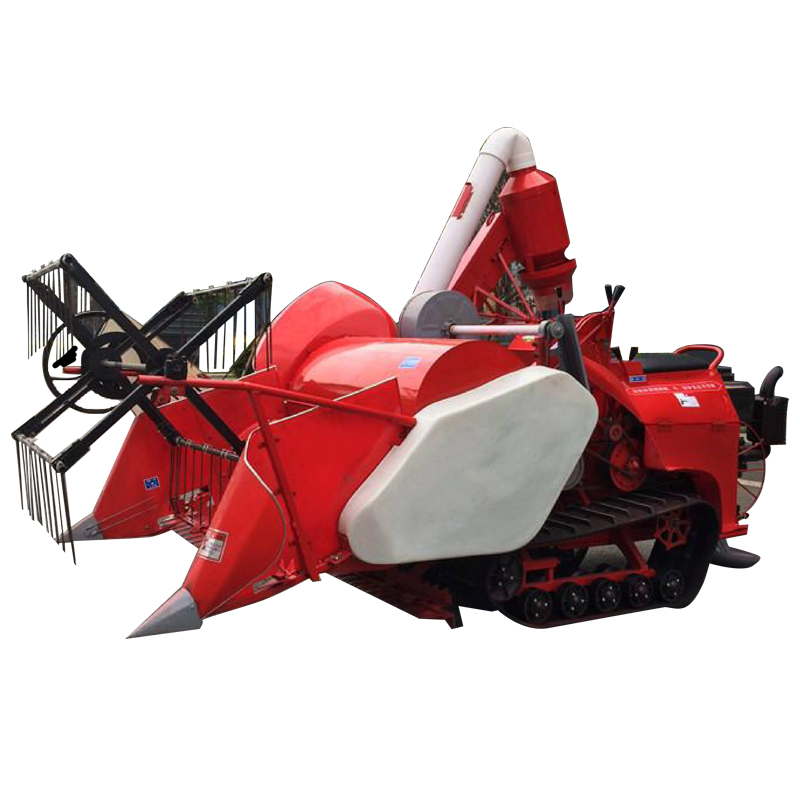

Rice Harvesting Machine
The rice harvesting machine is designed for efficient rice harvesting in various field conditions. It separates grain from straw, collecting the grain in a high-capacity tank.
Technical Specifications
Product Overview
High-Efficiency Rice Harvesting Performance
This full-feeding longitudinal crawler-type harvester is engineered for maximum durability and performance in diverse field conditions. Featuring a high-torque two-way friction clutch and a screw-type spike roller, the machine ensures precise ear-picking and efficient grain separation. With a robust H-frame chassis and mechanical-hydraulic stepless transmission, it offers operators exceptional maneuverability and reliability during intense harvesting seasons.
Technical Specifications
Performance Metrics
74.5 kw
Max Nominal Power
18.72 T/h
Max Feeding Mass
6.9 Km/h
Max Productivity
Machine Dimensions
| Dimension | Value |
|---|---|
| Weight | 3180-3200 kg |
| Ground Clearance | 220-325 mm |
| Cutting Width | 2000-2200 mm |
Operational Capabilities
Harvesting Efficiency
- Rice Loss: ≤3.0%
- Wheat Loss: ≤1.2%
- Rice Breakage: ≤1.5%
- Impurity Rate: ≤2.0%
- Field Operations
- Crawler typeFull feedingAutomatic unloadingWet field capableAxial flow threshing
