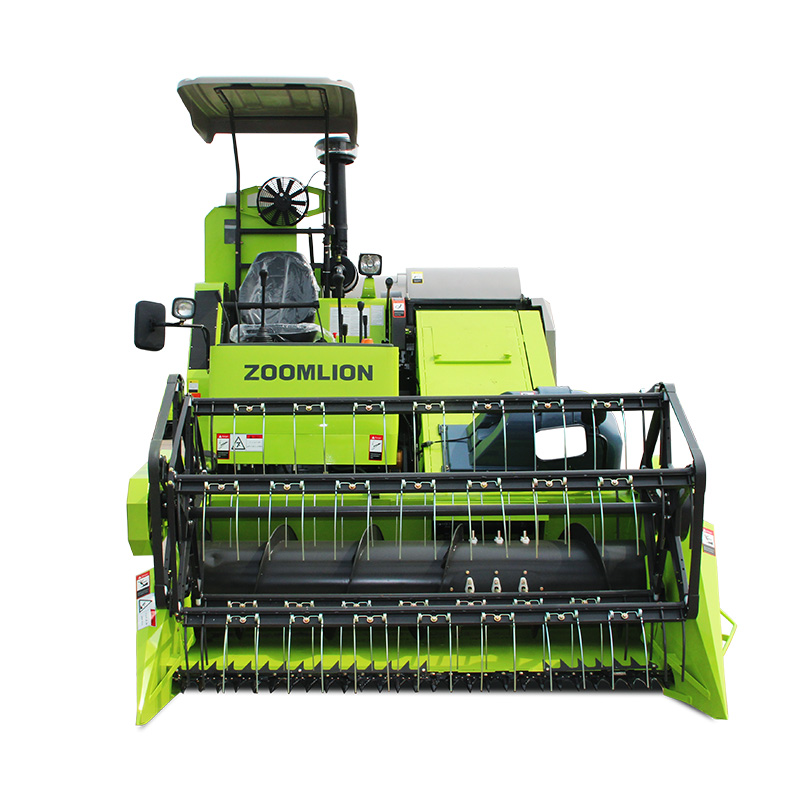

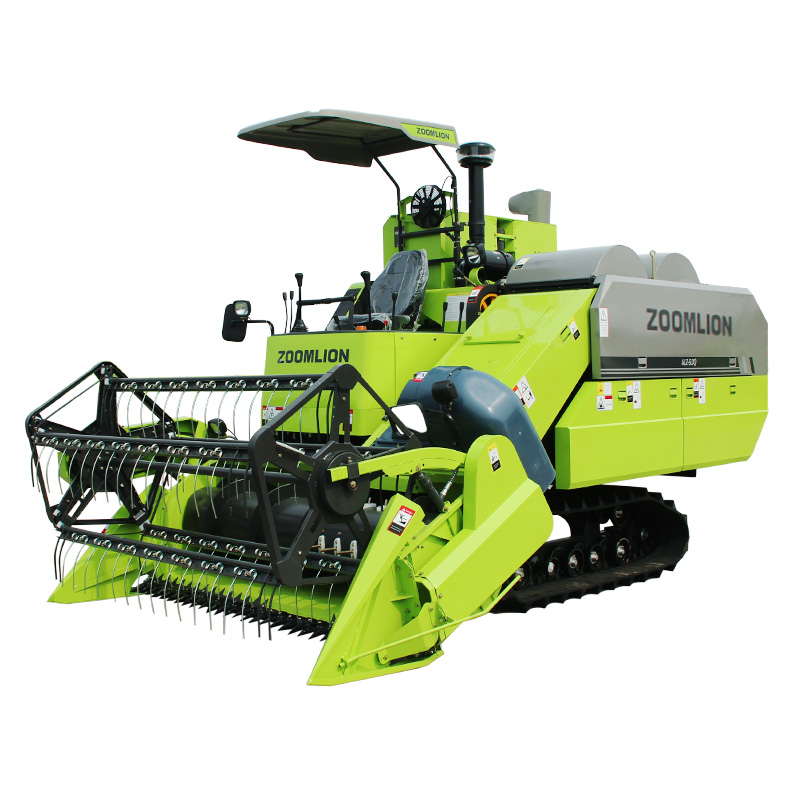

Rice Combine Harvester
This rice combine harvester features a 100 hp engine and an 80-speed gearbox for strong power and fast operation. The cleaning screen has been enlarged for enhanced cleaning capacity and high efficiency.
Technical Specifications
Overview
High-Efficiency Rice Combine Harvester
This crawler-type full-feeding combine harvester is engineered for high-productivity rice harvesting in diverse field conditions. Equipped with a powerful 100HP engine and advanced hydrostatic transmission, it ensures fast harvesting speeds and exceptional maneuverability in wet or muddy paddies. The machine integrates cutting, threshing, and cleaning into a single process, featuring a high-capacity 1.1m³ grain tank and an optimized ergonomic cabin for maximum operator comfort and reduced labor.
Performance
Key Performance Metrics
18 t/h
Feeding Capacity
100 hp
Engine Power
7.5 km/h
Max Operating Speed
Technical Specifications
Dimensions and Weight
| Metric | Value |
|---|---|
| Length x Width x Height | 4880 x 2520 x 2840 mm |
| Total Weight | 2750 kg |
| Min Ground Clearance | 300 mm |
Engine Specs
- Type: 4-cylinder, vertical, water-cooled
- Rated Power: 73 kW
- Rated Speed: 2400 r/min
Features
Harvesting System

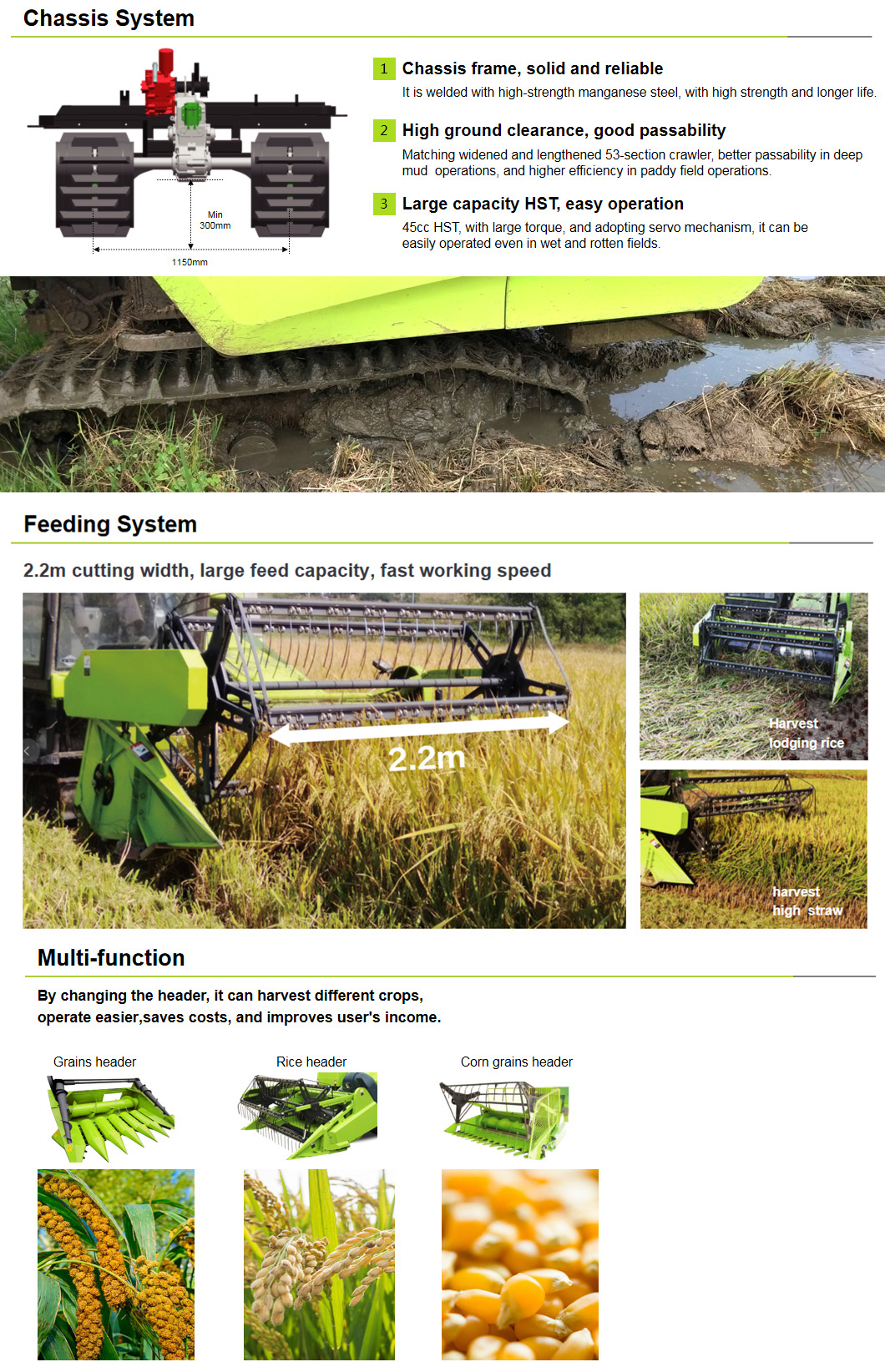

- Cutting Width: 2200mm

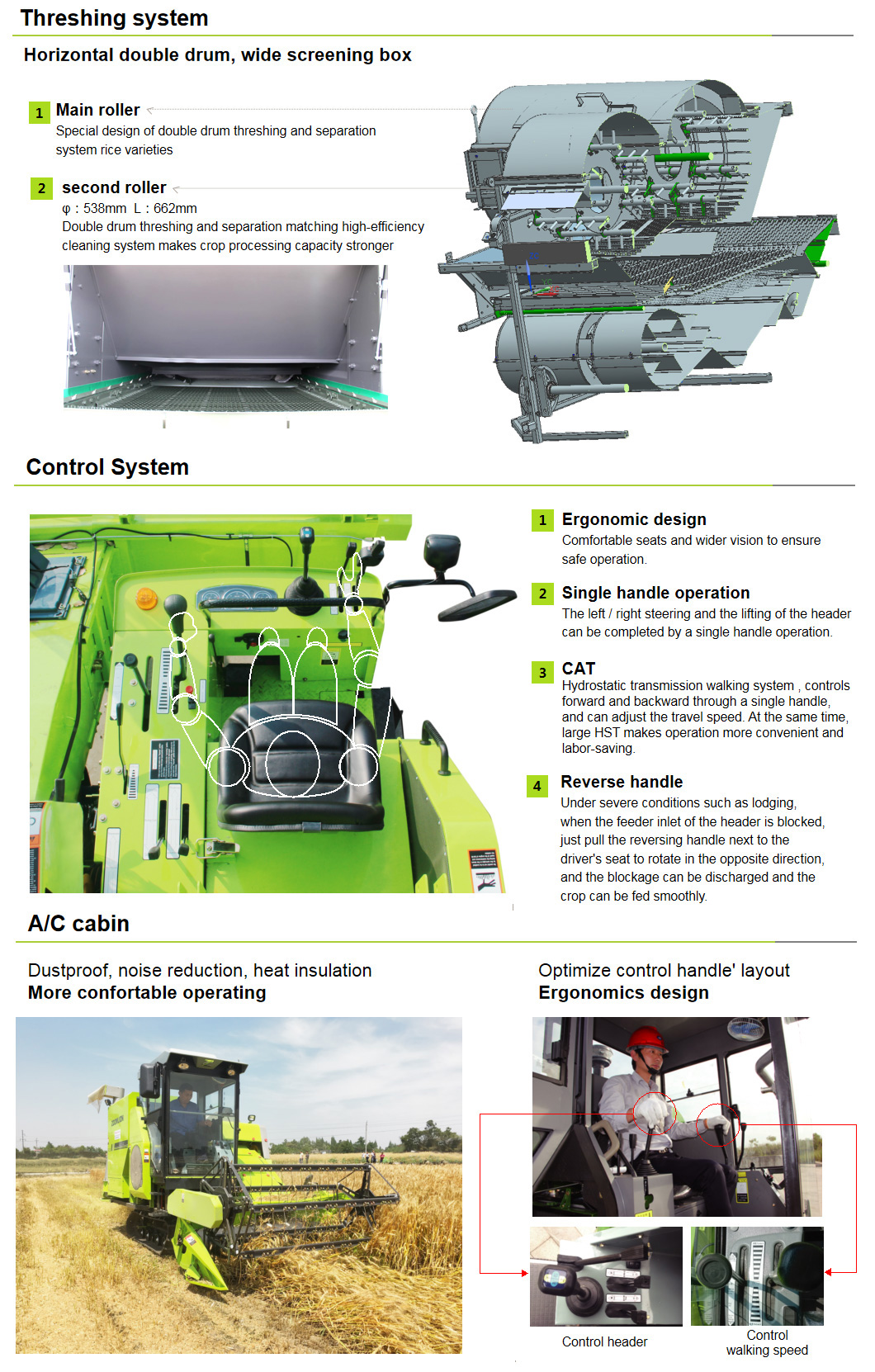

- Threshing System: Horizontal double drum
- Grain Tank Capacity: 1.1m³

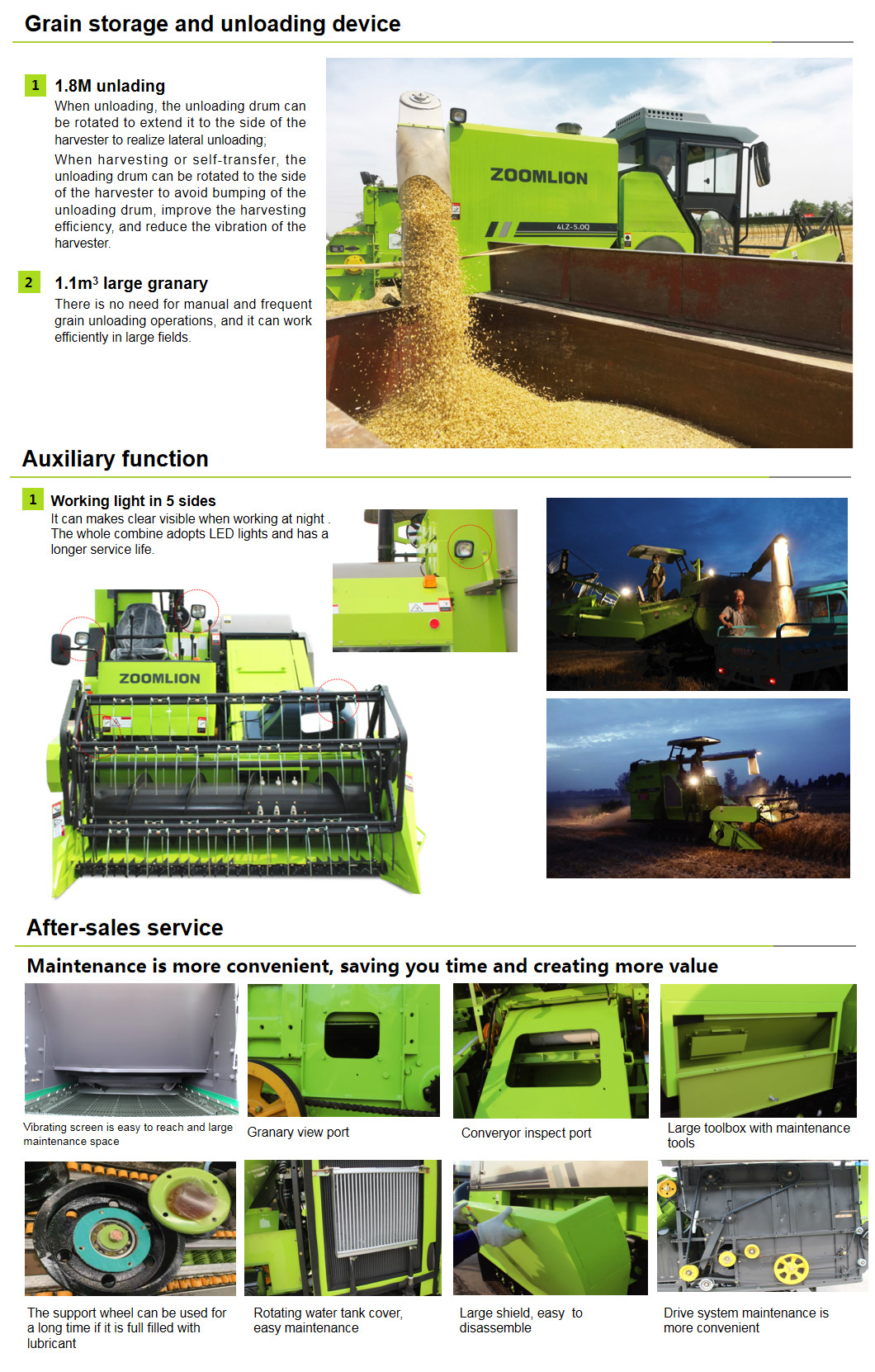

- Unloading: 1.8m rotatable unloading tube
- Operational Highlights
- Hydrostatic TransmissionErgonomic CabDust-ProofingNoise ReductionReverse Header Conveyor
