Technical Specifications
Product Overview
High-Performance Retail Loss Prevention

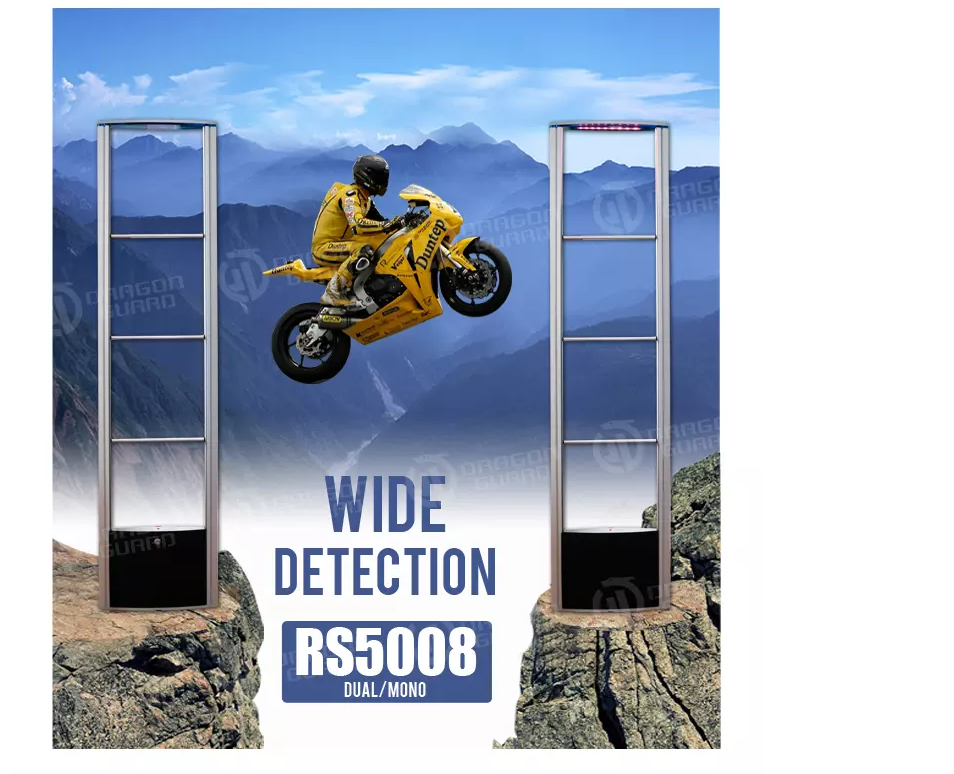

The RS5008 is a professional-grade Electronic Article Surveillance (EAS) system designed to protect merchandise in high-traffic retail environments. Utilizing 8.2MHz Radio Frequency technology, it offers a super-wide detection range to accommodate various store entrance widths while maintaining a sleek, modern aesthetic. This system provides a reliable, cost-effective solution for clothing shops and supermarkets looking to minimize inventory shrinkage.
Technical Performance
Detection Capabilities
8.2 MHz
Operating Frequency
1.8 m
Max Label Detection
2.2 m
Max Hard Tag Detection
Detection Range Details
| Tag Type | Detection Distance |
|---|---|
| RF Soft Labels | 1.6m - 1.8m |
| Hard Security Tags | 1.8m - 2.2m (up to 3m depending on tag size) |
Design & Construction
Physical Specifications
- Dimensions: 167 x 42 x 2 cm
- Material: Durable Aluminum Alloy
- Frame: Reinforced thick frame construction
- Base: Ventilated base cover for heat dissipation

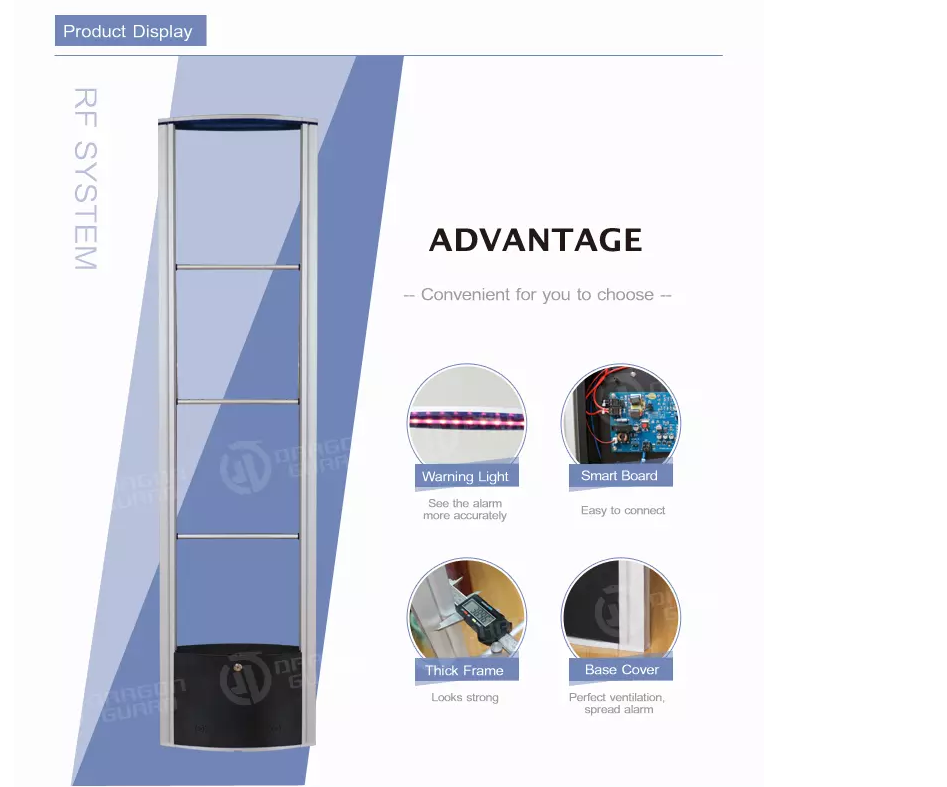

Key System Features
- Dual/Mono mode flexible configuration
- Integrated Smart Board for easy connectivity
- High-visibility LED warning light
- Audible alarm speaker
Customization & OEM
- Available Customizations
- Logo PrintingCustom ColorsFrame MaterialPCB Board AssignmentAlarm Light StyleCable LengthAdvertising Panels
Installation & Power
- Power Supply
- 24VDC

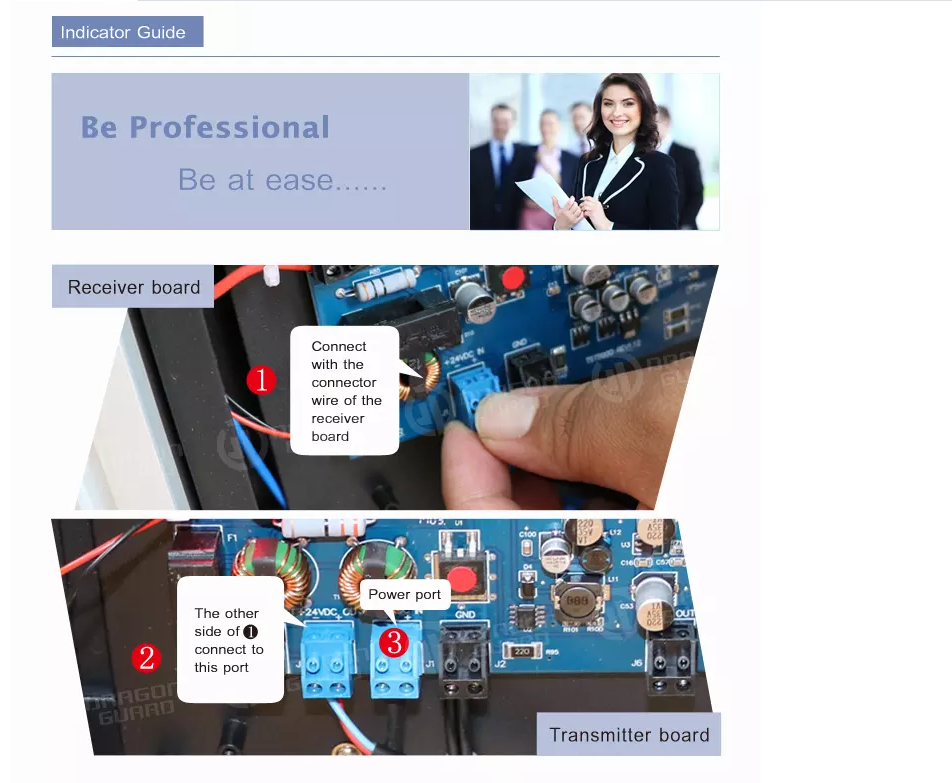

- Wiring Configuration
- Receiver board connects to transmitter board via dedicated connector wires
Compliance & Quality
Certifications
CEISO 9001ROHSSGSMSDS
Logistics & Supply
Packaging Details
- Quantity: 2 pcs per carton
- Weight: 14 kgs per carton
- Carton Dimensions: 171 x 20.5 x 46 cm
Lead Time by Quantity
| Quantity (Sets) | Estimated Time (Days) |
|---|---|
| 1 - 10 | 10 days |
| 11 - 50 | 15 days |
| Over 50 | Negotiable |
