Technical Specifications
Product Overview
Professional Retail & Library Security

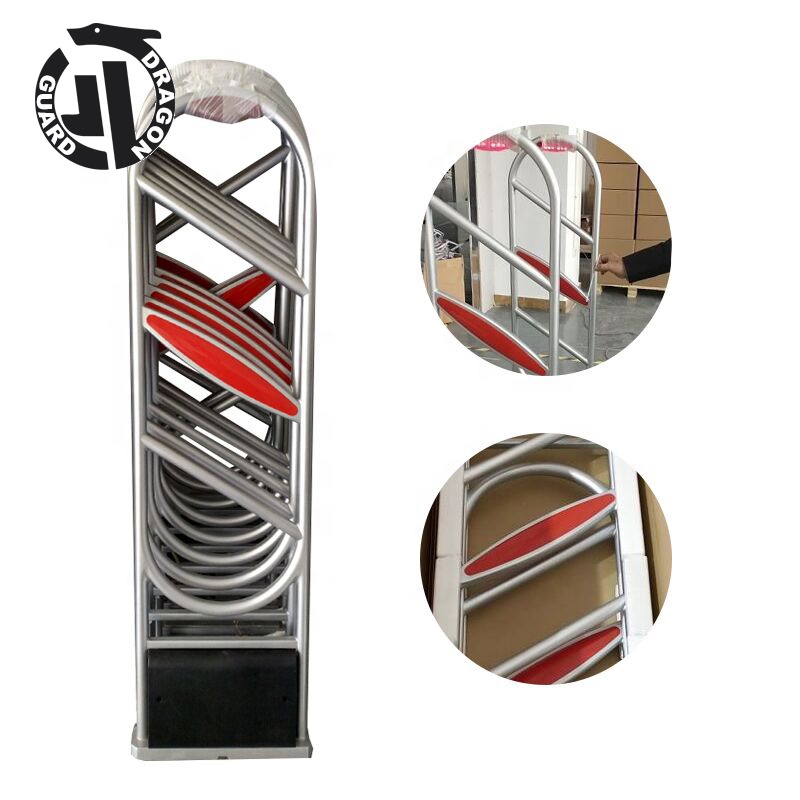

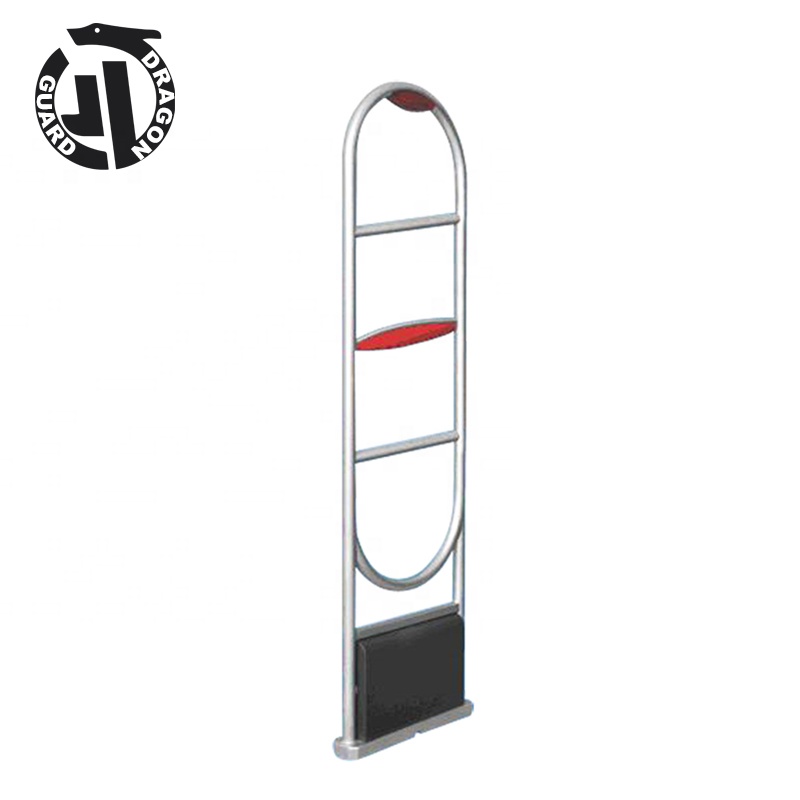

This high-quality EAS system gate provides robust anti-theft protection for retail stores and libraries. Utilizing advanced electromagnetic (EM) technology, it ensures reliable detection of security labels while maintaining a sleek, modern aesthetic that integrates seamlessly into professional environments. The system is designed for high-traffic areas, offering effective loss prevention and enhanced inventory control.
Technical Specifications
- Unit Dimensions
- 152 x 44 x 3 cm
- Material
- Advanced Resin Glass
- Working Voltage
- 110V - 240V
- Working Environment
- -20°C to 60°C
Detection Performance
Performance Metrics
170 cm
Detection Height
80 cm
Detection Width

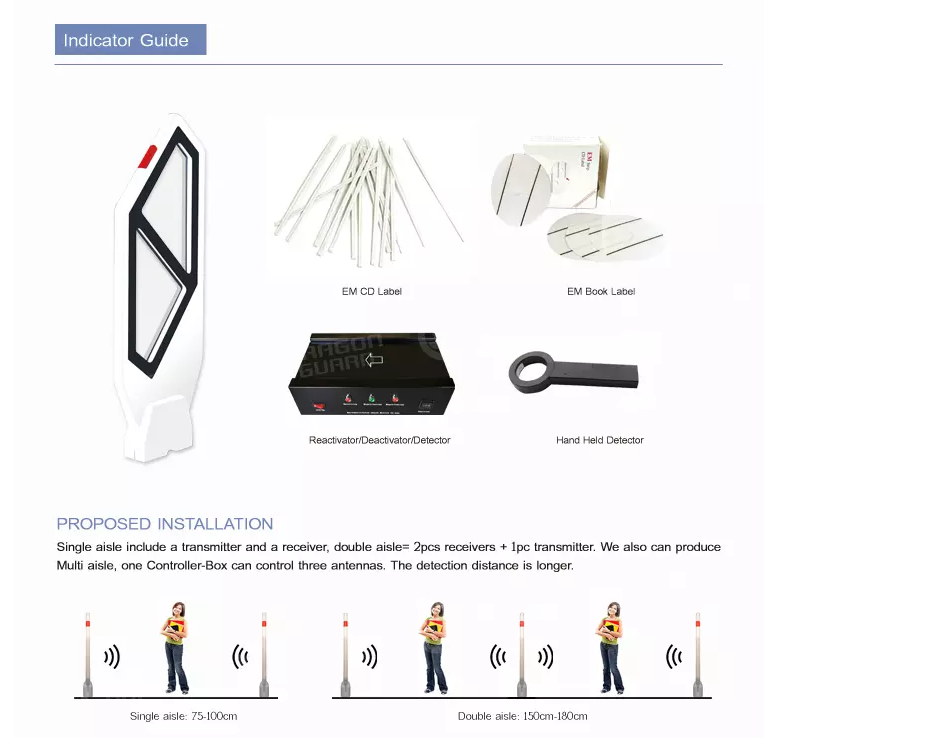

Installation Configurations
| Configuration | Components | Detection Distance |
|---|---|---|
| Single Aisle | 1 Transmitter + 1 Receiver | 75 - 100 cm |
| Double Aisle | 1 Transmitter + 2 Receivers | 150 - 180 cm |
| Multi Aisle | 1 Controller-Box + 3 Antennas | Extended Range |
Customization & Features
Customization Options
- Logo integration
- Custom color choices
- Shape variations
- Assigned PCB board
- Alarm light configuration
- Frame material selection
- Cable length adjustment
- Advertisement placement
- Smart Features

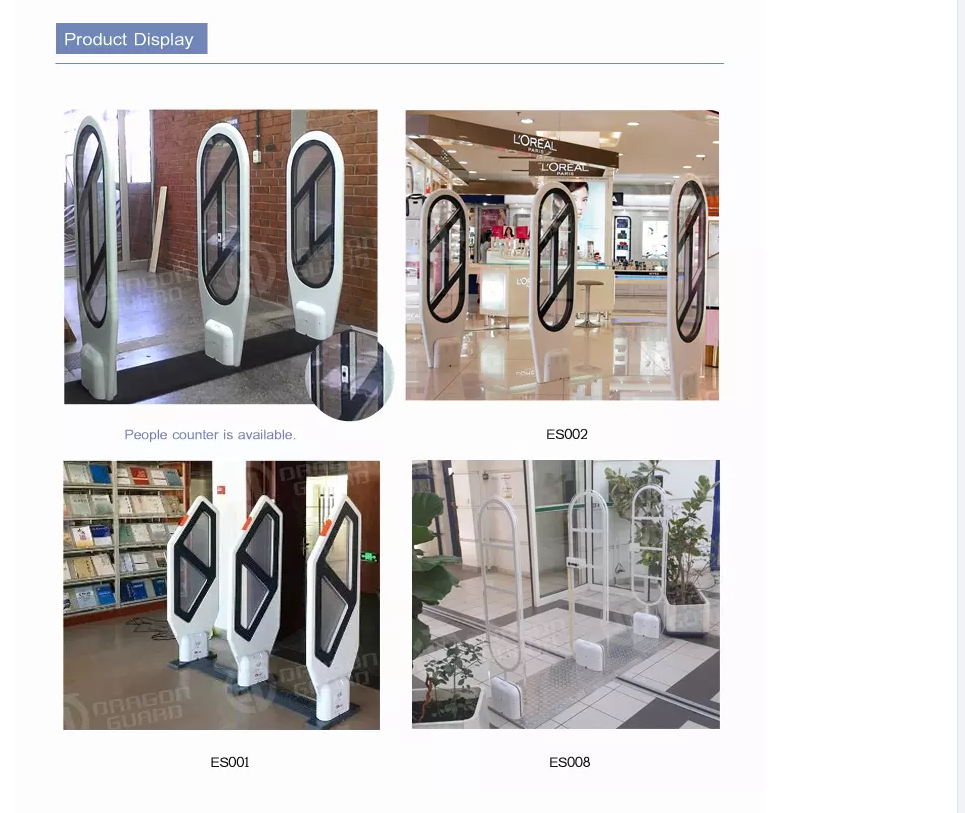

- People Counter AvailableEM TechnologyOEM Accepted
Compliance & Logistics
Certifications
CEISOROHSSGSMSDS
- Packaging Details
- 1 set/ctn, 24kg/ctn, 158*50*18cm
- Supply Ability
- 100 Sets per Week
