Technical Specifications
Overview
Versatile Residential Heating & Cooling
This high-efficiency air source heat pump is a comprehensive solution for modern residential needs, providing cooling, floor heating, and sanitary hot water. By extracting heat from the ambient air, it offers a sustainable and energy-saving alternative to traditional water heaters. The system is designed for durability and ease of maintenance, making it an ideal choice for eco-conscious domestic applications.

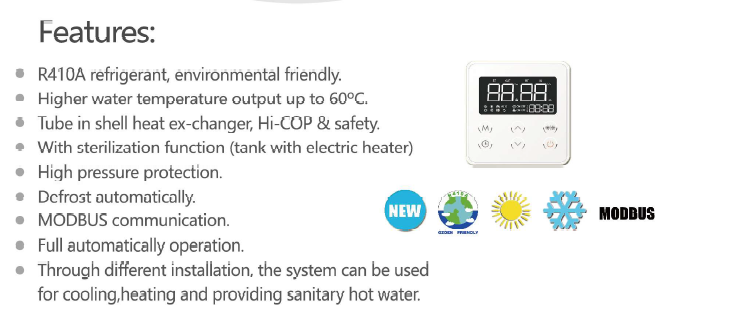

Key Features
Core Functionalities
- Full automatic operation
- Automatic defrosting
- High pressure protection
- Sterilization function (with electric heater tank)
- MODBUS communication support
Technical Performance
Performance Metrics
60 °C
Max Water Temperature
Refrigerant
R410AEnvironmentally Friendly
- Heat Exchanger Type
- Tube in shell

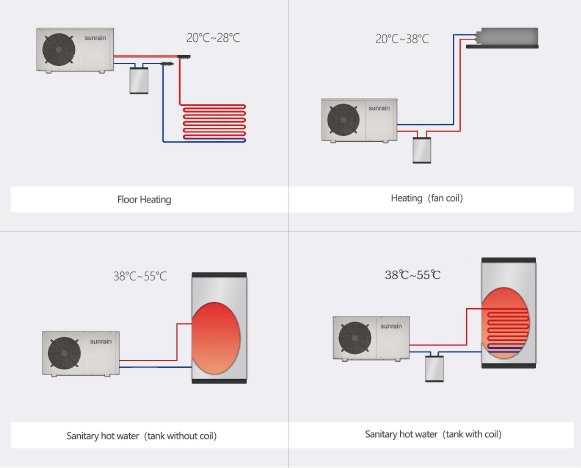

Application Modes
Operating Temperature Ranges
| Application | Temperature Range |
|---|---|
| Floor Heating | 20°C - 28°C |
| Fan Coil Heating | 20°C - 38°C |
| Sanitary Hot Water | 38°C - 55°C |
Installation & Connectivity
- Connection Interface
- Drain OutletUpper Circulation PortLower Circulation PortMaintenance Hole
