Reinforcing Cage Welding Machine

Reinforcing cage welding machines automate the production of steel cages used in construction. These machines ensure precise welding and consistent cage structures.

Request a Quote Download PDFPDF

Technical Specifications

Product Overview

High-Efficiency Cage Production

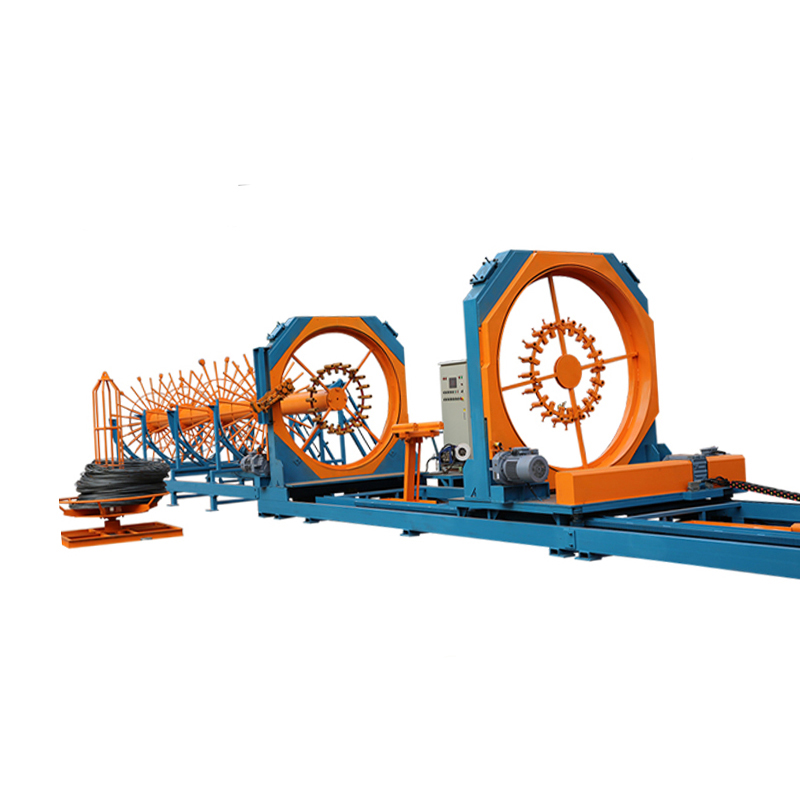

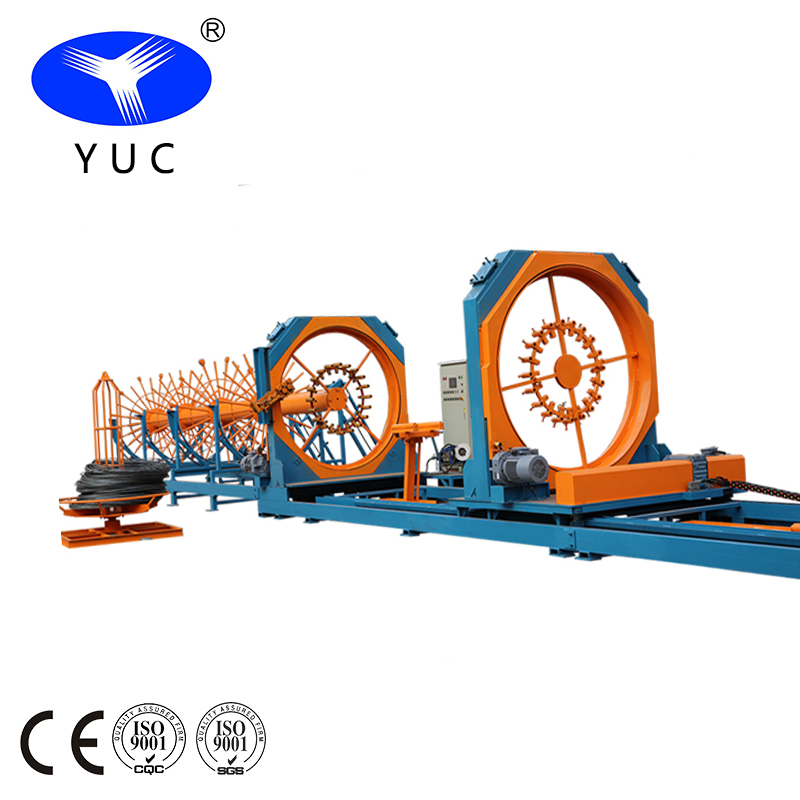

This CNC-controlled roller cage welding machine is engineered for the automated, high-precision production of reinforced concrete cages. It is widely used in infrastructure projects including high-speed railways, bridges, and highways, as well as in prefabricated concrete factories. The system offers intelligent operation, significantly reducing labor costs while ensuring consistent weld quality and structural integrity across various cage diameters.

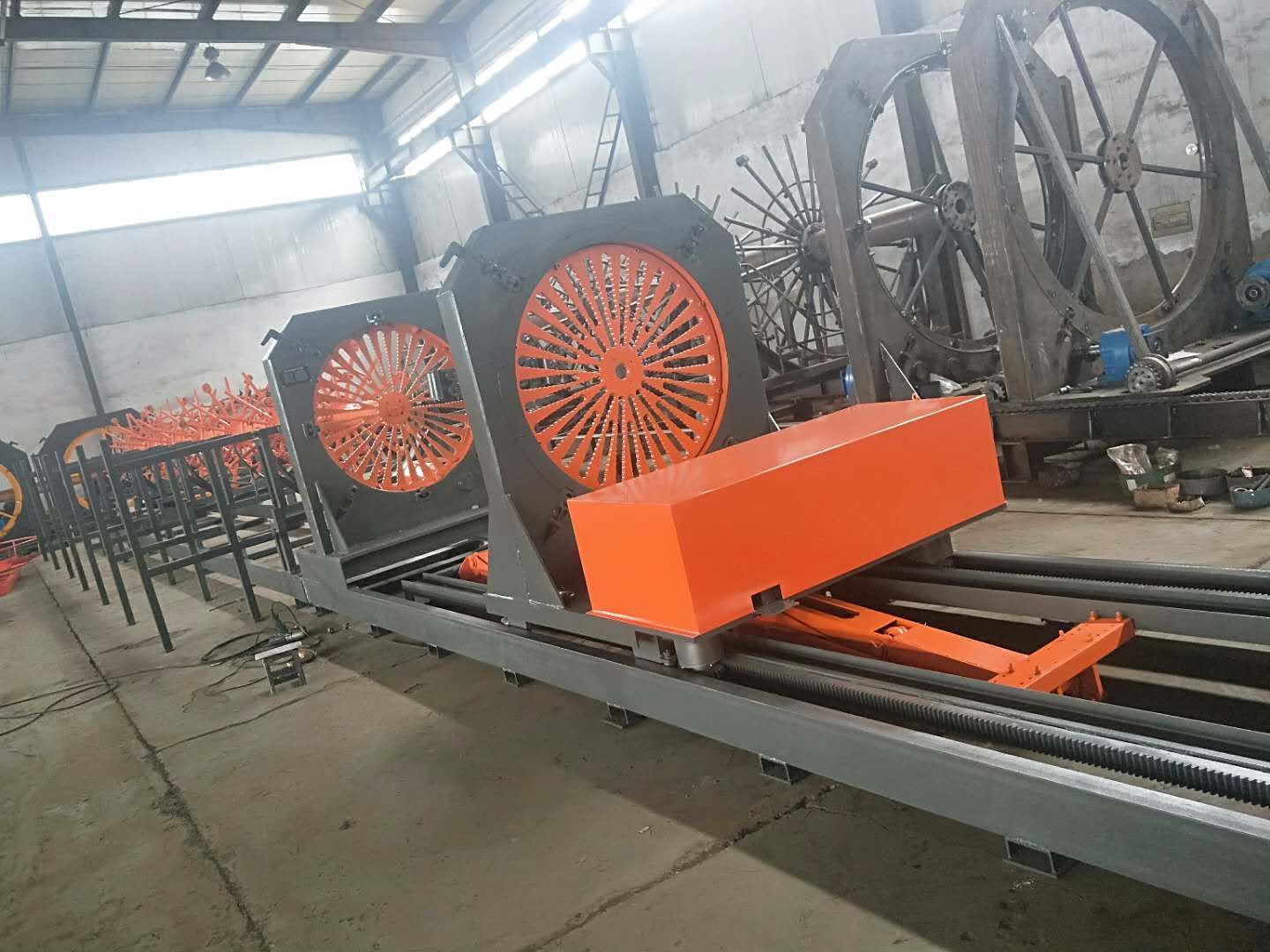

Automated steel wire cage welding machine setup — Front view of the automated CNC welding unit.

Technical Specifications

Model Specifications

Model	Cage Diameter Range
1000	Φ300-1000mm
1500	Φ500-1500mm
2000	Φ600-2000mm
2500	Consult factory for range

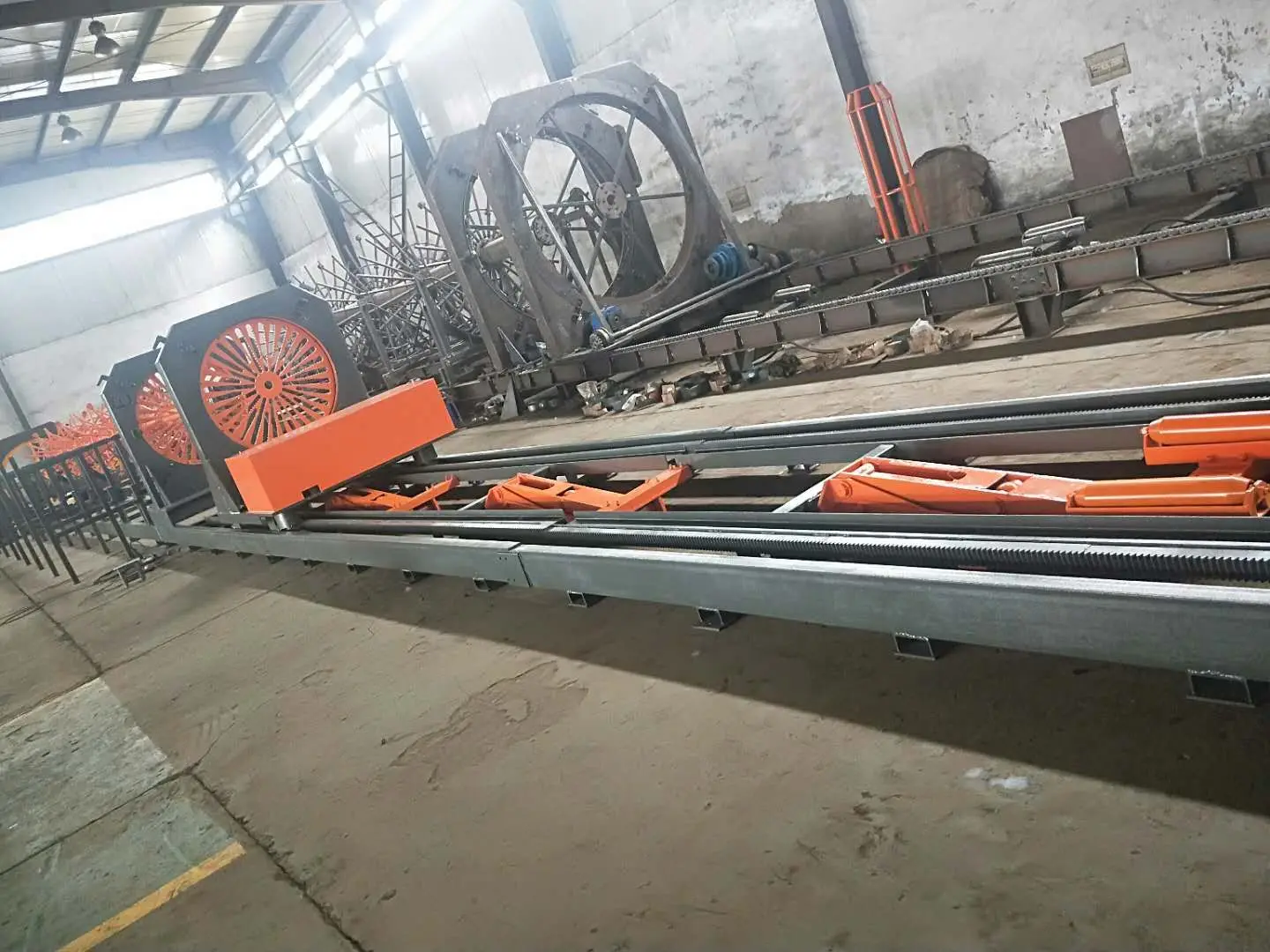

Close up of welding heads and control system — Integrated control system for precision parameter management.

Certifications

Standards & Compliance: CEISO 9001CQCSGS

Operational Features

Machine Capabilities

Automated welding parameter control
Continuous circumferential welding mechanism
Heavy-duty steel frame construction
Integrated safety enclosures and emergency stops
Adjustable pitch and cage diameter settings

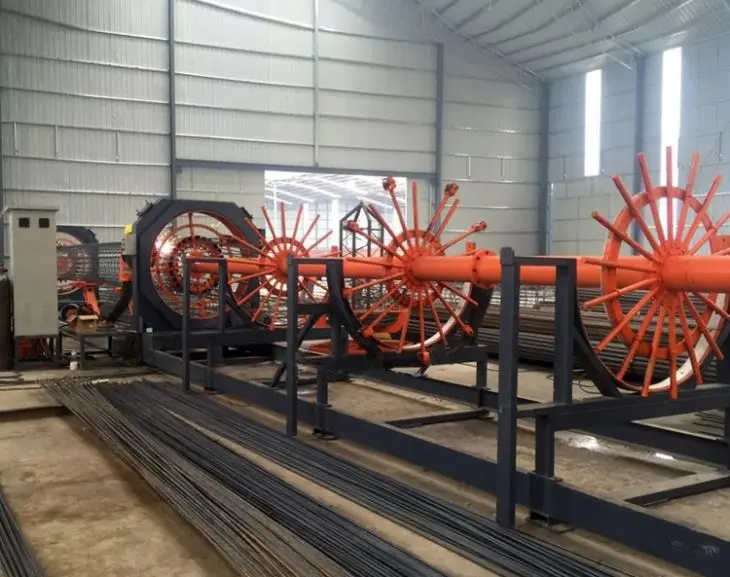

Automatic roller cage welding machine in operation — Automated assembly for consistent structural quality.
