Technical Specifications
Overview

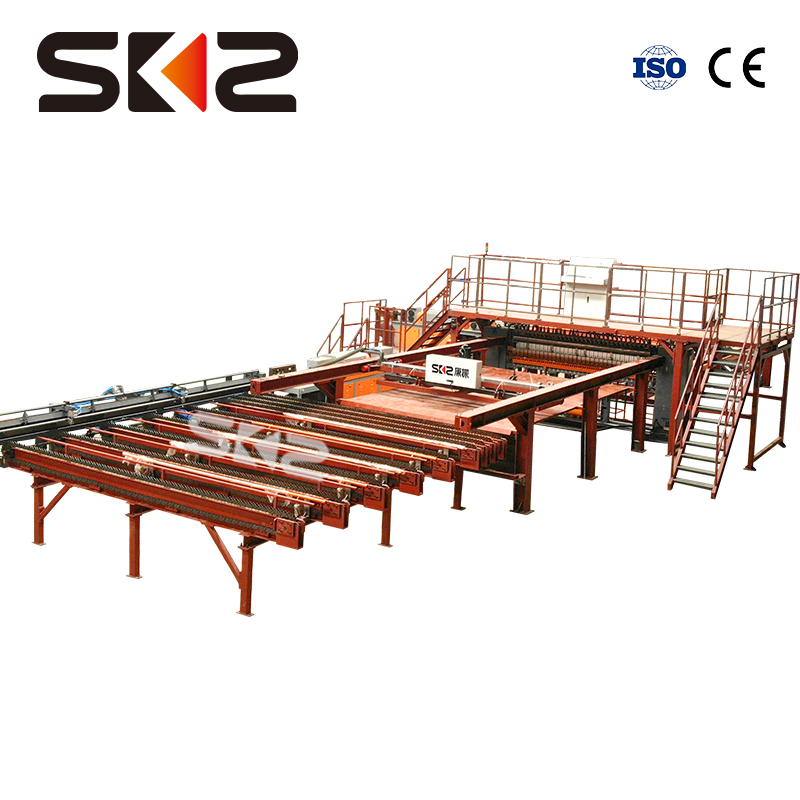

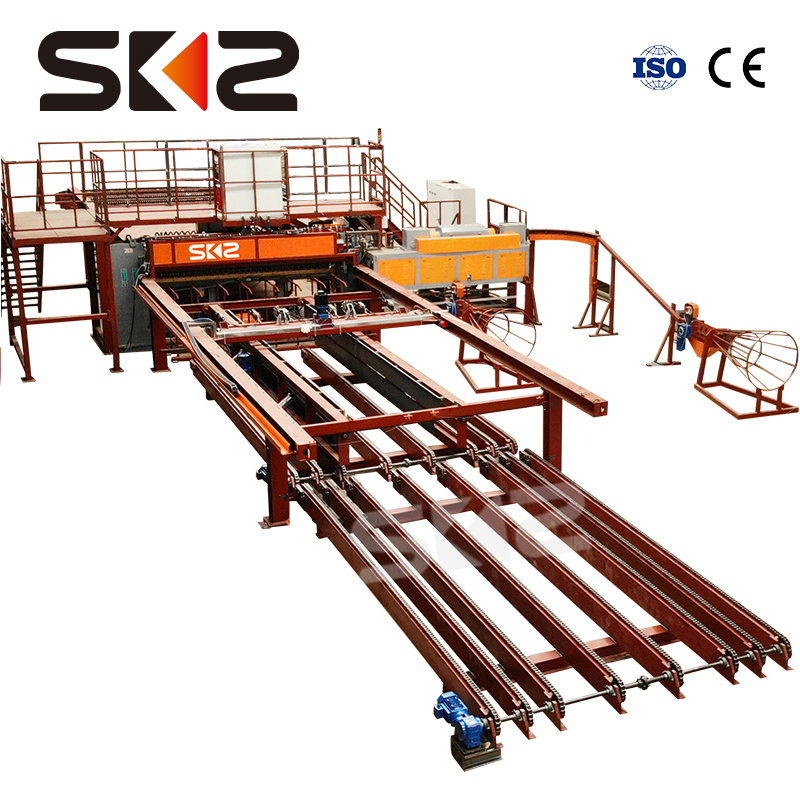

Automated Wire Mesh Welding Machine
This high-precision automated welding machine is designed for the efficient, high-volume production of wire mesh panels. It supports a wide range of materials, including low carbon, cold-drawn, and galvanized wire, making it suitable for fencing and construction reinforcement. With programmable controls and robust construction, it ensures consistent quality, energy efficiency, and low operating failure rates.
- Certifications
- CEISO
Welding Performance
Max Welding Capacity
12 mm
Max Wire Diameter
- Welding Speed
- 70 strokes/min
- Number of Welding Transformers
- 16
- Number of Electrodes
- 32
Technical Specifications
Mesh Dimensions
| Parameter | Value |
|---|---|
| Max Mesh Width | 3,300 mm |
| Max Mesh Length | 12 m |
| Line Wire Spacing | 100, 150, 200 mm |
| Cross Wire Spacing | ≥100 mm (Programmable) |
- Wire Diameter Range
- Φ5 – Φ12 mm
- Machine Dimensions
- 40m (L) x 5.5m (W) x 2.5m (H)
- Overall Weight
- 23000 kg
Power and Utilities
- Power Supply
- 380V / 50Hz / 3-Phase
- Total Installed Power
- 2560 KVA
- Air Consumption
- ≥0.8Mpa, 3m³/min
Features
Key Features
- Large output with high precision
- Energy-saving design
- Low operating failure rate
- Compatible with standard and perforated mesh
- Supports hot-rolled, cold-rolled, and round bars
