Reinforced Thermoplastic Pipe for Petrochemical Applications
This reinforced thermoplastic pipe is designed for high-pressure, corrosion-resistant applications. It features a multi-layer construction with polyolefin inner/outer layers and high-strength fiber reinforcement, suitable for temperatures from -50 to 145 ℃ and pressures up to 102MPa.
Technical Specifications
Product Overview

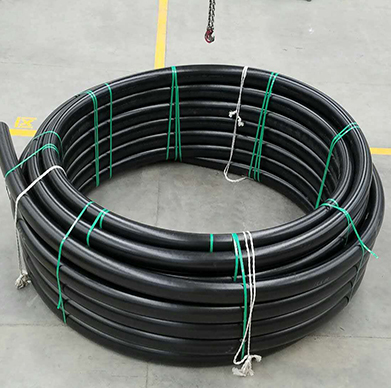

Reinforced Thermoplastic Pipe (RTP)
This advanced high-pressure composite pipe features a modular three-layer design consisting of a fluid sealing inner layer, a high-strength fiber-reinforced functional layer, and a protective outer shell. Engineered for extreme durability, it offers exceptional resistance to corrosion, wear, and harsh environmental factors. Its coilable nature and extended single-root lengths significantly reduce installation time and joint requirements for industrial fluid transport.
Technical Performance
- Maximum Pressure
- 102 MPa
- Operating Temperature
- -50 to 145 ℃
- Service Life
- 100 years
Key Features
Core Advantages
- Corrosion resistant inner and outer walls
- High wear resistance (5x better than steel)
- Excellent flexibility and impact resistance
- Non-toxic and environmentally friendly
- Superior flow capacity due to smooth inner wall
- Applications
- PetroleumNatural GasChemicalsMiningRefined OilHot Springs
Construction & Logistics
Connection Methods
- Single Root Length
- 150m to 1200m
