Refrigeration System Condenser Unit

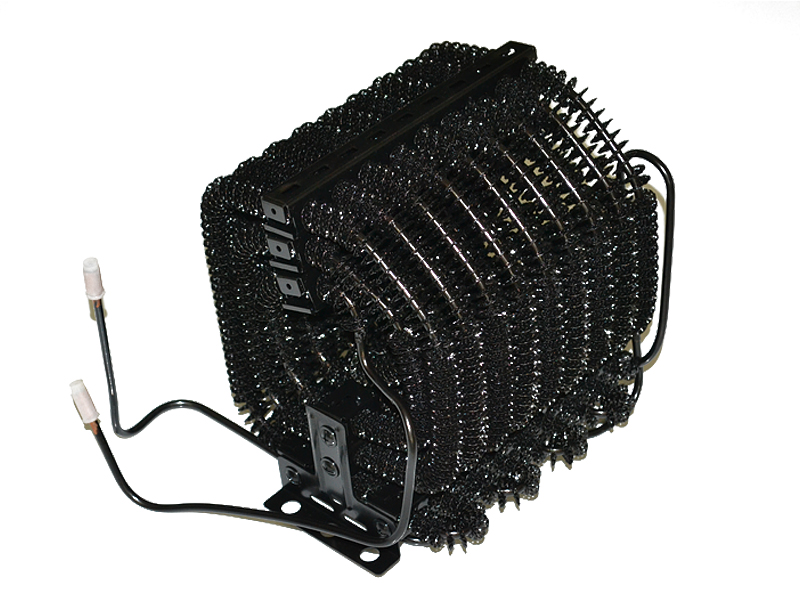

This condenser unit is designed for refrigeration systems to reject heat. It features multiple rows of coiled fins and connection tubes for efficient heat dissipation.
Technical Specifications
Product Overview
High-Efficiency Condenser Unit
This refrigeration condenser unit is engineered for optimal heat dissipation in refrigerators and freezers. Utilizing advanced steel strip winding and folding roll techniques, it ensures reliable performance and durability. The unit features a specialized cathodic electrophoretic coating for superior corrosion resistance, meeting rigorous industry standards for cleanliness and thermal efficiency.
Construction & Materials
Material Composition
- Condenser tube: Coil welded steel
- Support: Cold rolled plate (0.6-2.0mm thickness)
- Cold rolled steel strip (0.2-0.3mm thickness)
- Condenser Tube Specifications
- Coil welded steel tube 4.76mm x 0.71mm
- Structure Types
- Steel strip windingFolding roll type
Coating & Durability
Coating Performance Metrics
20 μm
Max Coating Thickness
72 hours
Salt Spray Resistance
Coating Specifications
| Property | Requirement |
|---|---|
| Hardness | ≥2H |
| Adhesion | ≥2 |
| Flexibility | R=3D, 180° bend (no cracking) |
| Impact Resistance | 50cmg.kg/cm |
Cleanliness Standards
Cleanliness Standards
| Contaminant | Maximum Limit |
|---|---|
| Residual Moisture | ≤5mg/100cm³ |
| Residual Impurities | ≤10mg/100cm³ |
| Residual Mineral Oil | ≤100mg/100cm³ |
| Residual Chloride Ion | ≤5vloppm |
| Residual Paraffin | ≤3mg/m² |
Refrigerant Compatibility
R134aCFC
