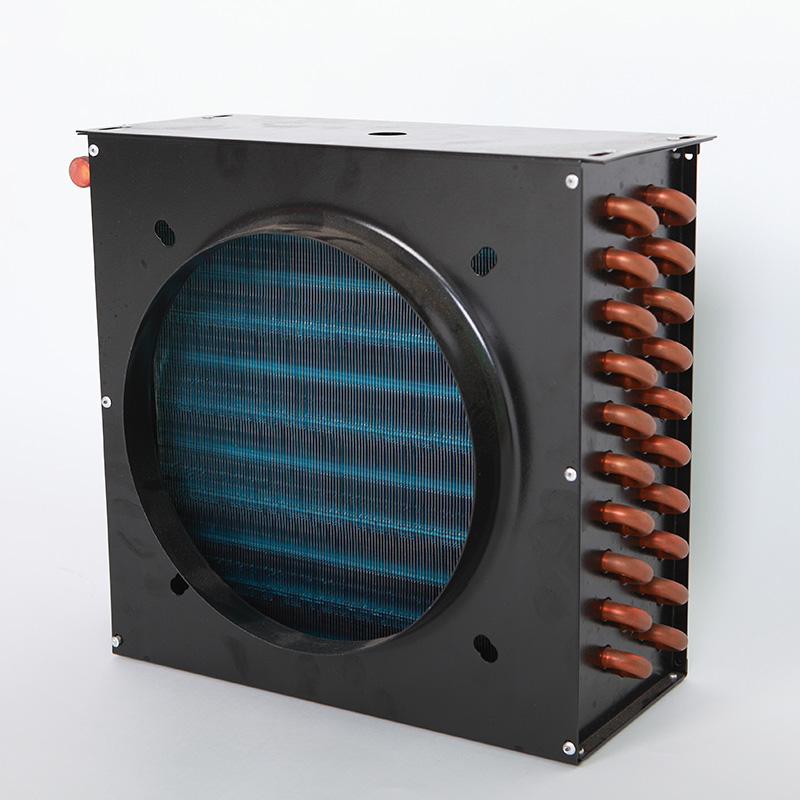

Refrigeration Condenser Coil
This condenser coil is designed for efficient heat dissipation in refrigeration systems. It features copper tubes and aluminum fins to optimize the heat exchange process.
Technical Specifications
Product Overview
High-Efficiency Refrigeration Condenser Coil
This industrial-grade refrigeration condenser coil is engineered for optimal heat transfer in air conditioning and cooling systems. It features a robust construction utilizing high-quality copper tubing and aluminum fins, ensuring durable performance and efficient thermal exchange. Designed with versatile configuration options, this component is suitable for a wide range of professional HVAC and refrigeration applications.
Materials
- Tube Material
- Copper (Inner smooth or inner grooved)
- Tube Wall Thickness
- 0.32–0.36 mm
- Fin Material
- Bare Aluminum FoilHydrophilic Aluminum FoilGreen Antibacterial Hydrophilic Aluminum FoilSilica Antibacterial Aluminum Foil
- Side Plate Material
- Galvanized SteelAluminiumStainless Steel
- Side Plate Thickness
- 0.8–1.5 mm
Technical Standards
Technical Specifications by Tube Diameter
| Tube OD (mm) | Hole Distance (mm) | Fin Types | Max Rows/Holes |
|---|---|---|---|
| 5 | 19.5x11.6 | Slit fin | 5 Rows, 46 Holes |
| 5 | 19.05x16.5 | Flat, Wave | 12 Rows, 40 Holes |
| 7 | 21x12.7 | Wave, Slit, Louver | 6 Rows, 36 Holes |
| 7 | 21x18.19 | Wave | 4 Rows, 46 Holes |
| 7 | 21x22 | Flat, Butterfly | 4 Rows, 36 Holes |
| 7.94 | 22x19.05 | Flat, Slit, Wave | 4 Rows, 46 Holes |
| 9.52 | 25.4x22 | Flat | 2 Rows, 36 Holes |
| 12.7 | 27.5x31.65 | Double Wave | 4 Rows, 28 Holes |
