Refrigerant Recovery Unit with High Recovery Rate
This refrigerant recovery unit is designed for efficient and reliable refrigerant recovery. It features user-friendly controls and is suitable for a variety of refrigerants.
Technical Specifications
Product Overview
High-Efficiency Refrigerant Recovery

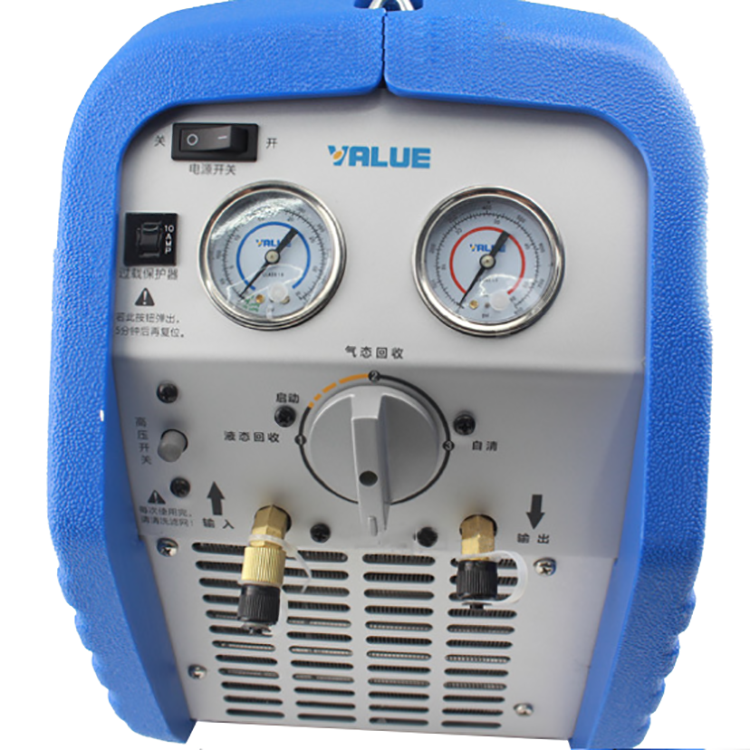

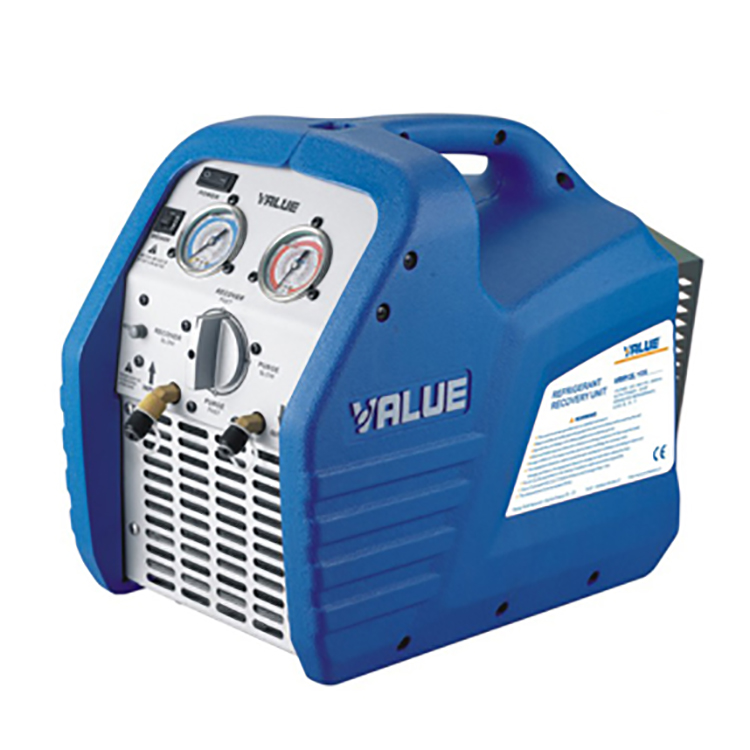

The VRR12L is a professional-grade refrigerant recovery unit engineered for HVAC/R technicians requiring reliable and fast performance. Featuring an oil-less, air-cooled piston compressor, it handles a wide array of Category 3, 4, and 5 refrigerants with high precision. Designed for safety and durability, this portable unit includes integrated automatic shut-off and high-pressure protection to ensure operational longevity in demanding field conditions.
Technical Specifications
Motor Power & Speed
0.75 HP
Motor Power
1,450 rpm
Motor Speed (50Hz)
1,750 rpm
Motor Speed (60Hz)
- Power Supply
- 220-240VAC~/50-60Hz / 115V~/60Hz
- Maximal Current Draw
- 4A / 8A
- Operating Temperature
- 0℃ to 40℃
Safety & Features
- Compressor Type
- Oil-lessAir-cooledPiston style
- Automatic Safety Shut-off
- 38.5 bar
Performance Data
Recovery Rates (kg/min)
| Category | Vapor | Liquid | Push/Pull |
|---|---|---|---|
| Cat 3 | 0.2 | 1.6 | 4.6 |
| Cat 4 | 0.25 | 1.8 | 5.6 |
| Cat 5 | 0.25 | 2.2 | 6.3 |
Compatible Refrigerants
Category 3
- R12
- R401C
- R134a
- R500
Category 4
- R22
- R401A
- R401B
- R402B
- R407C
- R407D
- R408A
- R409A
- R411A
- R411B
- R412A
- R502
- R509
Category 5
- R402A
- R404A
- R407A
- R407B
- R410A
- R507
